Ultra low-cost development tool for Kinetis MCUs

KWIKSTIK-K40
正常供应

滚动图片以放大

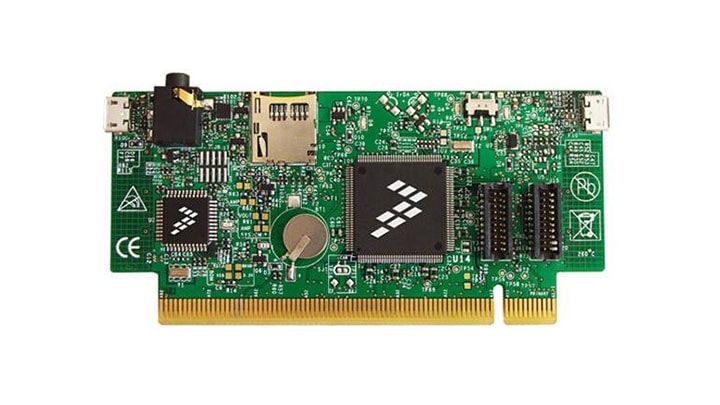

An ultra-low-cost, all-in-one development tool for evaluating, developing and debugging Kinetis® MCUs, the KWIKSTIK-K40 features the K40X256VLQ100 (144LQFP) MCU with USB, touch-sensing and segment LCD functionality.

  • It comes pre-flashed with demo software to exercise a small portion of the capabilities of the Kinetis K40X256 device and the KwikStik hardware
  • The on-board Segger™ J-Link™ debug interface allows you to evaluate the features of the on-board K40 MCU or to develop, debug and program your own target hardware based on any Kinetis MCU
  • The KWIKSTIK-K40 can be combined and used with several peripheral modules in the Tower® System; it can also be operated as a standalone debug tool

产品详情

支持的器件

处理器和微控制器

K1x主流产品

  • K10_100: Kinetis® K10-100 MHz，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核
  • K10_120: Kinetis® K10-120 MHz，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核
  • K10_50: Kinetis K10-50 MHz，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核
  • K10_72: Kinetis® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_100: Kinetis® K20-100 MHz, 全速USB, 混合信号集成微控制器，基于Arm® Cortex®-M4内核
  • K20_120: Kinetis® K20-120 MHz，全速USB，混合信号集成微控制器 (MCU)，基于Arm® Cortex®-M4内核
  • K20_50: Kinetis® K20-50 MHz, 全速USB, 混合信号集成微控制器，基于Arm® Cortex®-M4内核
  • K20_72: Kinetis® K20-72 MHz，全速USB，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核

K3x段式LCD

  • K30_100: Kinetis® K30-100 MHz，混合信号集成微控制器(MCU)，基于Arm® Cortex®-M4内核
  • K30_72: Kinetis K30-72 MHz, 混合信号集成微控制器(MCU)，基于Arm® Cortex®-M4内核

K4x USB和段式LCD

  • K40_100: Kinetis® K40-100 MHz，混合信号集成微控制器(MCU)，基于Arm® Cortex®-M4内核
  • K40_72: Kinetis® K40-72 MHz，混合信号微控制器(MCU)，基于ARM® Cortex®-M4内核

K5x测量

  • K50_100: Kinetis® K50-100 MHz，USB微控制器(MCU)，基于ARM® Cortex®-M4内核
  • K50_72: Kinetis® K50-72 MHz，USB微控制器(MCU)，基于ARM® Cortex®-M4内核

K6x以太网

  • K60_100: Kinetis® K60-100 MHz, 混合信号集成微控制器，基于Arm® Cortex®-M4内核
  • K60_120: Kinetis®K60 / 61-120-150 MHz，基于Arm® Cortex®-M4内核的混合信号集成和防篡改微控制器

K7x图形 LCD

  • K70_120: Kinetis® K70-120–150 MHz, 全速USB, 以太网, DDR和防篡改微控制器 (MCU)，基于Arm® Cortex®-M4内核

更多
