评估套件 - MM9Z1J638，带CAN/LIN的电池传感器

KIT9Z1J638EVM 正常供应

滚动图片以放大

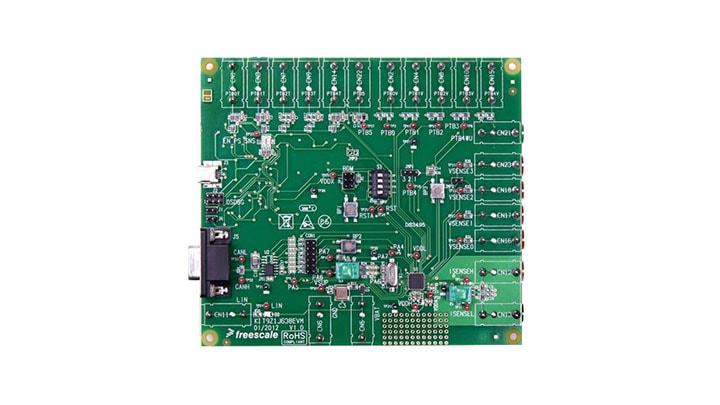

恩智浦KIT9Z1J638EVM是一款评估和开发套件，用于采用MCU的电流、电压和温度传感应用的快速原型设计。

  • KIT9Z1J638EVM是一款简单但精密的设计，配备带CAN和LIN的电池传感器。
  • 它采用MM9Z1J638，在单一封装解决方案中集成了S12Z MCU和SMARTMOS®模拟控制IC。
  • 参考4芯锂电池参考设计的一个示例，4电压、4温度和一个电流传感应用，可以用作其他传感应用。

支持的器件

电源管理

电池传感器

特征

连接

  • 嵌入式msCAN协议和外部高速CAN物理层(MC33901)
  • LIN接口
  • 可定制的通用IO，用于电压和温度感应
  • 支持通过USB Multilink连接BDM

电源管理

  • 宽电池电流测量范围；片上温度测量
  • 采用内部电阻分频器提供4个电池电压测量，采用外部电阻分频器提供最多5个直流电压测量。
  • 电压通道和电流通道间的测量同步
  • 低功耗模式，采用低电流工作

传感器

  • 5个内部传感器输入，为外部传感器供电

  • 嵌入式msCAN协议和外部高速CAN物理层(MC33901)
  • LED指示灯
  • 采用MC9S08JM60 MCU，通过开源OSBDM电路进行板载BDM连接

购买选项

KIT9Z1J638EVM-Image

点击展开

  • KIT9Z1J638EVM
    正常供应

  • Evaluation Kit - MM9Z1_638 Battery Sensor with CAN and LIN.

    • KIT9Z1J638EVM硬件
    • 线缆，USB A-M至B-M Mini
    • 快速参考指南
  • $242.65 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
