评估套件 - MC50XS4200，双高边开关

KIT50XS4200EKEVB
正常供应

滚动图片以放大

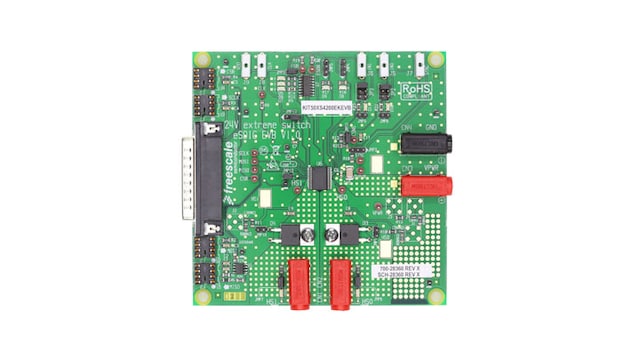

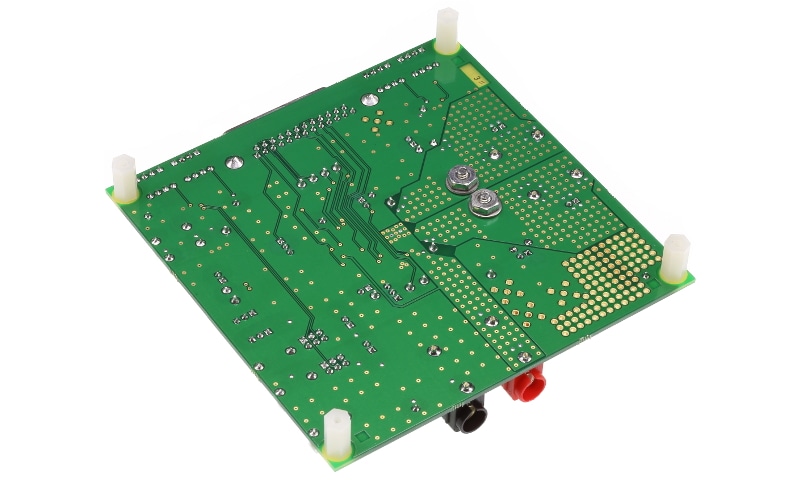

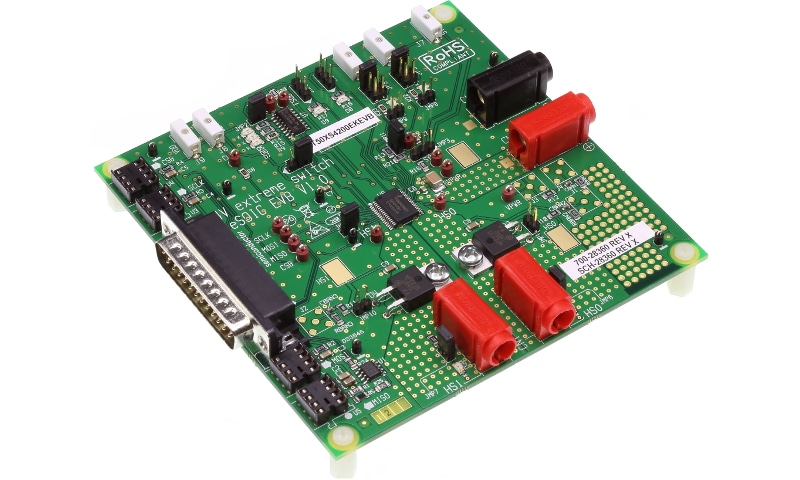

该eXtreme开关评估板演示了MC50XS4200作为一个24 V双高边开关产品时的功能，它提供集成式控制，并具有大量保护和诊断功能。

该产品适用于卡车、巴士和工业控制应用。低导通电阻通道(<40 mOhm)可控制不同的负载类型；灯泡、电磁阀或DC电机。控制、设备配置和诊断通过一个16位SPI (串行外设接口)执行，可以轻松集成至现有应用。外部/内部时钟信号或通过直接输入可独立控制这两个通道。使用外部时钟可完全自主地运行器件。

产品详情

支持的器件

电源管理

高边开关

  • MC24XS4: 24V多用途低导通电阻eXtreme开关

特征

电源管理

  • 输入电压工作范围为6.0到58 V

用户组件

  • 两个高边开关(每个< 50 mOhm导通电阻)
  • 编程、控制和诊断通过一个16位SPI接口完成
  • 通过可选择压摆率的输出，满足电磁兼容(EMC)要求
  • 通过内部PWM调制时钟信号控制每个输出，而不是通过外部时钟

购买选项

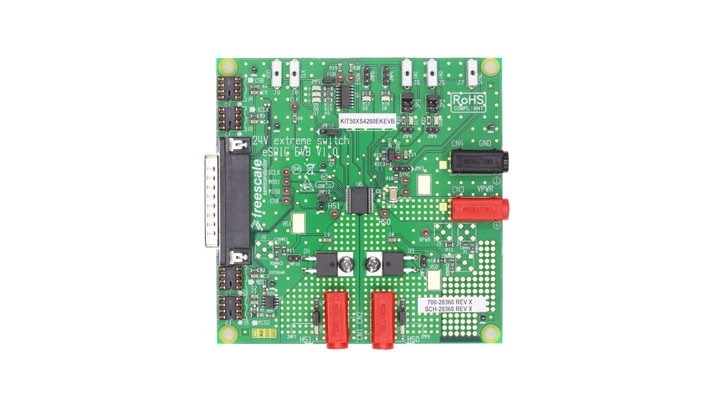

KIT50XS4200EKEVB-Image

点击展开

  • KIT50XS4200EKEVB
    正常供应

  • Evaluation Kit - MC50XS4200, Dual 24 V, 50 mOhm High Side Switch.

    • KIT50XS4200EKEVB硬件
    • 快速参考指南
  • 数量为 1
