评估套件 - MC20XS4200，双高边开关

KIT20XS4200EVBE 正常供应

滚动图片以放大

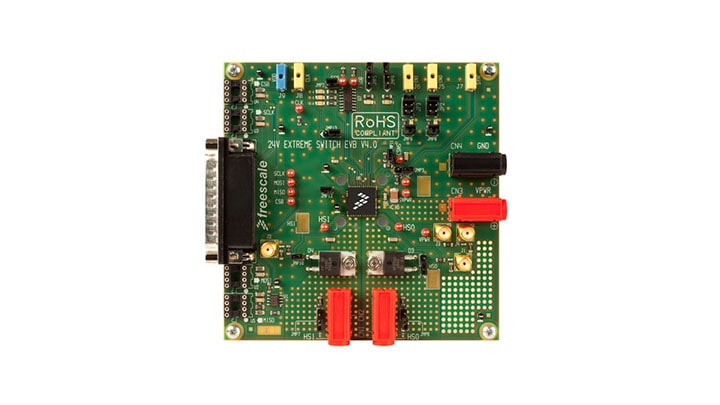

该eXtreme开关评估板演示了MC20XS4200作为一个24 V双高边开关产品时的功能，它提供集成式控制，并具有大量保护和诊断功能。

该产品适用于卡车、巴士和工业控制应用。低导通电阻通道(< 20 mOhm)可控制不同的负载类型；灯泡、电磁阀或DC电机。控制、设备配置和诊断通过一个16位SPI (串行外设接口)执行，可以轻松集成至现有应用。外部/内部时钟信号或通过直接输入可独立控制这两个通道。使用外部时钟可完全自主地运行器件。

支持的器件

电源管理

高边开关

  • MC24XS4: 24 V多用途低导通电阻eXtreme开关

特性

主要特性

  • 编程、控制和诊断通过一个16位SPI接口完成

数据连接

  • 通过可选择压摆率的输出，满足电磁兼容(EMC)要求
  • 通过内部PWM调制时钟信号控制每个输出，而不是通过外部时钟

电源管理

  • 输入电压工作范围为6.0到58 V

组件

  • Dual high side switches (each 20 mOhm RDS(ON))

购买选项

KIT20XS4200EVBE-Image

点击展开

  • KIT20XS4200EVBE
    正常供应

  • Evaluation Kit - MC20XS4200, Dual 24 V, 20 mOhm High Side Switch - Fact Sheet.

    • KIT20XS4200EVBE硬件
    • 快速参考指南
  • $92.46 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
