IMX-DSI-SDSB

IMX-DSI-SDSB 正常供应

滚动图片以放大

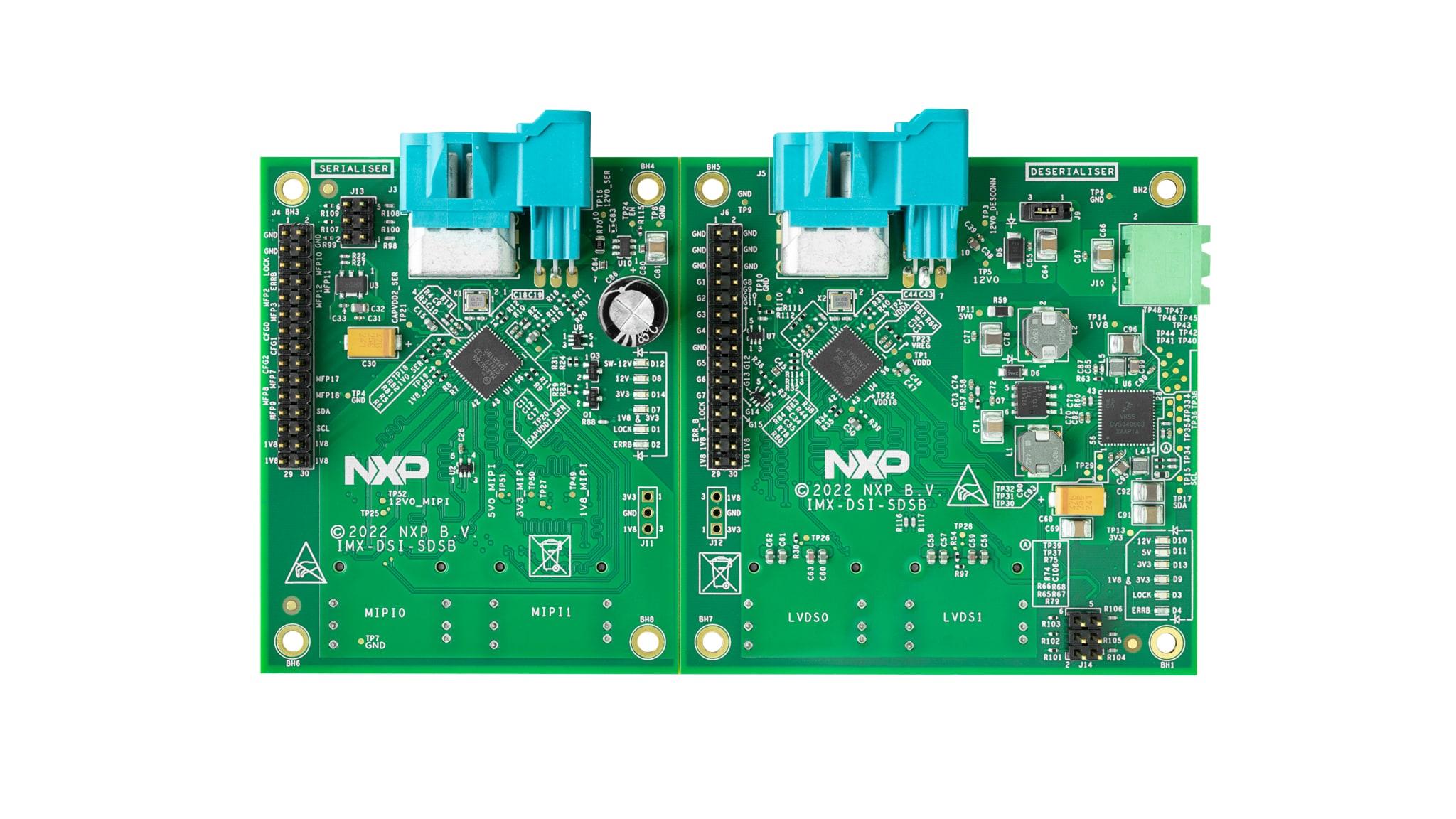

The IMX-DSI-SDSB is a MIPI-DSI SerDes accessory kit that consists of a serializer board and a de-serializer board. The serializer board converts dual MIPI DSI 4-lane input port data to dual GMSL1/2 high-speed serial link protocol, enabling transmission of video data over cables up to 15m in length. The de-serializer board then converts the GMSL1/2 signals to LVDS signals.

框图

IMX-DSI-SDSB

IMX-DSI-SDSB-BD
获取框图PDF

支持的器件

处理器和微控制器

i.MX9处理器

  • i.MX93: i.MX 93应用处理器系列——Arm® Cortex®-A55，ML加速，高能效MPU

Features

Serializer Board

  • MAX96789 based
  • Up to 3K (2880x1080/60Hz) over a single GMSL link
  • 2x MINI-SAS connector for dual 4-lane MIPI-DSI input port
  • H-MTD connector for GMSL1/2 port
  • Header for configure signals and GPIOs

De-serializer Board

  • MAX96752 based
  • 2x MINI-SAS connectors for dual 4-lane LVDS output port
  • H-MTD connector for GMSL1/2 port
  • Header for configure signals and GPIOs
  • Support external 12V supply

购买选项

IMX-DSI-SDSB-Image

点击展开

  • IMX-DSI-SDSB
    正常供应

  • i.MX Series Accessory Boards.

  • Kit Contains

    • 1x serializer board
    • 1x de-serializer board
    • 2x MINI-SAS cable
    • 1x H-MTD cable
  • $440.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
