面向MCR20A无线收发器的Freedom开发板

FRDM-CR20A
试生产

滚动图片以放大

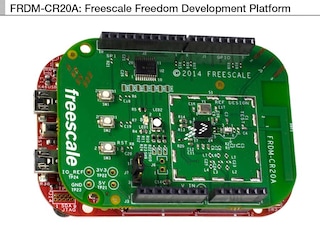

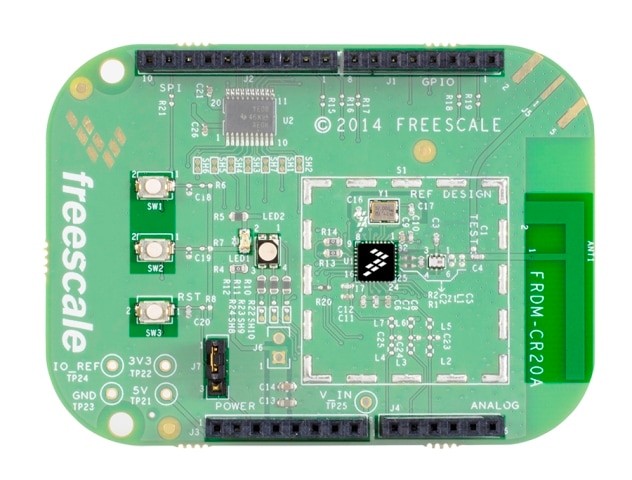

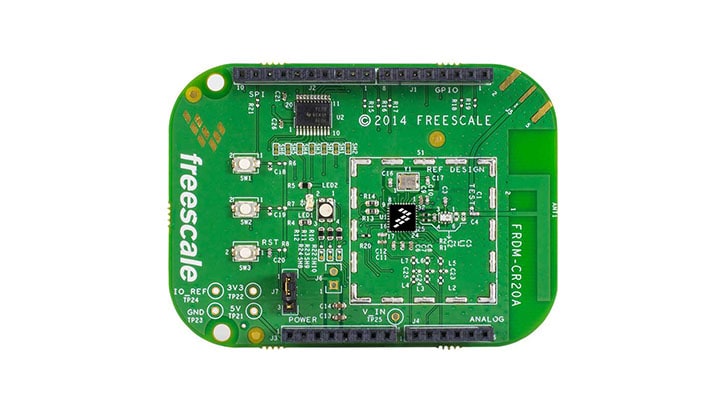

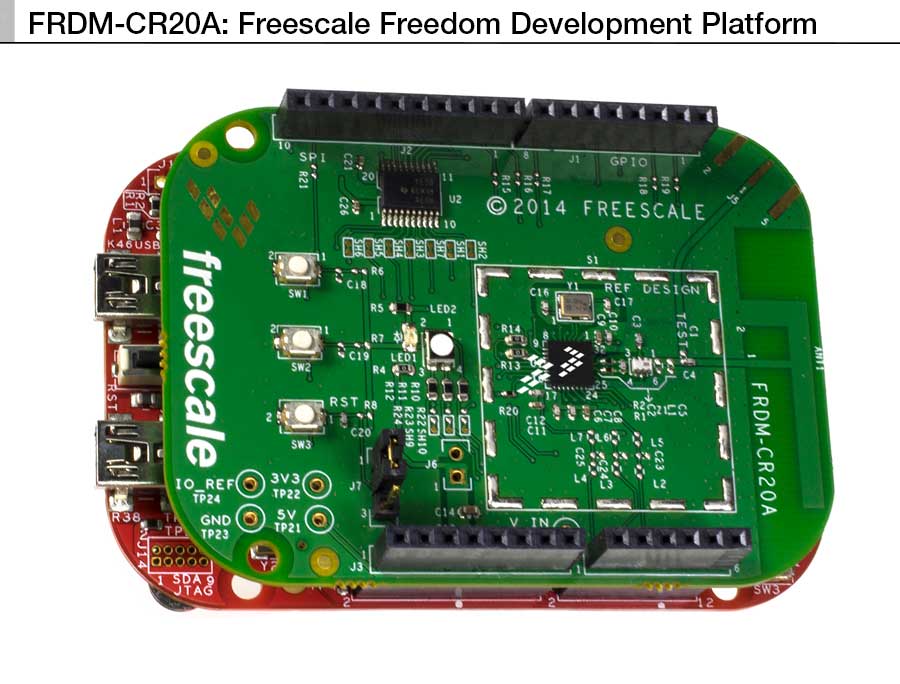

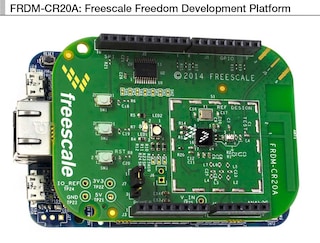

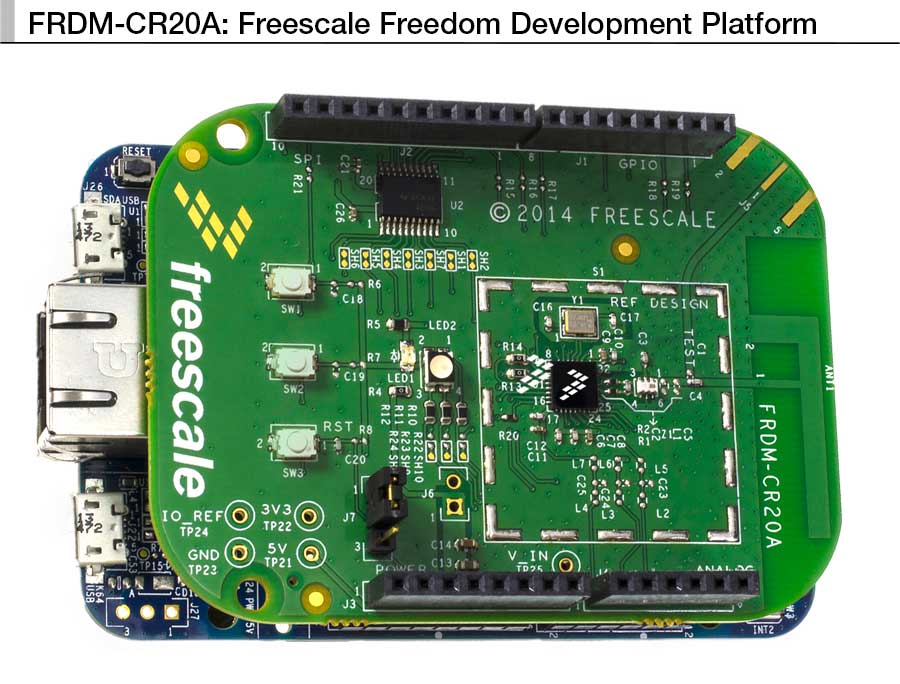

Freedom开发板平台支持MCR20A 2.4GHZ无线收发器。恩智浦FRDM-CR20A评估板是面向MCR20A收发器的小规格、低功耗和高性价比的参考设计，采用Shield规格，兼容现有的Freedom开发平台FRDM-K64F和FRDM-KL46Z。

产品详情

特征

微控制器

    MCR20AVHM

  • 低功耗
  • 符合IEEE 802.15.4的高性能2.4 GHz收发器

连接

  • PCB反向F型天线和SMA射频端口
  • 兼容Arduino®

电源管理

  • SMA接头处的可编程输出功率为-32 dBm至+8 dBm，无Trap
  • 接收器灵敏度：–102 dBm (典型值)

组件

  • 仅需极少的匹配组件和外部换衡器
  • 1 RGB LED指示灯
  • 2个按钮开关

支持

  • 支持Thread网络协议、SMAC和ZigBee®协议栈
N true 0 TSPFRDM-CR20Azh 4 参考手册 Reference Manual t877 1 应用笔记 Application Note t789 1 用户指南 User Guide t792 2 zh 1 1 0 English The FRDM-CR20A Freedom development board is a 2.4 GHz Industrial, Scientific, and medical (ISM) intended for the IEEE&#174; 802.15.4 Standard, including Thread and IPv6/6loWPAN protocols. The FRDM-CR20A contains the MCR20A transceiver that is typically combined with a software stack and a Kinetis MCU to implement an IEEE 802.15.4 standard platform solutions. 1428359860373722376733 TSP 2.0 MB None None documents Y None 1428359860373722376733 /docs/en/user-guide/FRDMCR20AUG.pdf 2031120 /docs/en/user-guide/FRDMCR20AUG.pdf FRDMCR20AUG N N 2015-04-14 FRDM-CR20A - User's Guide /docs/en/user-guide/FRDMCR20AUG.pdf /docs/en/user-guide/FRDMCR20AUG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Apr 6, 2015 User Guide t792 用户指南 User Guide Y N FRDM-CR20A - User's Guide false zh 1 2 11 English This document provides an introduction to the deployment and operation of the wireless network applications created using the ZigBee network protocol stack running on Kinetis KW2xD or Kinetis with MCR20A development platforms 1453288510990732363806 TSP 1.3 MB Registration without Disclaimer None documents Y Extended 1453288510990732363806 /secured/assets/documents/en/user-guide/KZSDAUG.pdf 1309966 /secured/assets/documents/en/user-guide/KZSDAUG.pdf KZSDAUG Y N 2016-10-31 Kinetis ZigBee Stack Demo Applications User's Guide /webapp/Download?colCode=KZSDAUG&docLang=en /secured/assets/documents/en/user-guide/KZSDAUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jan 19, 2016 User Guide t792 用户指南 User Guide Y N Kinetis ZigBee Stack Demo Applications User's Guide false zh 参考手册 Reference Manual 1 3 3 English The NXP ZigBee Test Client (ZTC) diagnostic tool allows extensive testing of the MAC and BeeStack<sup>&#174;</sup> protocol layer interfaces and for communication with a Host processor when using the BeeStack Black Box application. 1253030791962704856015 TSP 7.4 MB Registration without Disclaimer None documents Extended 1253030791962704856015 /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf 7386223 /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf BSBBZTCRM documents Y N 2016-10-31 BeeStack BlackBox ZTC Reference Manual /webapp/Download?colCode=BSBBZTCRM&lang_cd=zh /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Jan 18, 2016 500633505221135046 Reference Manual Y N BeeStack BlackBox ZTC Reference Manual 应用笔记 Application Note 1 4 0 English This application note describes Printed Circuit Board&#13;&#10;(PCB) design considerations for the MCR20A 41-pin&#13;&#10;Land Grid Array (MLGA) package. Included are layouts of the component copper layer, solder mask, and solder paste stencil. These recommendations are guidelines only and may need to be modified depending on the assembly house used and the other components on the&#13;&#10;board. 1437715242513701954686 TSP 911.5 KB None None documents None 1437715242513701954686 /docs/en/application-note/AN5003.pdf 911507 /docs/en/application-note/AN5003.pdf AN5003 documents N N 2016-10-31 Hardware Design Considerations for MCR20A IEEE® 802.15.4 Devices /docs/en/application-note/AN5003.pdf /docs/en/application-note/AN5003.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 23, 2015 645036621402383989 Application Note Y N Hardware Design Considerations for MCR20A IEEE® 802.15.4 Devices false 0 FRDM-CR20A downloads zh-Hans true 0 Y TSP 参考手册 1 /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf 2016-10-31 1253030791962704856015 TSP 3 Jan 18, 2016 Reference Manual The NXP ZigBee Test Client (ZTC) diagnostic tool allows extensive testing of the MAC and BeeStack<sup>&#174;</sup> protocol layer interfaces and for communication with a Host processor when using the BeeStack Black Box application. Registration without Disclaimer /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf English documents 7386223 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=BSBBZTCRM&lang_cd=zh BeeStack BlackBox ZTC Reference Manual /secured/assets/documents/en/reference-manual/BSBBZTCRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N BeeStack BlackBox ZTC Reference Manual 7.4 MB BSBBZTCRM N 1253030791962704856015 应用笔记 1 /docs/en/application-note/AN5003.pdf 2016-10-31 1437715242513701954686 TSP 4 Jul 23, 2015 Application Note This application note describes Printed Circuit Board&#13;&#10;(PCB) design considerations for the MCR20A 41-pin&#13;&#10;Land Grid Array (MLGA) package. Included are layouts of the component copper layer, solder mask, and solder paste stencil. These recommendations are guidelines only and may need to be modified depending on the assembly house used and the other components on the&#13;&#10;board. None /docs/en/application-note/AN5003.pdf English documents 911507 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5003.pdf Hardware Design Considerations for MCR20A IEEE® 802.15.4 Devices /docs/en/application-note/AN5003.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Hardware Design Considerations for MCR20A IEEE® 802.15.4 Devices 911.5 KB AN5003 N 1437715242513701954686 用户指南 2 /docs/en/user-guide/FRDMCR20AUG.pdf 2015-04-14 1428359860373722376733 TSP 1 Apr 6, 2015 User Guide 用户指南 The FRDM-CR20A Freedom development board is a 2.4 GHz Industrial, Scientific, and medical (ISM) intended for the IEEE&#174; 802.15.4 Standard, including Thread and IPv6/6loWPAN protocols. The FRDM-CR20A contains the MCR20A transceiver that is typically combined with a software stack and a Kinetis MCU to implement an IEEE 802.15.4 standard platform solutions. Y None /docs/en/user-guide/FRDMCR20AUG.pdf English 2031120 None User Guide 2023-06-19 N /docs/en/user-guide/FRDMCR20AUG.pdf FRDM-CR20A - User's Guide /docs/en/user-guide/FRDMCR20AUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 0 N N FRDM-CR20A - User's Guide 2.0 MB FRDMCR20AUG N 1428359860373722376733 /secured/assets/documents/en/user-guide/KZSDAUG.pdf 2016-10-31 1453288510990732363806 TSP 2 Jan 19, 2016 User Guide 用户指南 This document provides an introduction to the deployment and operation of the wireless network applications created using the ZigBee network protocol stack running on Kinetis KW2xD or Kinetis with MCR20A development platforms Y Registration without Disclaimer /secured/assets/documents/en/user-guide/KZSDAUG.pdf English 1309966 None User Guide 2023-06-18 Y /webapp/Download?colCode=KZSDAUG&docLang=en Kinetis ZigBee Stack Demo Applications User's Guide /secured/assets/documents/en/user-guide/KZSDAUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 11 Y N Kinetis ZigBee Stack Demo Applications User's Guide 1.3 MB KZSDAUG N 1453288510990732363806 true Y Tools
