触摸传感平台评估板

EVBCRTOUCH 正常供应

滚动图片以放大

Ready Play®解决方案根据不同的应用来集成功能，使客户能够在降低成本的前提下增加多种功能，简化设计周期并使应用和系统能够自由扩展。

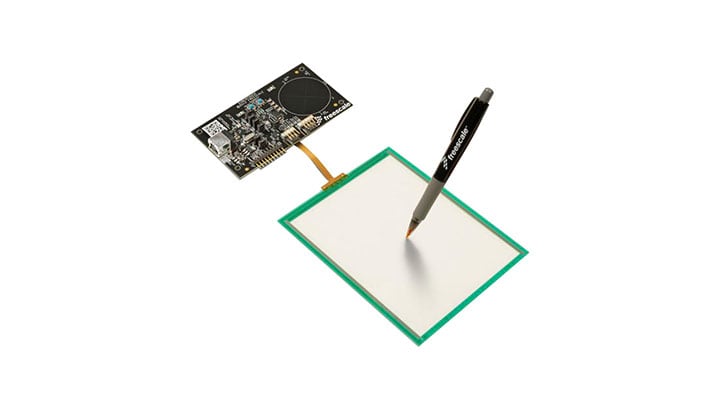

EVBCRTOUCH是一个低成本的开发板，能够快速连接任意标准4线和5线电阻屏。该电路板具有4个电容电极能够让信号快速升高。该电路板还提供一个USB-串行桥，可以通过USB连接到任意主处理器或PC机。

产品详情

特征

  • 标准的X、Y电阻触摸屏检测，带校准(可选)
  • 4线和5线上提供压力检测
  • 16个示例FIFO，带水印
  • 单点触摸唤醒，两点触摸，动作或电容电极活动
  • 事件和触摸指示灯(用于主机处理器)

手势检测

  • 滑动
  • 两点拉近或拉远
  • 两点旋转

独立于触摸屏的电容电极

  • 键盘
  • 转轮
  • 滑块

数据连接

    I²C和UART通信

  • 两个可选的I²C从站地址
  • UART波特率自动检测机制

电源管理

  • 低功耗

支持

  • Linux® and Android® integration example code available

购买选项

EVBCRTOUCH-Image

点击展开

  • EVBCRTOUCH
    正常供应

  • DevCRTouch Play Sol.

    • EVBCRTOUCH电路板
      • 4线接头
      • 5线接头
      • 4 个电容电极
    • 电阻屏
    • USB线缆
    • 快速入门指南
  • 数量为 1
