12 V Lead-Acid Battery Sensor with CAN

RD9Z1-638-12V-C 正常供应

滚动图片以放大

The RD9Z1-638-12V is a battery management system built to demonstrate the MM9Z1J638 Battery Sensor IC capabilities in a 12 V lead-acid application where high EMC performance is required to obtain high accuracy measurements on key battery parameters.

框图

Lead-acid Battery

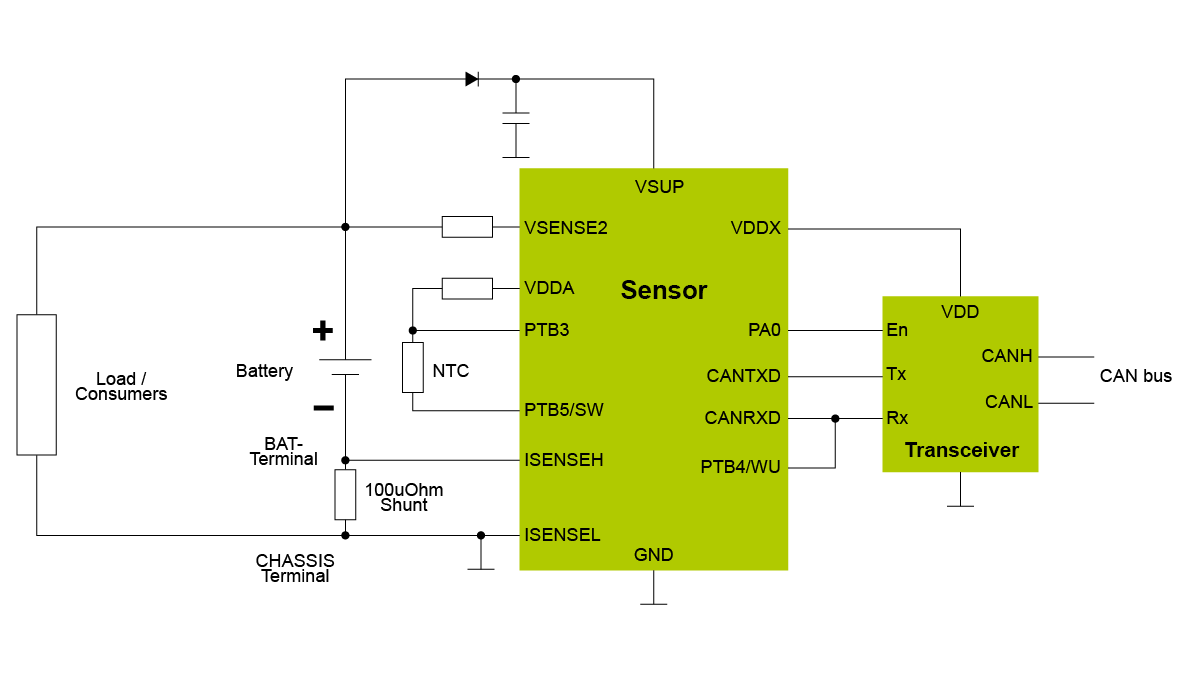

RD9Z1-638-12V CAN Block Diagram
获取框图PDF

支持的器件

电源管理

电池传感器

接口

3.3V/5V IO CAN收发器

  • TJA1042: 具有待机模式的高速CAN收发器

Features

Magni V S12Z

  • Embedded S12Z microcontroller with:
    • 128 KB on-chip flash with ECC
    • 4.0 KB on-chipEEPROM with ECC
    • 8.0 KB on-chip SRAM with ECC

Power Management

  • Embedded power management
  • Reverse polarity protection with a Schottky diode

Sensors

  • Precision battery voltage sensing
  • Precision shunt-based battery current sensing
  • On-board NTC for battery temperature sensing
  • Internal (chip) temperature sensing

Interfaces

  • CAN Interface
  • BDM interface (for MCU programming and debugging)
