NXP's
MR-VMU-RT1176
is a compact, all-in-one vehicle management unit (VMU). Powered by the i.MX
RT1176 crossover MCU, it features a dual-core Arm® Cortex®-M7/M4, an
integrated sensor suite and extensive connectivity options to accelerate
development for engineers building next-generation systems.
Challenges Facing Mobile Robotics Designers
Mobile robotics is a notoriously complex design challenge, where engineers
must balance real-time control, sensor fusion, and high-speed communication in
one system. Traditional designs require integrating multiple discrete
components including microcontrollers (MCUs), Inertial Measurement Units
(IMUs), Global Navigation Satellite System (GNSS) modules and networking
interfaces, leading to cumbersome architectures and extended development
cycles.
Engineers face several challenges when designing mobile robotic systems. One
of the most demanding aspects is real-time processing, as control loops,
sensor fusion, and autonomous decision-making require low-latency execution.
Many MCUs struggle to balance high computational performance with real-time
constraints, forcing engineers to rely on multiple processors or external
accelerators, which adds complexity.
Integration is another consideration, as a mobile robot requires precise
coordination between its processing unit, IMUs, GNSS modules, motor
controllers, and networking interfaces. In traditional designs, engineers must
manually integrate and synchronize these components, which increases
development time and the risk of incompatibilities.
Reliable communication is equally important. VMUs must relay sensor data and
actuator commands with minimal delay to guarantee stable, predictable
movement. However, many systems rely on legacy protocols or lack support for
robust, low-latency networking solutions like CAN FD or automotive Ethernet.
Finally, developers rely heavily on software from open-source ecosystems, such
as PX4, Zephyr RTOS, and Cognipilot, which provide the necessary middleware
and frameworks for real-time control. However, integrating these with custom
hardware configurations often requires extensive development effort.
Solving Mobile Robotics with MR-VMU-RT1176
The
MR-VMU-RT1176
directly addresses all these challenges with a single, compact module
solution.

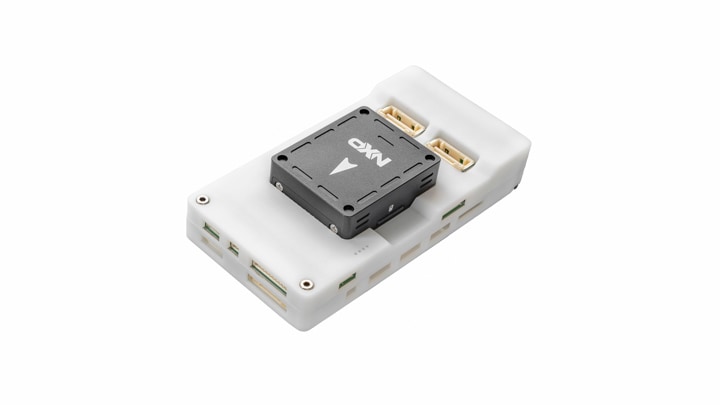

The MR-VMU-RT1176 is a compact, lightweight vehicle management unit solution
designed for mobile robotics.
Processing Capabilities
The MR-VMU-RT1176 is built around the
i.MX RT1176 crossover MCU, which is designed to handle the demanding computational needs of mobile
robotics. Its dual-core architecture features a Cortex-M7 (1 GHz) for
high-performance real-time tasks such as control loops, sensor fusion, and AI
inference, while the Cortex-M4 (400 MHz) efficiently manages background
processing and reduces the load on the primary core. With 64 MB of external
flash and 2 MB of RAM, the system provides ample memory for firmware execution
and real-time data processing.
MR-VMU-RT1176 block diagram
Comprehensive Sensor Suite
The MR-VMU-RT1176 integrates a comprehensive sensor suite that unlocks precise
motion tracking and environmental awareness in robotics systems. The suite
includes:
- BMI088 6-axis IMU for accurate motion sensing
- BMM150 and IST8310 magnetometers for heading and orientation estimation
- Dual BMP388 barometers for altitude and pressure sensing
- Dual ICM-42688 6-axis IMUs for additional redundancy and accuracy in motion
tracking
Half of these sensors reside on an internally attached IMU board so engineers
can easily swap updated sensors into future system revisions.
Connectivity and Interface Options
Engineers need flexible communication options to integrate VMUs with motors,
sensors, and networking modules. The MR-VMU-RT1176 offers:
- USB-C 2.0 connector and JST-GH pin header for high-speed data transfer
- Multiple UART, I2C, and SPI ports for connecting external peripherals
- 12 PWM outputs for direct control of actuators, servos, and motors
- Triple CAN FD with Signal Improvement Capability (SIC)
- 100Base-T1 Automotive Ethernet for high-bandwidth data exchange
- RC Input for compatibility with SBUS-compatible receivers for remote control
Since these connectors follow Dronecode standards, engineers can access a vast
ecosystem of off-the-shelf, pluggable components that work effortlessly with
the MR-VMU-RT1176.
Developer Experience and Software Ecosystem
The MR-VMU-RT1176 is built for easy integration with open-source real-time
operating systems and robotics frameworks. For example, it supports Zephyr
RTOS, a lightweight modular system designed for real-time embedded
applications. The system supports Cognipilot for autonomous robotics, which
provides a Zephyr-based autopilot platform. The unit also runs NuttX RTOS, a
POSIX-compliant OS known for its robust real-time processing, and PX4 , a widely used flight control software for UAVs and mobile robots.
Notably, PX4 is complemented by QGroundControl, a ground station software for
mission planning, GPS waypoint management, telemetry, and mapping. It runs on
laptops, Android devices, and custom hardware and allows for comprehensive
system control from virtually anywhere.
How Developers Can Get Started
Setting up the MR-VMU-RT1176 with Zephyr RTOS is straightforward, thanks to its upstream support in the Zephyr repository.
- Download pre-configured firmware from NXP’s repositories.
-
Use the Zephyr build system to compile and flash custom applications. Since
support is fully integrated into Zephyr, developers simply follow the
standard Zephyr open-source instructions and select the MR-VMU-RT1176 as the
target platform.
-
Leverage Cognipilot’s framework for autopilot and autonomous system
development.
A New Future for Mobile Robotics
Mobile robotics is a challenging design field, but it doesn’t have to remain
that way. The MR-VMU-RT1176 offers engineers a compact, powerful solution that
combines high-performance processing, integrated sensors, and extensive
connectivity options in a modular design. With pre-built firmware, Zephyr
documentation, and NXP’s developer resources, getting started is simple.
Explore the MR-VMU-RT1176 product page today and start building the next generation of mobile robotics.
