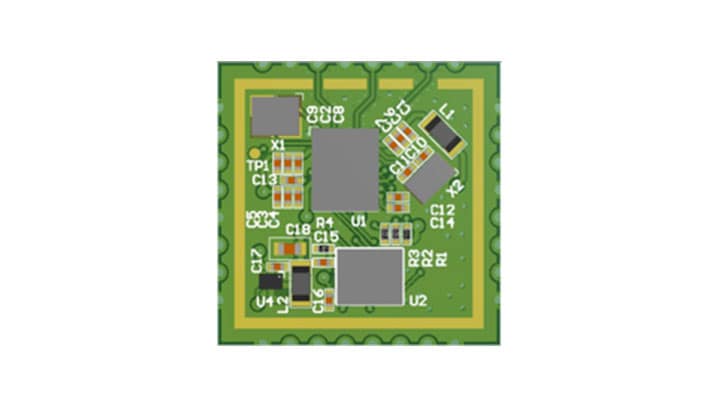

Trimension™ SR040 UWB Module: Murata Type 2DK

UWB-MURATA-TYPE2DK

滚动图片以放大

Built upon NXP's SR040 Ultra-Wideband (UWB) transceiver IC and QN9090 Bluetooth® LE IC, this Murata module is ideally suited for UWB Tag/Tracker that operates by coin-cell battery and general IoT devices. This module features integrated UWB / Bluetooth LE onboard antenna and support coin-cell battery operation with low power consumption. The Murata Type2DK UWB module can be used with Murata Type2BP EVK to perform ranging tests.

支持的器件

无线连接

Trimension®超宽带

  • SR040: Trimension™ SR040：面向物联网标签的安全超宽带解决方案

低功耗蓝牙

  • QN9090-30: QN9090/30(T): Bluetooth LE MCU带有Arm®Cortex®-M4 CPU, 高能效的模数外设以及NFC标签选项

Features

Size

  • 19.6mm x 18.2mm x 2.3mm

Main Components in Module

  • SR040
  • QN9090
  • UWB and RTC crystal
  • Band Pass Filter

Host Interface

  • UART

Other Interfaces

  • SWD

Secure Element Interface (yes/no)

  • No

Antenna

  • Onboard UWB/BLE Antenna
