TDA5051A PLM演示板套件

OM13313
正常供应
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

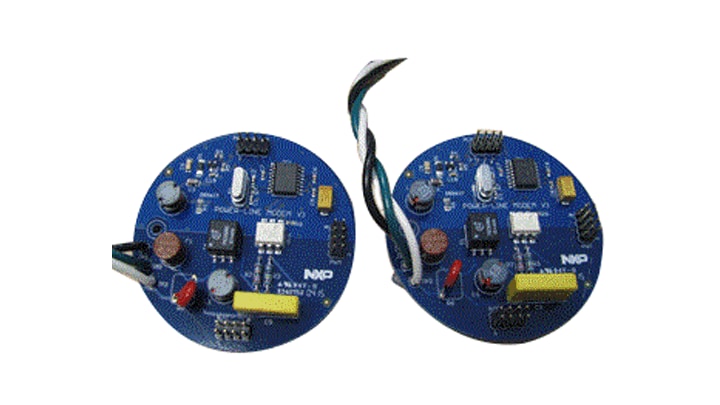

TDA5051A演示板套件用于评估开发平台。

产品详情

特征

Power Management

  • Fully integrated output power stage with overload protection
  • SO16 plastic package
  • Few external components for low-cost applications
  • Easy compliance with EN50065-1 with simple coupling network
  • Modulation/demodulation frequency set by clock adjustment, from microcontroller or on-chip oscillator
  • High clock rate of 6-bit digital-to-analog converter for rejection of aliasing components
  • 8-bit analog-to-digital converter and narrow digital filtering
  • Full digital carrier generation and shaping
  • Digital demodulation delivering baseband data

购买选项

OM13313-Image

点击展开

  • OM13313
    正常供应

  • TDA5051A PLM demo board kit.
