单芯片16位/32位微控制器；512 kB Flash，带32段 x 4 LCD驱动器

LPC2157FBD100
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

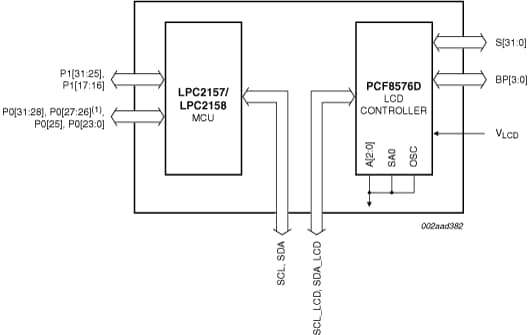

LPC2157/2158是多芯片模块，由LPC2138/2148单芯片微控制器和PCF8576D通用LCD驱动器组成，采用低成本100引脚封装。LCD驱动器提供32个光段并支持1到4个背板。通过采用带有地址自增功能的片内显示RAM，显示开销得以降到最低。详细信息分别参见LPC2148和LPC2138用户手册。

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

计算机辅助设计模型

运行频率[最高]（MHz）

Flash (kB)

RAM (kB)

GPIO

USB Controllers

UART

I2C

SPI

ADC通道

ADC位数

定时器

Timer (bits)

RTC

PWM

封装类型

温度范围

电源电压[最小]（V）

电源电压[最大]（V）

状态

LPC2157FBD100
数据手册

60

512

40

32

1

2

1

1

14

10

3

32

1

6

LQFP100

-40 °C to +85 °C

3

3.6

停产
