Single-Cell Li-Ion/Li-Polymer Battery Travel Charger
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
The MC34674 is a fully integrated single-cell Li-Ion and Li-Polymer battery charger optimized for travel charger applications. The few external components required include a dual-color LED for charge-status indication, a negative-temperature-coefficient (NTC) thermistor circuit for setting the charge temperature window and two decoupling capacitors.
The MC34674 tolerates an input voltage up to 28 V, which allows low-cost ac/dc converters to be used for further system-cost reduction. A charge cycle of the MC34674 includes trickle, constant-current (CC) and constant-voltage (CV) charge modes. The CC-mode current is selectable from 50 mA to 1.05 A, with 10% accuracy and the constant-output voltage in the CV-mode is fixed at 4.2 V.
The MC34674 has many features such as trickle charging for a deeply-discharged battery, an internal timer for termination to prevent charging a failed battery, charger current thermal foldback for thermal protection and smart battery-connection verification to prevent charging in case there is no battery connected. It has a 2.6 V falling power-on-reset (POR) threshold, making it ideal to work with current-limited power supplies. When the charger is disabled, the BAT pin leaks less than 1 µA current from the battery.

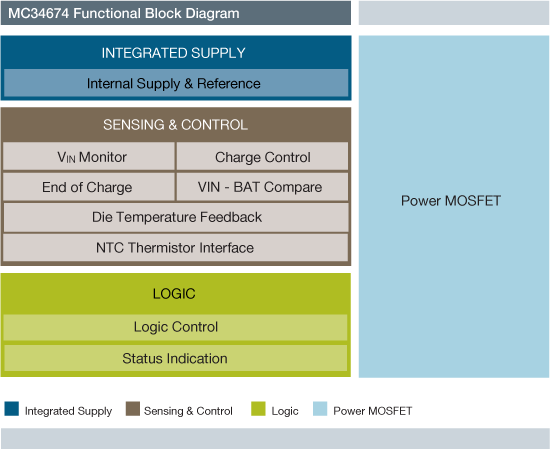

Freescale MC34674 Product Image
产品详情
Features
- No external MOSFET, reverse-blocking diode or current-sense resistor are required
- 28 V maximum input voltage rating with 11 V over-voltage-protection threshold
- Factory programmable charge current
- Trickle charge for fully discharged batteries
- ±0.4% voltage accuracy over -20 °C to 70 °C
- Driving a dual-color LED and smart battery-connection verification optimized for travel charger applications
- Interface to NTC thermistor
- Internal timer and thermal current limit
- Small 8-lead 2X3 mm thermally enhanced UDFN package
