简单型双线总线缓冲器

PCA9525DP
停产

滚动图片以放大

PCA9525是一款单片CMOS集成电路，适用于I²C总线、SMBus、DDC、PMBus及其他基于类似原理的系统应用中的总线缓冲。

该缓冲器可扩展总线负载限制，方法是缓冲SCL和SDA线路，从而使缓冲器两侧实现可允许的最大总线电容。

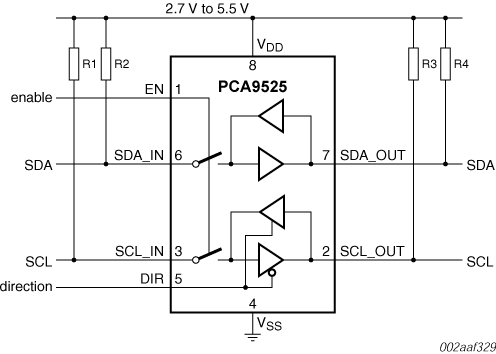

PCA9525包括一个用于时钟信号的单向缓冲器和一个用于数据信号的双向缓冲器。因此，不支持用于部署时钟延伸的从器件。

在其最基本的实施中，缓冲器允许将延伸的从器件连接至一个（或多个）主器件。在此情况下，所有主器件均置于PCA9525的Sxx_IN侧。

方向引脚(DIR)进一步增强了此功能，因为它允许保留单向时钟信号，从而允许主器件位于缓冲器的两侧。

使能(EN)功能允许隔离总线扇区。可以使系统的各个部分相继上线。这意味着可以轻松控制各种组件的启动、工作速度和负载。

产品详情

特征

  • 简单阻抗隔离缓冲器，适合于双线式总线
  • 4 mA最大静态开漏下拉功能，支持宽范围的总线标准
  • 使用I²C总线（标准模式、快速模式）、SMBus（标准和高功率模式）和PMBus
  • 快速切换时间允许在超过1 MHz频率的条件下操作
  • 启用允许将总线区段断开
  • 输入迟滞提供抗噪性
  • 工作电压范围：2.7 V至5.5 V
  • 极低电源电流
  • 满足大多数常用双线总线应用的快速安装需要

目标应用

  • 电子信息和显示
  • 游戏机/盒
  • 游戏机网络
  • 电视/投影仪/显示器互连(DDC)
  • 电源管理系统
  • 台式和便携式电脑
  • 安全系统
