PCA8565BS
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

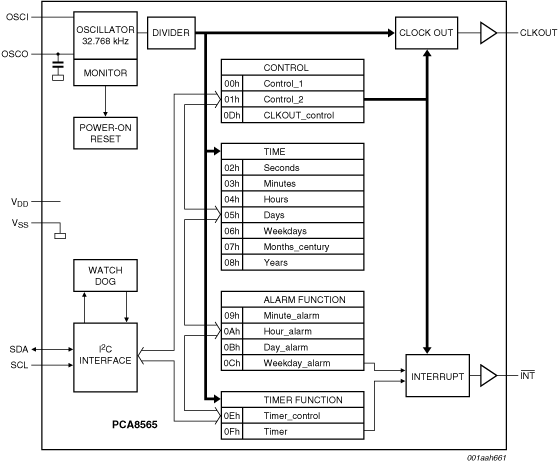

PCA8565是一款CMOS实时时钟和日历，适合低功耗应用。还提供可编程时钟输出、中断输出和电压过低检测器。通过两线双向I²C总线串行传送所有地址和数据。最大总线速度为400 kbit/s。每次写入或读取数据字节后会自动递增内置字地址寄存器。

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

计算机辅助设计模型

状态

PCA8565BS
数据手册

替换部件: PCA8565TS

停产
