QorIQ® Qonverge BSC9132 QDS for Picocell Base Station Development

BSC9132QDS
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

Archived content is no longer updated and is made available for historical reference only.

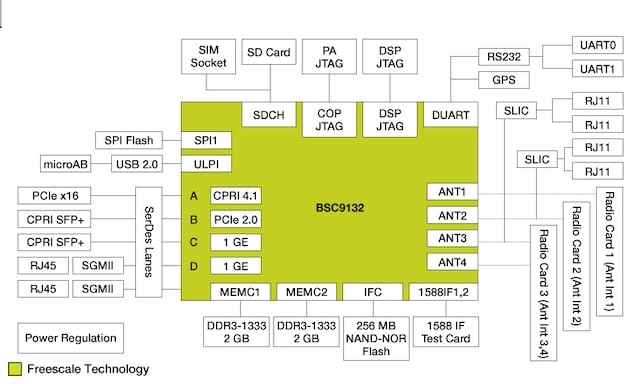

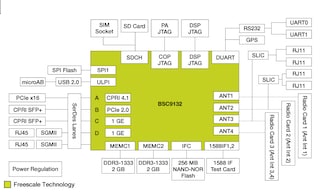

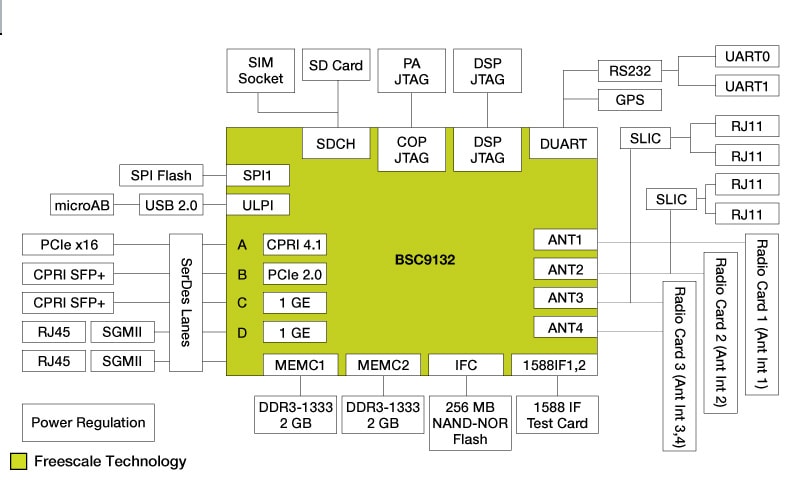

QorIQ® Qonverge BSC9132开发系统(BSC9132 QDS)可为微微小区基站和运行于L3层以上的基站应用开发L1、L2和L3协议栈。

The integrated BSC9132 SoC is targeted for picocell base stations in the small cell base station market and combines the e500 Power Architecture® CPU and SC3850 StarCore® DSP with MAPLE-B2P baseband acceleration processing elements. 三者结合一起可提供高性能、高性价比的集成解决方案，解决微微小区基站的所有处理需求。

产品详情

特征

内核复合体

  • Two e500 Power Architecture® processors with 512 KB shared L2 cache running at up to 1.2 GHz
  • 两个StarCore® SC3850 DSP，每个都带有512 KB专用L2缓存，运行频率高达 1.2 GHz

数据连接与联网

  • 两个千兆以太网RJ45插孔，带SGMII互联
  • PCI Express® x16 socket
  • TDM interfaces via four RJ11 jacks or two 6-pin test headers
  • 两个CPRI SFP+接头
  • 3个JESD207接头用于TDD 或FDD RF子卡

存储器系统

  • 两个Bank的2 GB DDR3 ，1333 MHz
  • 256 MB NAND/NOR闪存

基本外设和互连

  • SIM卡插槽，支持3V和1.8V (B类和C类)
  • USB 2.0，微型AB接口
  • GPS 天线SMA连接器
  • SD卡插槽
  • 2 RS-232 DB-9 connectors
  • IEEE® 1588 support card interface

其他特性

  • 经过FCC认证
  • ATX规格

软件

  • VortiQa®LTE和WCDMA L1软件
  • SmartDSP OS
  • Linux® BSP
  • 面向网络的VortiQa软件
  • CodeWarrior®
