接近电容式触摸传感器控制器

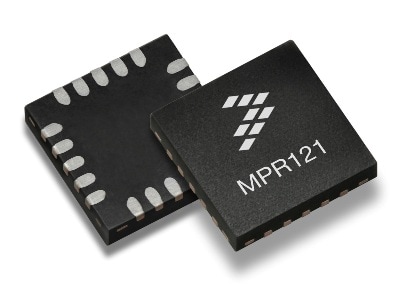

MPR121

滚动图片以放大

MPR121是继MPR03x系列器件之后的第二代传感器控制器。除了恩智浦第二代电容检测引擎，MPR121还具有更多的内部智能。一些主要的增强功能包括增加了电极数，通过硬件配置I2C地址，带去抖功能的扩展过滤系统以及内置自动配置功能的完全独立的电极。该器件还具有第13个模拟电极，表示所有电极都可以连接在一起同时充电，在一个触摸板或触摸屏幕阵列上实现增强的接近检测。

产品详情

特征

  • 1.71 V-3.6 V工作电压
  • 29 μA电源电流，提供受监控的12个电极，64 ms响应时间，且启用IRQ
  • 3 μA关机电流
  • 12个电极
  • 针对每个电极输入的持续独立的自动校准
  • 每个电极有分开的触摸和释放跳闸阈值，提供独立滞后和电极
  • I2C接口，提供可选的IRQ输出，通知电极状态更改
  • 3 mm x 3 mm x 0.65 mm 20引线QFN封装
  • LED驱动器功能，提供最多8个LED
  • 工作温度范围：-40° C 至+85° C
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证10年供货
