Programmable Angle Sensor
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

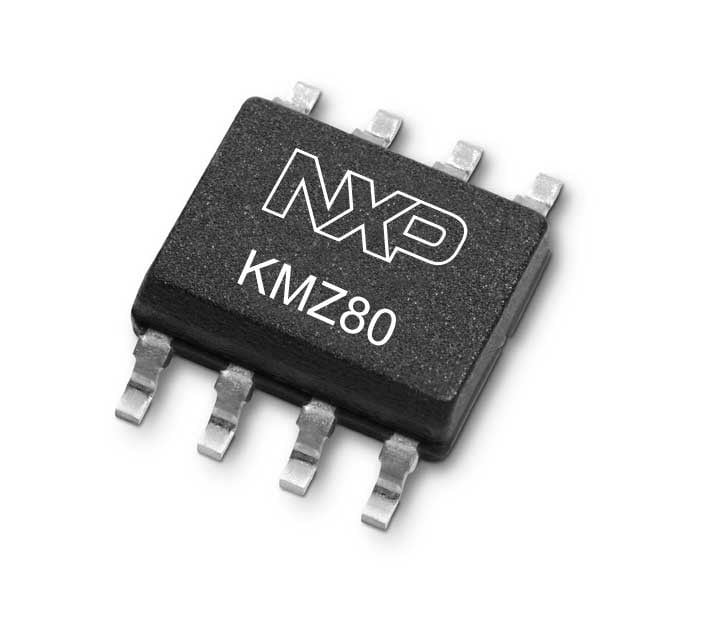

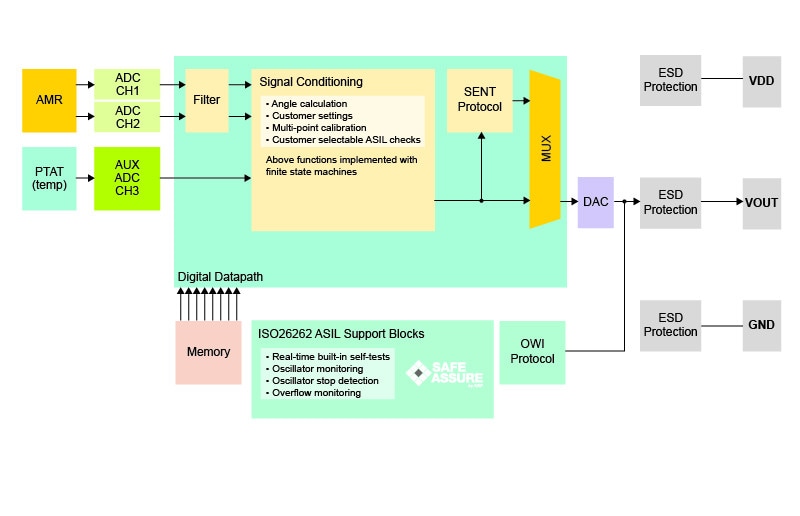

The KMZ80 is an AMR based magnetic angle sensor. The sensor allows the user-specific definition of angular range, zero angle position, and clamping voltages.
The settings are stored permanently in a non-volatile memory (NVM). The programmable angle sensor is pre‑programmed, pre-calibrated and therefore, ready to use.
The sensor is developed to ISO26262 and fulfills ASIL B(Analog) or ASIL C(SENT).
产品详情
Features
Key Features
- AEC-Q100 qualified automotive angle sensor
- Based on AMR technology, highly accurate
- SAE J2716 SENT and ratiometric analog output
- Support of ISO 26262, support up to ASIL C with SENT output
- Programmable user adjustment, e.g zero angle and angle range
- Multipoint calibration with 17 equidistant or seven selectable calibration points to enable linearity improvement and flexibility in application
- 8 × 12-bit customer memory space for easy traceability
- Robust for working magnetic field strength above 25 kA/m
- No upper field strength limit, effective increased stray field suppression capability
