PowerQUICC®处理器带CPM (1 SCC、2 SMC)、10/100以太网

MPC857T 停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

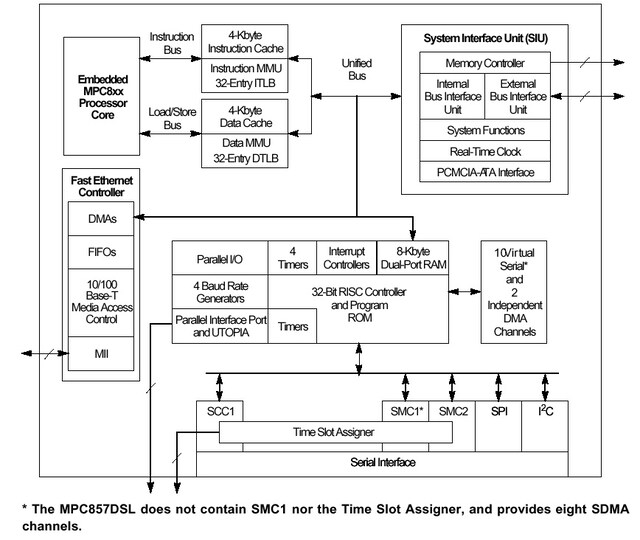

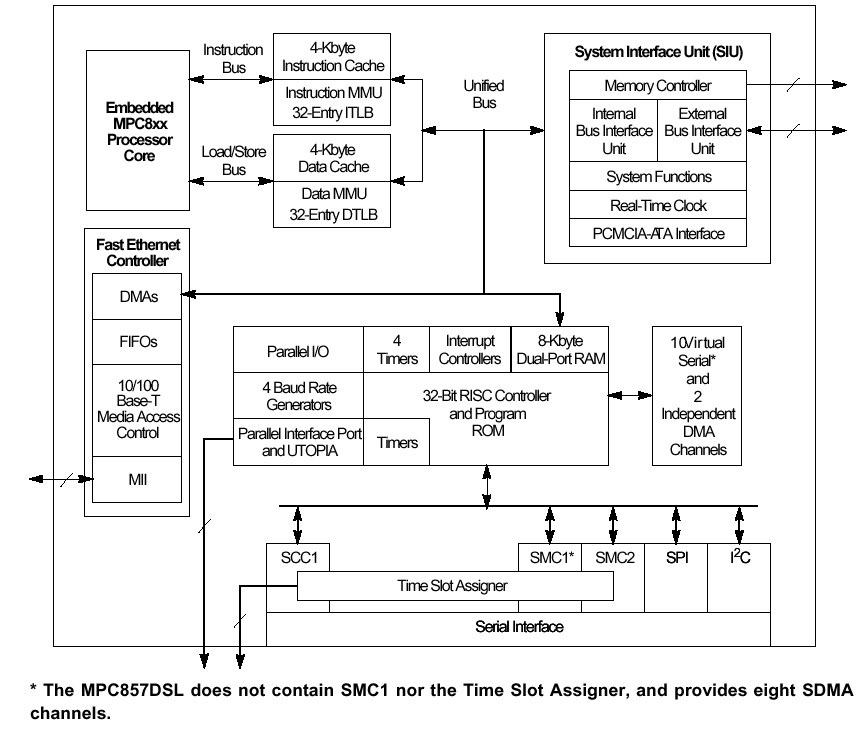

MPC857T PowerQUICC™集成通信处理器，组合了多功能片上集成微处理器和外设，适用于多种控制器应用。特别适用于通信和网络系统。

MPC857T基于Power Architecture，是恩智浦®半导体MPC860 PowerQUICC™集成通信处理器的衍生产品。MPC859T的嵌入式CPU是基于Power Architecture技术的32位处理器(MPC8xx内核)，结合了存储器管理单元(MMU)和指令及数据缓存。MPC860 PowerQUIC®的通信处理器模块(CPM)通过增加I²C控制器通道，增强了性能。增强了存储控制器后，MPC857T能够支持任何类型的存储器，包括高性能存储器及新型DRAM。PCMCIA插槽控制器最多支持两个插槽。此外，还集成了一个实时时钟。

N true 0 PSPMPC857Tzh 30 产品简介 Product Brief t532 1 参考手册 Reference Manual t877 4 封装信息 Package Information t790 1 应用笔记 Application Note t789 18 应用笔记软件 Application Note Software t783 5 数据手册 Data Sheet t520 1 zh zh zh 数据手册 Data Sheet 1 1 3 English This document contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing specifications for the MPC862/857T/857DSL family.&#13;&#10; R989423460237 PSP 1.3 MB None None documents None R989423460237 /docs/en/data-sheet/MPC862EC.pdf 1330313 /docs/en/data-sheet/MPC862EC.pdf MPC862EC documents N 2001-05-09 MPC862/857T/857DSL PowerQUICC<sup>&#174;</sup> Family Hardware Specifications /docs/en/data-sheet/MPC862EC.pdf /docs/en/data-sheet/MPC862EC.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Feb 10, 2006 980000996212993340 Data Sheet Y N MPC862/857T/857DSL PowerQUICC<sup>&#174;</sup> Family Hardware Specifications 参考手册 Reference Manual 4 2 3.4 English This errata describes corrections to the MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family&#13;&#10;Reference Manual, Revision 3. 115t0PdH PSP 438.1 KB None None documents None 115t0PdH /docs/en/reference-manual/MPC862UMAD.pdf 438065 /docs/en/reference-manual/MPC862UMAD.pdf MPC862UMAD documents N 2003-04-11 Errata to MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family Reference Manual, Rev. 3 /docs/en/reference-manual/MPC862UMAD.pdf /docs/en/reference-manual/MPC862UMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jun 3, 2010 500633505221135046 Reference Manual N N Errata to MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family Reference Manual, Rev. 3 3 3 English The primary objective of this manual is to help communications system designers build systems using the NXP MPC862 device family and to help software designers provide operating systems and user-level applications to take fullest advantage.&#13;&#10; B971467608515 PSP 13.8 MB None None documents None B971467608515 /docs/en/reference-manual/MPC862UM.pdf 13843991 /docs/en/reference-manual/MPC862UM.pdf MPC862UM documents N 2000-10-13 MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Processor Family Reference Manual /docs/en/reference-manual/MPC862UM.pdf /docs/en/reference-manual/MPC862UM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Dec 21, 2005 500633505221135046 Reference Manual Y N MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Processor Family Reference Manual 4 3 English Programming Environments Manual for 32-Bit Implementations of the Power Architecture. E966578690432 PSP 6.1 MB Registration without Disclaimer None documents Extended E966578690432 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 6125455 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf MPCFPE32B documents Y N 2016-10-31 Programming Environments Manual for 32-Bit Implementations of the Power Architecture /webapp/Download?colCode=MPCFPE32B&lang_cd=zh /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Oct 17, 2005 500633505221135046 Reference Manual Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 5 0.1 English Reference Manual 1067453311743716175887 PSP 695.1 KB None None documents None 1067453311743716175887 /docs/en/reference-manual/MPC8XXRMAD.pdf 695068 /docs/en/reference-manual/MPC8XXRMAD.pdf MPC8XXRMAD documents N 2003-10-29 MPC8xx Digital Signal Processing Addendum /docs/en/reference-manual/MPC8XXRMAD.pdf /docs/en/reference-manual/MPC8XXRMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Oct 29, 2003 500633505221135046 Reference Manual Y N MPC8xx Digital Signal Processing Addendum 应用笔记 Application Note 18 6 0 English Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203 PSP 303.0 KB None None documents None 1641302649210707506203 /docs/en/application-note/AN13461.pdf 302971 /docs/en/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/en/application-note/AN13461.pdf /docs/en/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 en Nov 30, 2021 645036621402383989 Application Note Y N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 0 Chinese Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203zh PSP 303.0 KB None None documents None 1641302649210707506203 /docs/zh/application-note/AN13461.pdf 302971 /docs/zh/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/zh/application-note/AN13461.pdf /docs/zh/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 pdf N zh May 9, 2022 645036621402383989 Application Note Y N 恩智浦微控制器故障排除清单 7 3 English This document is a supplement to the SEC 2/3x reference device driver. 1224778148188710027580 PSP 1.1 MB Registration without Disclaimer None documents Extended 1224778148188710027580 /secured/assets/documents/en/application-note/AN3645.pdf 1147132 /secured/assets/documents/en/application-note/AN3645.pdf AN3645 documents Y N 2016-10-31 SEC 2/3x Descriptor Programmer’s Guide /webapp/Download?colCode=AN3645&lang_cd=zh /secured/assets/documents/en/application-note/AN3645.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Apr 28, 2017 645036621402383989 Application Note N SEC 2/3x Descriptor Programmer’s Guide 8 1 English This application note describes how to use and benefit from DDR memory interleaving. 1251150824863717930878 PSP 717.3 KB Registration without Disclaimer None documents Extended 1251150824863717930878 /secured/assets/documents/en/application-note/AN3939.pdf 717276 /secured/assets/documents/en/application-note/AN3939.pdf AN3939 documents Y N 2016-10-31 DDR Interleaving for PowerQUICC and QorIQ Processors /webapp/Download?colCode=AN3939&lang_cd=zh /secured/assets/documents/en/application-note/AN3939.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 30, 2010 645036621402383989 Application Note Y N DDR Interleaving for PowerQUICC and QorIQ Processors 9 1 English This application note explains the contents of the leader device tree in a multicore Hypervisor implementation used to allocate system resources to the individual partitions.&#13;&#10;Additionally, it describes the contents of the individual device trees that each partition uses for local allocation of those resources. 1225213465876727613770 PSP 828.9 KB None None documents None 1225213465876727613770 /docs/en/application-note/AN3649.pdf 828938 /docs/en/application-note/AN3649.pdf AN3649 documents N N 2016-10-31 Understanding Device Tree Files in Multicore Hypervisor/LWE Implementations /docs/en/application-note/AN3649.pdf /docs/en/application-note/AN3649.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 19, 2010 645036621402383989 Application Note Y N Understanding Device Tree Files in Multicore Hypervisor/LWE Implementations 10 0 English AN4064: This document explains how to enable and utilize 36-bit physical addressing. It describes the 36-bit capabilities of the e600 and e500v2, and later processor families. Addressing and memory management in a computer system is a difficult topic that is largely beyond the scope of this document. This section explains some of the basic concepts that are essential to understand in order to develop system-level software that utilizes 36-bit physical addressing. 1269842191514722596708 PSP 576.8 KB None None documents None 1269842191514722596708 /docs/en/application-note/AN4064.pdf 576818 /docs/en/application-note/AN4064.pdf AN4064 documents N 2016-10-31 AN4064, Utilizing 36-Bit Physical Addressing in U-Boot and Linux - Application Notes /docs/en/application-note/AN4064.pdf /docs/en/application-note/AN4064.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 28, 2010 645036621402383989 Application Note N AN4064, Utilizing 36-Bit Physical Addressing in U-Boot and Linux - Application Notes 11 1 English This application note describes basic jitter terminology and the aspects pertaining to the SYSCLK clock design requirements. 1264143083962735811350 PSP 514.4 KB None None documents None 1264143083962735811350 /docs/en/application-note/AN4056.pdf 514364 /docs/en/application-note/AN4056.pdf AN4056 documents N 2016-10-31 Understanding SYSCLK Jitter /docs/en/application-note/AN4056.pdf /docs/en/application-note/AN4056.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 18, 2010 645036621402383989 Application Note N Understanding SYSCLK Jitter 12 0 English AN4026SW.zip /secured/assets/documents/en/application-note-software/AN4026SW.zip /webapp/Download?colCode=AN4026SW&appType=license&docLang=en A common use of the QUICC Engine block is to establish an HDLC communication path over a TDM interface, such as a T1 or E1 link. This application note describes the various sub-blocks used in the QUICC Engine communications engine for this application, discusses how the sub-blocks interoperate with each other, describes how to initialize them for the HDLC communication path, and provides a software demonstration of HDLC mode via a TDM interface using on-chip loopback. 1260992898773711434436 PSP 718.0 KB None None documents None 1260992898773711434436 /docs/en/application-note/AN4026.pdf 718019 /docs/en/application-note/AN4026.pdf AN4026 documents N 2009-12-17 Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC /docs/en/application-note/AN4026.pdf /docs/en/application-note/AN4026.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 17, 2009 645036621402383989 Application Note N Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC 13 0 English High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e 1258066893562722616236 PSP 496.6 KB None None documents None 1258066893562722616236 /docs/en/application-note/AN3966.pdf 496625 /docs/en/application-note/AN3966.pdf AN3966 documents N 2016-10-31 PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf /docs/en/application-note/AN3966.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 10, 2009 645036621402383989 Application Note N PowerQUICC™ HDLC Support and Example Code 14 2 English NXP Semiconductors Power Architecture&#8482;&#13;&#10;technology-based evaluation and development platforms may optionally implement a &#8220;System ID&#8221; non-volatile memory device. This device stores important configuration data about the board. 1213738938672737755656 PSP 495.3 KB None None documents None 1213738938672737755656 /docs/en/application-note/AN3638.pdf 495318 /docs/en/application-note/AN3638.pdf AN3638 documents N N 2016-10-31 The SystemID Format for Power Architecture™ Development Systems /docs/en/application-note/AN3638.pdf /docs/en/application-note/AN3638.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 26, 2009 645036621402383989 Application Note N The SystemID Format for Power Architecture™ Development Systems 15 0 English This application note explains configuration&#13;&#10;requirements to assist users to successfully program and set up this interface type. It also compares SGMII to other gigabit Ethernet standards and interfaces. 1244236817778728476903 PSP 692.4 KB Registration without Disclaimer None documents Extended 1244236817778728476903 /secured/assets/documents/en/application-note/AN3869.pdf 692438 /secured/assets/documents/en/application-note/AN3869.pdf AN3869 documents Y N 2016-10-31 Implementing SGMII Interfaces on the PowerQUICC™ III /webapp/Download?colCode=AN3869&lang_cd=zh /secured/assets/documents/en/application-note/AN3869.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 5, 2009 645036621402383989 Application Note N Implementing SGMII Interfaces on the PowerQUICC™ III 16 0 English Application note 1097700058931725769821 PSP 308.7 KB None None documents None 1097700058931725769821 /docs/en/application-note/AN2799.pdf 308749 /docs/en/application-note/AN2799.pdf AN2799 documents N 2004-10-13 Migrating from the MPC857T to the MPC885 /docs/en/application-note/AN2799.pdf /docs/en/application-note/AN2799.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 13, 2004 645036621402383989 Application Note Y N Migrating from the MPC857T to the MPC885 17 0.1 English J989336344057 PSP 249.6 KB None None documents None J989336344057 /docs/en/application-note/AN2059.pdf 249563 /docs/en/application-note/AN2059.pdf AN2059 documents N 2001-05-08 CPM Hints /docs/en/application-note/AN2059.pdf /docs/en/application-note/AN2059.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 5, 2003 645036621402383989 Application Note Y N CPM Hints 18 0 English Simplified Mnemonics for PowerPC Instructions. 1064950886097724682016 PSP 1.4 MB None None documents None 1064950886097724682016 /docs/en/application-note/AN2491.pdf 1379878 /docs/en/application-note/AN2491.pdf AN2491 documents N 2003-09-30 Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf /docs/en/application-note/AN2491.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 30, 2003 645036621402383989 Application Note Y N Simplified Mnemonics for PowerPC Instructions 19 0 English Application Note - MPC8xx Using BDM and JTAG R1037394824509 PSP 467.3 KB None None documents None R1037394824509 /docs/en/application-note/AN2387.pdf 467300 /docs/en/application-note/AN2387.pdf AN2387 documents N 2002-11-15 MPC8xx Using BDM and JTAG /docs/en/application-note/AN2387.pdf /docs/en/application-note/AN2387.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 15, 2002 645036621402383989 Application Note Y N MPC8xx Using BDM and JTAG 20 1.5 English MP8XX SDRAM Interface D989422091427 PSP 471.7 KB None None documents None D989422091427 /docs/en/application-note/AN2066.pdf 471671 /docs/en/application-note/AN2066.pdf AN2066 documents N 2001-05-09 MP8xx SDRAM Interface /docs/en/application-note/AN2066.pdf /docs/en/application-note/AN2066.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 29, 2001 645036621402383989 Application Note Y N MP8xx SDRAM Interface 21 0.1 English Application Note - MPC860 Revision D PLL Considerations Y997735706160 PSP 283.9 KB None None documents None Y997735706160 /docs/en/application-note/AN2181.pdf 283921 /docs/en/application-note/AN2181.pdf AN2181 documents N 2001-08-13 MPC860 Revision D PLL Considerations /docs/en/application-note/AN2181.pdf /docs/en/application-note/AN2181.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 29, 2001 645036621402383989 Application Note Y N MPC860 Revision D PLL Considerations 22 0 English MPC860 Board Design Checklist T989336475809 PSP 480.8 KB None None documents None T989336475809 /docs/en/application-note/AN2100.pdf 480778 /docs/en/application-note/AN2100.pdf AN2100 documents N 2001-05-08 AN2100 MPC860 Board Design Checklist /docs/en/application-note/AN2100.pdf /docs/en/application-note/AN2100.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 30, 1999 645036621402383989 Application Note Y N AN2100 MPC860 Board Design Checklist 23 0 English Application Note Z989422081907 PSP 417.7 KB None None documents None Z989422081907 /docs/en/application-note/AN2065.pdf 417742 /docs/en/application-note/AN2065.pdf AN2065 documents N 2001-05-09 MP8XX True Little-Endian Mode /docs/en/application-note/AN2065.pdf /docs/en/application-note/AN2065.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 2, 1998 645036621402383989 Application Note Y N MP8XX True Little-Endian Mode 应用笔记软件 Application Note Software 5 24 0 English 1258066894053701788655 PSP 330.9 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1258066894053701788655 /secured/assets/documents/en/application-note-software/AN3966SW.zip 330857 /secured/assets/documents/en/application-note-software/AN3966SW.zip AN3966SW documents Y N 2016-10-31 Software to accompany application note AN3966 /webapp/Download?colCode=AN3966SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN3966SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Nov 10, 2009 789425793691620447 Application Note Software N Software to accompany application note AN3966 25 0 English This application note addresses a common challenge encountered during circuit board testing with some of the newer NXP microprocessors. It is common practice for board testing houses to test for shorts on the power rails by measuring the resistance from a power rail to the ground rail. In older technologies, this is a reasonable approach. However, this application note explains why this approach can be problematic when used with devices in newer technologies. 1181767584945705509512 PSP 163.7 KB None None documents None 1181767584945705509512 /docs/en/application-note-software/AN3372.pdf 163681 /docs/en/application-note-software/AN3372.pdf AN3372 documents N 2016-10-31 Challenges in Testing for Power Rail Shorts with New Technologies /docs/en/application-note-software/AN3372.pdf /docs/en/application-note-software/AN3372.pdf Application Note Software N 789425793691620447 2022-12-07 pdf en Jun 13, 2007 789425793691620447 Application Note Software N Challenges in Testing for Power Rail Shorts with New Technologies 26 1 English To help expedite Power Architecture board bringup, this application note describes how to port the CodeWarrior target initialization file from the NXP MPC8555CDS development system to a custom development system. The target initialization file offers many benefits, such as the ability to debug a system before there is working code and a working system. 1177528532487728727257 PSP 955.3 KB None None documents None 1177528532487728727257 /docs/en/application-note-software/AN3366.pdf 955336 /docs/en/application-note-software/AN3366.pdf AN3366 documents N 2007-04-25 Simplifying Board Bringup: Porting a CodeWarrior<sup>&#174;</sup> Initialization File to Your System /docs/en/application-note-software/AN3366.pdf /docs/en/application-note-software/AN3366.pdf Application Note Software N 789425793691620447 2022-12-07 pdf en May 22, 2007 789425793691620447 Application Note Software D N Simplifying Board Bringup: Porting a CodeWarrior<sup>&#174;</sup> Initialization File to Your System 27 2 English AN2810, PowerQUICC<sup>&#174;</sup> UPM Configuration, PowerQUICC, Universal Programmable Machine, Configuration, Application Note 1113503860374718430905 PSP 5.6 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1113503860374718430905 /secured/assets/documents/en/application-note-software/AN2810SW.zip 5555 /secured/assets/documents/en/application-note-software/AN2810SW.zip AN2810SW documents Y N 2005-04-14 AN2810 Supporting Files /webapp/Download?colCode=AN2810SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN2810SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Aug 15, 2006 789425793691620447 Application Note Software N AN2810 Supporting Files 28 1 English his application note describes how to take full advantage of the MPC8xx caches and MMU features to maximize system performance. It also describes simple ways to measure system performance. 1137532469845719050530 PSP 184.0 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1137532469845719050530 /secured/assets/documents/en/application-note-software/AN3066SW.zip 183964 /secured/assets/documents/en/application-note-software/AN3066SW.zip AN3066SW documents Y N 2016-10-31 Software to Accompany Application Note AN3066 /webapp/Download?colCode=AN3066SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN3066SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Jan 17, 2006 789425793691620447 Application Note Software N Software to Accompany Application Note AN3066 封装信息 Package Information 1 29 3 English Customer presentation on PBGA packages Q1019076364374 PSP 2.8 MB None None documents None Q1019076364374 /docs/en/package-information/PBGAPRES.pdf 2767864 /docs/en/package-information/PBGAPRES.pdf PBGAPRES documents N 2002-04-17 PBGA Packaging Customer Tutorial /docs/en/package-information/PBGAPRES.pdf /docs/en/package-information/PBGAPRES.pdf Package Information N 302435339416912908 2022-12-07 pdf en Mar 14, 2008 302435339416912908 Package Information Y N PBGA Packaging Customer Tutorial 产品简介 Product Brief 1 30 1 English MPC857T/857DSL Integrated Communications Controller Technical Summary B1012518030681 PSP 224.0 KB None None documents None B1012518030681 /docs/en/product-brief/MPC857TTS.pdf 224029 /docs/en/product-brief/MPC857TTS.pdf MPC857TTS documents N 2002-01-31 MPC857T/857DSL Integrated Communications Controller Technical Summary /docs/en/product-brief/MPC857TTS.pdf /docs/en/product-brief/MPC857TTS.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Jul 25, 2002 899114358132306053 Product Brief Y N MPC857T/857DSL Integrated Communications Controller Technical Summary false 0 MPC857T downloads zh-Hans true 1 Y PSP 产品简介 1 /docs/en/product-brief/MPC857TTS.pdf 2002-01-31 B1012518030681 PSP 30 Jul 25, 2002 Product Brief MPC857T/857DSL Integrated Communications Controller Technical Summary None /docs/en/product-brief/MPC857TTS.pdf English documents 224029 None 899114358132306053 2022-12-07 /docs/en/product-brief/MPC857TTS.pdf MPC857T/857DSL Integrated Communications Controller Technical Summary /docs/en/product-brief/MPC857TTS.pdf documents 899114358132306053 Product Brief N en None Y pdf 1 N MPC857T/857DSL Integrated Communications Controller Technical Summary 224.0 KB MPC857TTS N B1012518030681 参考手册 4 /docs/en/reference-manual/MPC862UMAD.pdf 2003-04-11 115t0PdH PSP 2 Jun 3, 2010 Reference Manual This errata describes corrections to the MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family&#13;&#10;Reference Manual, Revision 3. None /docs/en/reference-manual/MPC862UMAD.pdf English documents 438065 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC862UMAD.pdf Errata to MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family Reference Manual, Rev. 3 /docs/en/reference-manual/MPC862UMAD.pdf documents 500633505221135046 Reference Manual N en None N pdf 3.4 N Errata to MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Family Reference Manual, Rev. 3 438.1 KB MPC862UMAD N 115t0PdH /docs/en/reference-manual/MPC862UM.pdf 2000-10-13 B971467608515 PSP 3 Dec 21, 2005 Reference Manual The primary objective of this manual is to help communications system designers build systems using the NXP MPC862 device family and to help software designers provide operating systems and user-level applications to take fullest advantage.&#13;&#10; None /docs/en/reference-manual/MPC862UM.pdf English documents 13843991 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC862UM.pdf MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Processor Family Reference Manual /docs/en/reference-manual/MPC862UM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 3 N MPC862 PowerQUICC<sup>&#174;</sup> Integrated Communications Processor Family Reference Manual 13.8 MB MPC862UM N B971467608515 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 2016-10-31 E966578690432 PSP 4 Oct 17, 2005 Reference Manual Programming Environments Manual for 32-Bit Implementations of the Power Architecture. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf English documents 6125455 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=MPCFPE32B&lang_cd=zh Programming Environments Manual for 32-Bit Implementations of the Power Architecture /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 6.1 MB MPCFPE32B N E966578690432 /docs/en/reference-manual/MPC8XXRMAD.pdf 2003-10-29 1067453311743716175887 PSP 5 Oct 29, 2003 Reference Manual Reference Manual None /docs/en/reference-manual/MPC8XXRMAD.pdf English documents 695068 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC8XXRMAD.pdf MPC8xx Digital Signal Processing Addendum /docs/en/reference-manual/MPC8XXRMAD.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N MPC8xx Digital Signal Processing Addendum 695.1 KB MPC8XXRMAD N 1067453311743716175887 封装信息 1 /docs/en/package-information/PBGAPRES.pdf 2002-04-17 Q1019076364374 PSP 29 Mar 14, 2008 Package Information Customer presentation on PBGA packages None /docs/en/package-information/PBGAPRES.pdf English documents 2767864 None 302435339416912908 2022-12-07 /docs/en/package-information/PBGAPRES.pdf PBGA Packaging Customer Tutorial /docs/en/package-information/PBGAPRES.pdf documents 302435339416912908 Package Information N en None Y pdf 3 N PBGA Packaging Customer Tutorial 2.8 MB PBGAPRES N Q1019076364374 应用笔记 18 /docs/zh/application-note/AN13461.pdf 2022-01-04 1641302649210707506203zh PSP 6 May 9, 2022 Application Note Reviewing the troubleshoot microcontroller when there is a malfunction module. None /docs/zh/application-note/AN13461.pdf Chinese documents 302971 None 645036621402383989 2022-12-07 N /docs/zh/application-note/AN13461.pdf 恩智浦微控制器故障排除清单 /docs/zh/application-note/AN13461.pdf documents 645036621402383989 Application Note N zh None Y pdf 0 N N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 303.0 KB AN13461 N 1641302649210707506203 /secured/assets/documents/en/application-note/AN3645.pdf 2016-10-31 1224778148188710027580 PSP 7 Apr 28, 2017 Application Note This document is a supplement to the SEC 2/3x reference device driver. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3645.pdf English documents 1147132 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN3645&lang_cd=zh SEC 2/3x Descriptor Programmer’s Guide /secured/assets/documents/en/application-note/AN3645.pdf documents 645036621402383989 Application Note N en Extended pdf 3 Y N SEC 2/3x Descriptor Programmer’s Guide 1.1 MB AN3645 N 1224778148188710027580 /secured/assets/documents/en/application-note/AN3939.pdf 2016-10-31 1251150824863717930878 PSP 8 Jun 30, 2010 Application Note This application note describes how to use and benefit from DDR memory interleaving. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3939.pdf English documents 717276 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3939&lang_cd=zh DDR Interleaving for PowerQUICC and QorIQ Processors /secured/assets/documents/en/application-note/AN3939.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N DDR Interleaving for PowerQUICC and QorIQ Processors 717.3 KB AN3939 N 1251150824863717930878 /docs/en/application-note/AN3649.pdf 2016-10-31 1225213465876727613770 PSP 9 Apr 19, 2010 Application Note This application note explains the contents of the leader device tree in a multicore Hypervisor implementation used to allocate system resources to the individual partitions.&#13;&#10;Additionally, it describes the contents of the individual device trees that each partition uses for local allocation of those resources. None /docs/en/application-note/AN3649.pdf English documents 828938 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN3649.pdf Understanding Device Tree Files in Multicore Hypervisor/LWE Implementations /docs/en/application-note/AN3649.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N Understanding Device Tree Files in Multicore Hypervisor/LWE Implementations 828.9 KB AN3649 N 1225213465876727613770 /docs/en/application-note/AN4064.pdf 2016-10-31 1269842191514722596708 PSP 10 Mar 28, 2010 Application Note AN4064: This document explains how to enable and utilize 36-bit physical addressing. It describes the 36-bit capabilities of the e600 and e500v2, and later processor families. Addressing and memory management in a computer system is a difficult topic that is largely beyond the scope of this document. This section explains some of the basic concepts that are essential to understand in order to develop system-level software that utilizes 36-bit physical addressing. None /docs/en/application-note/AN4064.pdf English documents 576818 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4064.pdf AN4064, Utilizing 36-Bit Physical Addressing in U-Boot and Linux - Application Notes /docs/en/application-note/AN4064.pdf documents 645036621402383989 Application Note N en None pdf 0 N AN4064, Utilizing 36-Bit Physical Addressing in U-Boot and Linux - Application Notes 576.8 KB AN4064 N 1269842191514722596708 /docs/en/application-note/AN4056.pdf 2016-10-31 1264143083962735811350 PSP 11 Feb 18, 2010 Application Note This application note describes basic jitter terminology and the aspects pertaining to the SYSCLK clock design requirements. None /docs/en/application-note/AN4056.pdf English documents 514364 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4056.pdf Understanding SYSCLK Jitter /docs/en/application-note/AN4056.pdf documents 645036621402383989 Application Note N en None pdf 1 N Understanding SYSCLK Jitter 514.4 KB AN4056 N 1264143083962735811350 /docs/en/application-note/AN4026.pdf 2009-12-17 1260992898773711434436 PSP 12 Dec 17, 2009 Application Note A common use of the QUICC Engine block is to establish an HDLC communication path over a TDM interface, such as a T1 or E1 link. This application note describes the various sub-blocks used in the QUICC Engine communications engine for this application, discusses how the sub-blocks interoperate with each other, describes how to initialize them for the HDLC communication path, and provides a software demonstration of HDLC mode via a TDM interface using on-chip loopback. None /docs/en/application-note/AN4026.pdf English documents 718019 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4026.pdf Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC /docs/en/application-note/AN4026.pdf documents 645036621402383989 Application Note N en None pdf 0 N Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC 718.0 KB AN4026 N 1260992898773711434436 /docs/en/application-note/AN3966.pdf 2016-10-31 1258066893562722616236 PSP 13 Nov 10, 2009 Application Note High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e None /docs/en/application-note/AN3966.pdf English documents 496625 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3966.pdf PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf documents 645036621402383989 Application Note N en None pdf 0 N PowerQUICC™ HDLC Support and Example Code 496.6 KB AN3966 N 1258066893562722616236 /docs/en/application-note/AN3638.pdf 2016-10-31 1213738938672737755656 PSP 14 Oct 26, 2009 Application Note NXP Semiconductors Power Architecture&#8482;&#13;&#10;technology-based evaluation and development platforms may optionally implement a &#8220;System ID&#8221; non-volatile memory device. This device stores important configuration data about the board. None /docs/en/application-note/AN3638.pdf English documents 495318 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN3638.pdf The SystemID Format for Power Architecture™ Development Systems /docs/en/application-note/AN3638.pdf documents 645036621402383989 Application Note N en None pdf 2 N N The SystemID Format for Power Architecture™ Development Systems 495.3 KB AN3638 N 1213738938672737755656 /secured/assets/documents/en/application-note/AN3869.pdf 2016-10-31 1244236817778728476903 PSP 15 Jun 5, 2009 Application Note This application note explains configuration&#13;&#10;requirements to assist users to successfully program and set up this interface type. It also compares SGMII to other gigabit Ethernet standards and interfaces. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3869.pdf English documents 692438 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3869&lang_cd=zh Implementing SGMII Interfaces on the PowerQUICC™ III /secured/assets/documents/en/application-note/AN3869.pdf documents 645036621402383989 Application Note N en Extended pdf 0 Y N Implementing SGMII Interfaces on the PowerQUICC™ III 692.4 KB AN3869 N 1244236817778728476903 /docs/en/application-note/AN2799.pdf 2004-10-13 1097700058931725769821 PSP 16 Oct 13, 2004 Application Note Application note None /docs/en/application-note/AN2799.pdf English documents 308749 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2799.pdf Migrating from the MPC857T to the MPC885 /docs/en/application-note/AN2799.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Migrating from the MPC857T to the MPC885 308.7 KB AN2799 N 1097700058931725769821 /docs/en/application-note/AN2059.pdf 2001-05-08 J989336344057 PSP 17 Dec 5, 2003 Application Note None /docs/en/application-note/AN2059.pdf English documents 249563 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2059.pdf CPM Hints /docs/en/application-note/AN2059.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N CPM Hints 249.6 KB AN2059 N J989336344057 /docs/en/application-note/AN2491.pdf 2003-09-30 1064950886097724682016 PSP 18 Sep 30, 2003 Application Note Simplified Mnemonics for PowerPC Instructions. None /docs/en/application-note/AN2491.pdf English documents 1379878 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2491.pdf Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Simplified Mnemonics for PowerPC Instructions 1.4 MB AN2491 N 1064950886097724682016 /docs/en/application-note/AN2387.pdf 2002-11-15 R1037394824509 PSP 19 Nov 15, 2002 Application Note Application Note - MPC8xx Using BDM and JTAG None /docs/en/application-note/AN2387.pdf English documents 467300 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2387.pdf MPC8xx Using BDM and JTAG /docs/en/application-note/AN2387.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MPC8xx Using BDM and JTAG 467.3 KB AN2387 N R1037394824509 /docs/en/application-note/AN2066.pdf 2001-05-09 D989422091427 PSP 20 Nov 29, 2001 Application Note MP8XX SDRAM Interface None /docs/en/application-note/AN2066.pdf English documents 471671 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2066.pdf MP8xx SDRAM Interface /docs/en/application-note/AN2066.pdf documents 645036621402383989 Application Note N en None Y pdf 1.5 N MP8xx SDRAM Interface 471.7 KB AN2066 N D989422091427 /docs/en/application-note/AN2181.pdf 2001-08-13 Y997735706160 PSP 21 Nov 29, 2001 Application Note Application Note - MPC860 Revision D PLL Considerations None /docs/en/application-note/AN2181.pdf English documents 283921 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2181.pdf MPC860 Revision D PLL Considerations /docs/en/application-note/AN2181.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N MPC860 Revision D PLL Considerations 283.9 KB AN2181 N Y997735706160 /docs/en/application-note/AN2100.pdf 2001-05-08 T989336475809 PSP 22 Jul 30, 1999 Application Note MPC860 Board Design Checklist None /docs/en/application-note/AN2100.pdf English documents 480778 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2100.pdf AN2100 MPC860 Board Design Checklist /docs/en/application-note/AN2100.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN2100 MPC860 Board Design Checklist 480.8 KB AN2100 N T989336475809 /docs/en/application-note/AN2065.pdf 2001-05-09 Z989422081907 PSP 23 Feb 2, 1998 Application Note Application Note None /docs/en/application-note/AN2065.pdf English documents 417742 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2065.pdf MP8XX True Little-Endian Mode /docs/en/application-note/AN2065.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MP8XX True Little-Endian Mode 417.7 KB AN2065 N Z989422081907 应用笔记软件 5 /secured/assets/documents/en/application-note-software/AN3966SW.zip 2016-10-31 1258066894053701788655 PSP 24 Nov 10, 2009 Application Note Software Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN3966SW.zip English documents 330857 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN3966SW&appType=license&lang_cd=zh Software to accompany application note AN3966 /secured/assets/documents/en/application-note-software/AN3966SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N Software to accompany application note AN3966 330.9 KB AN3966SW N 1258066894053701788655 /docs/en/application-note-software/AN3372.pdf 2016-10-31 1181767584945705509512 PSP 25 Jun 13, 2007 Application Note Software This application note addresses a common challenge encountered during circuit board testing with some of the newer NXP microprocessors. It is common practice for board testing houses to test for shorts on the power rails by measuring the resistance from a power rail to the ground rail. In older technologies, this is a reasonable approach. However, this application note explains why this approach can be problematic when used with devices in newer technologies. None /docs/en/application-note-software/AN3372.pdf English documents 163681 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN3372.pdf Challenges in Testing for Power Rail Shorts with New Technologies /docs/en/application-note-software/AN3372.pdf documents 789425793691620447 Application Note Software N en None pdf 0 N Challenges in Testing for Power Rail Shorts with New Technologies 163.7 KB AN3372 N 1181767584945705509512 /docs/en/application-note-software/AN3366.pdf 2007-04-25 1177528532487728727257 PSP 26 May 22, 2007 Application Note Software To help expedite Power Architecture board bringup, this application note describes how to port the CodeWarrior target initialization file from the NXP MPC8555CDS development system to a custom development system. The target initialization file offers many benefits, such as the ability to debug a system before there is working code and a working system. None /docs/en/application-note-software/AN3366.pdf English documents 955336 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN3366.pdf Simplifying Board Bringup: Porting a CodeWarrior<sup>&#174;</sup> Initialization File to Your System /docs/en/application-note-software/AN3366.pdf documents 789425793691620447 Application Note Software N en None D pdf 1 N Simplifying Board Bringup: Porting a CodeWarrior<sup>&#174;</sup> Initialization File to Your System 955.3 KB AN3366 N 1177528532487728727257 /secured/assets/documents/en/application-note-software/AN2810SW.zip 2005-04-14 1113503860374718430905 PSP 27 Aug 15, 2006 Application Note Software AN2810, PowerQUICC<sup>&#174;</sup> UPM Configuration, PowerQUICC, Universal Programmable Machine, Configuration, Application Note Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2810SW.zip English documents 5555 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2810SW&appType=license&lang_cd=zh AN2810 Supporting Files /secured/assets/documents/en/application-note-software/AN2810SW.zip documents 789425793691620447 Application Note Software N en Extended zip 2 Y N AN2810 Supporting Files 5.6 KB AN2810SW N 1113503860374718430905 /secured/assets/documents/en/application-note-software/AN3066SW.zip 2016-10-31 1137532469845719050530 PSP 28 Jan 17, 2006 Application Note Software his application note describes how to take full advantage of the MPC8xx caches and MMU features to maximize system performance. It also describes simple ways to measure system performance. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN3066SW.zip English documents 183964 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN3066SW&appType=license&lang_cd=zh Software to Accompany Application Note AN3066 /secured/assets/documents/en/application-note-software/AN3066SW.zip documents 789425793691620447 Application Note Software N en Extended zip 1 Y N Software to Accompany Application Note AN3066 184.0 KB AN3066SW N 1137532469845719050530 数据手册 1 /docs/en/data-sheet/MPC862EC.pdf 2001-05-09 R989423460237 PSP 1 Feb 10, 2006 Data Sheet This document contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing specifications for the MPC862/857T/857DSL family.&#13;&#10; None /docs/en/data-sheet/MPC862EC.pdf English documents 1330313 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPC862EC.pdf MPC862/857T/857DSL PowerQUICC<sup>&#174;</sup> Family Hardware Specifications /docs/en/data-sheet/MPC862EC.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3 N MPC862/857T/857DSL PowerQUICC<sup>&#174;</sup> Family Hardware Specifications 1.3 MB MPC862EC N R989423460237 true Y Products
