LIN物理接口

MC33399
停产

  • 建议不要在新设计中使用MC33399。恩智浦建议任何新设计中都可采用TJA1021。

恩智浦MC33399是一个专门用于汽车子总线应用的物理层组件。

  • 通信速率在1.0kbps至20kbps之间，编程模式时最高可达60kbps
  • 通过多节点低速至中速网络提供数字通信
  • 波形整形减少电磁干扰
  • 两种运行模式：正常和睡眠
  • 支持LIN协议规范1.3。

产品详情

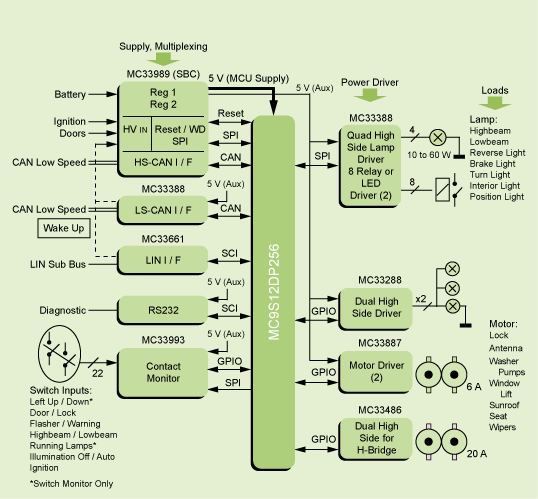

框图

Body Control Block Diagram

Body Control Block Diagram
获取框图PDF

特征

  • VSUP引脚的标称工作电压为7.0 V至18 V DC，27 V DC电池电压时可正常工作，负载突降时可承受40 V电压
  • 主动总线波形整形可将辐射发射降至最低
  • LIN总线引脚上为± 5.0 kV ESD，其他引脚上为± 4.0 kV ESD
  • 30 kΩ的内部上拉电阻
  • 模块级的接地转移操作和接地断开故障安全功能
  • 未通电的节点不会干扰网络
  • 睡眠模式电流消耗为20 μA
  • 可通过LIN总线、MCU命令和专用高压唤醒输入(连接外部开关)唤醒
  • 采用与CMOS兼容的I/O引脚连接到MCU
  • 控制外部稳压器
