适用于点阵图形显示的LCD行/列驱动器

PCF8578
正常供应
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

PCF8578是一款低功率CMOS1LCD行和列驱动器，为驱动复用率为1:8、1:16、1:24或1:32的点阵图形显示而设计。器件具有40个输出，其中24个可编程并配置成下列行/列比：32/8、24/16、16/24或8/32。PCF8578可在小型系统中用作独立LCD控制器和驱动器。对于更大的系统，可配合最多32个PCF8579使用。结合这两个器件可形成通用LCD点阵驱动器芯片组，能够驱动最多40960点的显示。PCF8578兼容大多数微控制器并通过两线双向总线（I²C总线）进行通信。带有自动递增寻址的显示RAM和显示库切换使通信开销最小化。

查看产品图片

产品详情

框图

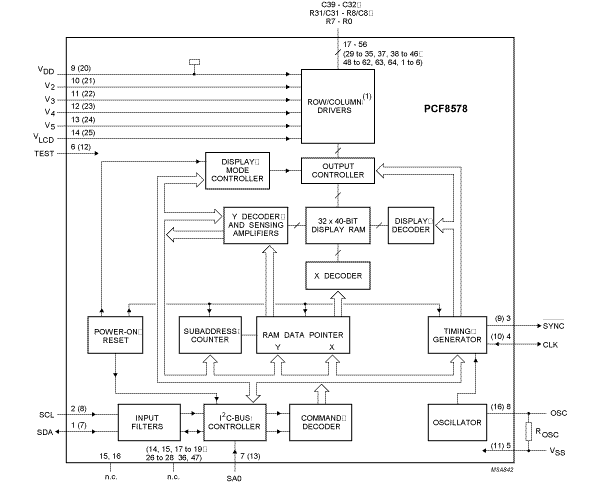

Block diagram: PCF8578HT, PCF8578T

获取框图PDF

特征

系统特性

  • 单芯片LCD控制器和驱动器
  • 独立或可使用最多32个PCF8579（可能有40960点）
  • 40个驱动器输出，可配置多种比率的行/列：32/8、24/16、16/24或8/32
  • 可选复用率：1:8、1:16、1:24或1:32
  • 外部可选偏置配置，5或6级
  • 用于显示数据存储和暂存的1280位RAM
  • 显示存储器组切换
  • 跨跃硬件子地址边界进行自动递增数据加载（使用PCF8579）
  • 为PCF8579提供显示同步
  • 片上振荡器，只需1个外部电阻
  • 电源上电复位(POR)空白显示
  • 逻辑电源电压范围2.5 V至6 V
  • 最大LCD电源电压9 V
  • 低功耗
  • I²C总线接口
  • 兼容大多数微控制器
  • 多重器件应用中为单平面配线优化引脚连接（使用PCF8579）
  • 省空间56引脚小型封装和64引脚四方扁平封装

应用

  • 车用信息系统
  • 电信系统
  • POS机终端
  • 工业计算机终端
  • 仪器
