LCD驱动器

PCF21XXC_FAMILY
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

PCF21xxC系列是单芯片、硅栅CMOS LCD驱动器电路。3线(CBUS)结构能使用微控制器进行串行数据传送。所有输入均为CMOS/NMOS兼容。

器件与其所替代的PCF21xx系列具有相同的功能和性能。所需的最大工作电压从6.5降至6.0 V。

产品详情

框图

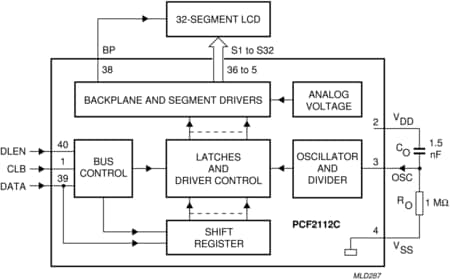

Block diagram: PCF2100CT, PCF2111CT, PCF2112CP, PCF2112CT

获取框图PDF

特征

系统特性

  • 电源电压2.25至6.0 V
  • 低电流消耗
  • 串行数据输入
  • CBUS控制
  • 单点内置振荡器
  • 独立或扩展系统
  • 电源上电复位清除

  • LCD段码

    - 40 (PCF2100C)

    - 64 (PCF2111C)

    - 32 (PCF2112C)

  • 复用率

    - 1 : 2 (PCF2100C)

    - 1 : 2 (PCF2111C)

    - 1 : 1 (PCF2112C)

  • 字长

    - 22位(PCF2100C)

    - 34位(PCF2111C)

    - 34位(PCF2112C)。

购买/参数

3 结果

不包含 3 不推荐用于新设计

部件

展开描述

计算机辅助设计模型

封装类型

Max number of elements

Segments/elements of MUX 1:1

Segments/elements of MUX 1:2

VDD1 [min] (V)

VDD1 [max] (V)

VLCD [min] (V)

VLCD [max] (V)

ffr

Cascade for larger conf

PCF2100CT
数据手册

SO28

—

—

—

2.25

6

2.25

6

75.0

Y

PCF2111CT
数据手册

VSO40

64

—

64

2.25

6

2.25

6

75.0

Y

PCF2112CT
数据手册

VSO40

32

32

—

2.25

6

2.25

6

35.0

Y

N true 0 PSPPCF21XXC_FAMILYzh 8 包装信息 Packing Information t935 1 封装信息 Package Information t790 1 应用笔记 Application Note t789 2 支持信息 Supporting Information t531 1 数据手册 Data Sheet t520 1 用户指南 User Guide t792 2 zh zh zh 数据手册 Data Sheet 1 1 3.0 English 1442068575281715527896 PSP 260.0 KB None None documents None 1442068575281715527896 /docs/en/data-sheet/PCF21XXC_FAM.pdf 259974 /docs/en/data-sheet/PCF21XXC_FAM.pdf PCF21XXC_FAM documents N N 2015-05-06 LCD drivers /docs/en/data-sheet/PCF21XXC_FAM.pdf /docs/en/data-sheet/PCF21XXC_FAM.pdf Data Sheet N 980000996212993340 2024-07-12 pdf N en May 6, 2015 980000996212993340 Data Sheet Y N LCD drivers 应用笔记 Application Note 2 2 1.0 English 1442086925102718658114 PSP 931.7 KB None None documents None 1442086925102718658114 /docs/en/application-note/AN11267.pdf 931745 /docs/en/application-note/AN11267.pdf AN11267 documents N N 2016-07-11 EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf /docs/en/application-note/AN11267.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 6, 2015 645036621402383989 Application Note Y N EMC and system level ESD design guidelines for LCD drivers 3 1.0 English 1442087330310721534478 PSP 763.2 KB None None documents None 1442087330310721534478 /docs/en/application-note/AN10853.pdf 763238 /docs/en/application-note/AN10853.pdf AN10853 documents N N 2016-07-11 ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf /docs/en/application-note/AN10853.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 14, 2013 645036621402383989 Application Note Y N ESD and EMC sensitivity of IC 用户指南 User Guide 2 4 6.0 Japanese 1442125286808710770774ja PSP 751.0 KB None None documents None 1442125286808710770774 /docs/ja/user-guide/UM10204.pdf 750958 /docs/ja/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/ja/user-guide/UM10204.pdf /docs/ja/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 ja Apr 28, 2014 132339537837198660 User Guide Y N I2C-bus specification and user manual 7.0 English NXP Semiconductors developed a simple bidirectional 2-wire bus for efficient inter-IC control. This bus is called the Inter-IC or I2C-bus. Only two bus lines are required: a serial data line (SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or up to 3.4 Mbit/s in the High-speed mode. 1442125286808710770774 PSP 751.0 KB None None documents None 1442125286808710770774 /docs/en/user-guide/UM10204.pdf 750958 /docs/en/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/en/user-guide/UM10204.pdf /docs/en/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 pdf N en Oct 1, 2021 132339537837198660 User Guide Y N I2C-bus specification and user manual 5 1.0 English 1442125429801702674389 PSP 749.6 KB Registration without Disclaimer None documents Extended 1442125429801702674389 /secured/assets/documents/en/user-guide/UM10528.pdf 749626 /secured/assets/documents/en/user-guide/UM10528.pdf UM10528 documents Y N 2012-02-06 PCA9632 demonstration board OM13269 /webapp/Download?colCode=UM10528&lang_cd=zh /secured/assets/documents/en/user-guide/UM10528.pdf User Guide N 132339537837198660 2025-02-10 pdf Y en Feb 6, 2012 132339537837198660 User Guide Y N PCA9632 demonstration board OM13269 封装信息 Package Information 1 6 1.0 English 1455078737225720891175 PSP 528.9 KB None None documents None 1455078737225720891175 /docs/en/package-information/SOT158-1.pdf 528911 /docs/en/package-information/SOT158-1.pdf SOT158-1 documents N N 2016-02-12 plastic very small outline package; 40 leads /docs/en/package-information/SOT158-1.pdf /docs/en/package-information/SOT158-1.pdf Package Information N 302435339416912908 2024-07-12 pdf N en Feb 8, 2016 302435339416912908 Package Information Y N plastic very small outline package; 40 leads 包装信息 Packing Information 1 7 1.0 English 1442131173943703565646 PSP 329.2 KB None None documents None 1442131173943703565646 /docs/en/packing/SOT158-1_118.pdf 329184 /docs/en/packing/SOT158-1_118.pdf SOT158-1_118 documents N N 2013-04-17 VSO40; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /docs/en/packing/SOT158-1_118.pdf /docs/en/packing/SOT158-1_118.pdf Packing Information N 145666923842250347 2024-07-12 pdf N en Apr 12, 2013 145666923842250347 Packing Information Y N VSO40; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 支持信息 Supporting Information 1 8 1.0 English SSOP, TSSOP & VSO FOOTPRINT (WAVE SOLDERING) 1442126381432716559822 PSP 16.6 KB None None documents None 1442126381432716559822 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf 16645 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf SSOP-TSSOP-VSO-WAVE documents N N 2016-10-08 Footprint for wave soldering /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf Supporting Information N 371282830530968666 2024-10-21 pdf N en Oct 8, 2009 371282830530968666 Supporting Information Y N Footprint for wave soldering false 0 PCF21XXC_FAMILY downloads zh-Hans true 1 Y PSP 包装信息 1 /docs/en/packing/SOT158-1_118.pdf 2013-04-17 1442131173943703565646 PSP 7 Apr 12, 2013 Packing Information None /docs/en/packing/SOT158-1_118.pdf English documents 329184 None 145666923842250347 2024-07-12 N /docs/en/packing/SOT158-1_118.pdf VSO40; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /docs/en/packing/SOT158-1_118.pdf documents 145666923842250347 Packing Information N en None Y pdf 1.0 N N VSO40; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 329.2 KB SOT158-1_118 N 1442131173943703565646 封装信息 1 /docs/en/package-information/SOT158-1.pdf 2016-02-12 1455078737225720891175 PSP 6 Feb 8, 2016 Package Information None /docs/en/package-information/SOT158-1.pdf English documents 528911 None 302435339416912908 2024-07-12 N /docs/en/package-information/SOT158-1.pdf plastic very small outline package; 40 leads /docs/en/package-information/SOT158-1.pdf documents 302435339416912908 Package Information N en None Y pdf 1.0 N N plastic very small outline package; 40 leads 528.9 KB SOT158-1 N 1455078737225720891175 应用笔记 2 /docs/en/application-note/AN11267.pdf 2016-07-11 1442086925102718658114 PSP 2 Mar 6, 2015 Application Note None /docs/en/application-note/AN11267.pdf English documents 931745 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN11267.pdf EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N EMC and system level ESD design guidelines for LCD drivers 931.7 KB AN11267 N 1442086925102718658114 /docs/en/application-note/AN10853.pdf 2016-07-11 1442087330310721534478 PSP 3 Mar 14, 2013 Application Note None /docs/en/application-note/AN10853.pdf English documents 763238 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN10853.pdf ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N ESD and EMC sensitivity of IC 763.2 KB AN10853 N 1442087330310721534478 支持信息 1 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf 2016-10-08 1442126381432716559822 PSP 8 Oct 8, 2009 Supporting Information SSOP, TSSOP & VSO FOOTPRINT (WAVE SOLDERING) None /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf English documents 16645 None 371282830530968666 2024-10-21 N /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf Footprint for wave soldering /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.0 N N Footprint for wave soldering 16.6 KB SSOP-TSSOP-VSO-WAVE N 1442126381432716559822 数据手册 1 /docs/en/data-sheet/PCF21XXC_FAM.pdf 2015-05-06 1442068575281715527896 PSP 1 May 6, 2015 Data Sheet None /docs/en/data-sheet/PCF21XXC_FAM.pdf English documents 259974 None 980000996212993340 2024-07-12 N /docs/en/data-sheet/PCF21XXC_FAM.pdf LCD drivers /docs/en/data-sheet/PCF21XXC_FAM.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3.0 N N LCD drivers 260.0 KB PCF21XXC_FAM N 1442068575281715527896 用户指南 2 /docs/en/user-guide/UM10204.pdf 2016-07-12 1442125286808710770774 PSP 4 Oct 1, 2021 User Guide NXP Semiconductors developed a simple bidirectional 2-wire bus for efficient inter-IC control. This bus is called the Inter-IC or I2C-bus. Only two bus lines are required: a serial data line (SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or up to 3.4 Mbit/s in the High-speed mode. None /docs/en/user-guide/UM10204.pdf English documents 750958 None 132339537837198660 2024-10-24 N /docs/en/user-guide/UM10204.pdf I2C-bus specification and user manual /docs/en/user-guide/UM10204.pdf documents 132339537837198660 User Guide N en None Y pdf 7.0 N N I2C-bus specification and user manual 751.0 KB UM10204 N 1442125286808710770774 /secured/assets/documents/en/user-guide/UM10528.pdf 2012-02-06 1442125429801702674389 PSP 5 Feb 6, 2012 User Guide Registration without Disclaimer /secured/assets/documents/en/user-guide/UM10528.pdf English documents 749626 None 132339537837198660 2025-02-10 Y /webapp/Download?colCode=UM10528&lang_cd=zh PCA9632 demonstration board OM13269 /secured/assets/documents/en/user-guide/UM10528.pdf documents 132339537837198660 User Guide N en Extended Y pdf 1.0 Y N PCA9632 demonstration board OM13269 749.6 KB UM10528 N 1442125429801702674389 true Y Products
