高性能NFC集成式读卡器解决方案

PR601HL
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

简介

这些模块提供了前所未有的集成度，将多个分立IC的功能结合在单个封装中，有助于开发紧凑型、高性价比的非接触式读卡器系统，适用于门禁和工业应用。该模块包括微控制器功能且支持基于13.56 MHz的多种非接触式读卡器协议。

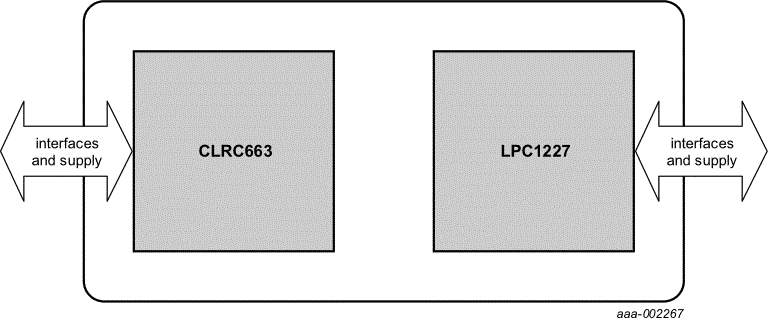

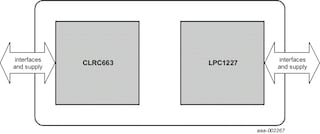

该封装包含两个芯片：

  1. LPC1227FBD48/301
  2. CLRC66301HN1

数据表中规定的LPC1227的所有针脚在读卡器模块中并非都有提供。

器件在封装内无任何互连。这实现了系统开发过程中对所有信号的访问。

简介

CLRC663

CLRC663是一款高度集成的收发器IC，用于13.56 MHz频率的无接触通信。该收发器IC利用非凡的调制和解调概念，完全集成了13.56 MHz时所有类型的非接触式通信方式和协议。

CLRC663收发器IC支持以下不同的工作模式：

  • 支持ISO/IEC 14443A和MIFARE IC的读/写模式
  • 支持ISO/IEC 14443B的读/写模式
  • 支持FeliCa方案的读/写模式
  • 支持ISO/IEC 15693的读/写模式
  • 支持ICODE EPC UID/ EPC OTP的读/写模式
  • 支持ISO/IEC 18000-3 Mode 3的读/写模式
  • NFC P2P启动器

CLRC663内部发射器能够驱动读写器天线，专门与ISO/IEC 14443A和MIFARE产品卡和应答器进行通信，而无需额外的电路。接收器模块可稳定、高效地解调和解码来自ISO 14443A和MIFARE兼容型卡和应答器的信号。数字模块管理全部ISO 14443A成帧与错误检测（奇偶校验和CRC）功能。CLRC663支持MIFARE Classic® 1K和4K存储器、MIFARE Ultralight®、MIFARE Ultralight C®、MIFARE Plus®和MIFARE® DESFire®产品。CLRC663支持免接触式通信，在两个方向上使用高达848 kBd的较高MIFARE IC传输速率。

在正确实施振荡器、电源、线圈等额外组件以及正确实施ISO/IEC 14443-4和/或ISO/IEC 14443B防冲突等标准化协议的情况下，CLRC663支持ISO/IEC 14443B读/写通信方案的所有层。

CLRC663收发器IC具有FeliCa读/写模式，支持FeliCa通信方案。接收器可稳定、高效地解调和解码FeliCa编码信号的电路。数字部件处理FeliCa成帧和CRC等错误检测。CLRC663支持采用FeliCa较高的传输速率(高达424 kb/s)进行双向非接触式通信。CLRC663支持符合ISO/IEC15693、EPC UID和ISO/IEC 18000-3模式3标准的近距离协议。恩智浦的全系列近距离产品也得到其支持，实现针对中程距离读卡器应用的可读性。

提供以下主机接口：

  • 串行外设接口(SPI)
  • 串行UART(类似于RS232，电压电平取决于引脚电压电源)
  • I²C总线接口 (已实施两个版本：I2C和I2CL)

LPC1227

LPC1227是基于ARM Cortex-M0的微处理器，适合具有高集成度和低功耗的嵌入式应用。ARM Cortex-M0是新一代微控制器内核，具有增强型调试特性、高度集成等多种系统增强功能。除ARM Cortex-M0外，LPC1X还具有事件处理程序API，可限制ARM Cortex-M0 CPU的中断负载，并通过减轻主CPU处理负载实现额外的功耗节省。

LPC1227工作时CPU频率高达33 MHz，且包含多达128 kB的闪存和8 kB的数据存储器。

并非LPC1227产品的所有连接都由PR601进行实施。

更多
