H桥电机驱动器, 2-7V, 1.4A, 200kHz

MC34933 使用寿命终止
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

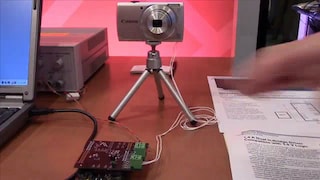

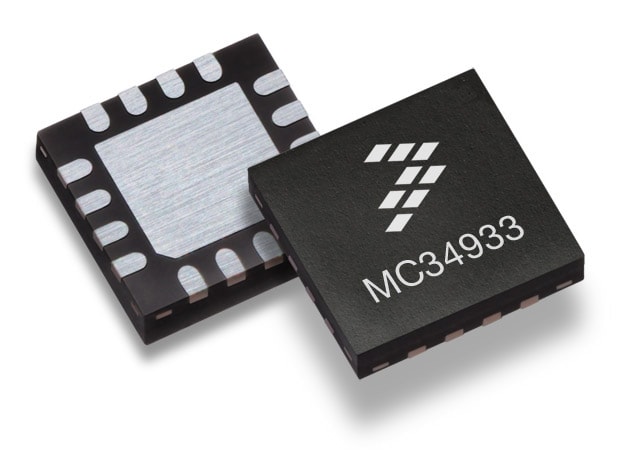

恩智浦®MC34933是一个双通道H桥驱动器，具有多种应用，如自动聚焦控制，非常适用于数码相机市场。

采用恩智浦专有SMOS8 Bi CMOS工艺，为客户提供低功耗器件，并为电机驱动电源提供100uA的最大静态电流，为控制逻辑电源提供400uA的最大静态电流

采用VCC检测电路，检测逻辑电源开关何时处于关闭状态，最大电流为1uA，可延长电池使用时间

还为H桥驱动器提供热保护电路，可避免对IC内部功率MOSFET电路的损害。

产品详情

框图

恩智浦MC34933电力驱动框图

NXP MC34933 Power Actuation Block Diagram
获取框图PDF

特性

主要特性

  • 内置双通道H桥驱动器
  • H桥工作电压：2.0V~7.0V
  • 输出电流：1.0 A @TA=25°C
  • 总导通电阻低，0.8Ω (典型值)，1.0Ω (最大值) @ TA=25 °C
  • 双通道并行驱动器，导通电阻0.4Ω (典型值)。最大直流电流为1.4A
  • 高达200kHz的PWM控制输入频率
  • 内置直通电流的预防电路
  • 内置充电泵电路(外部电容种类)
  • 为逻辑电源电压提供VCC低压检测
  • 为H桥驱动器提供热检测
  • 并行接口和输入控制
  • 环境工作温度：–20°C（最低），85°C（最高）

产品长期供货计划

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

MC34933EP
数据手册

使用寿命终止

N true 0 PSPMC34933zh 3 产品变更通知 Product Change Notice t526 1 应用笔记 Application Note t789 1 数据手册 Data Sheet t520 1 zh 1 1 3.0 English The 34933 is a two channel H-Bridge driver aimed at the digital camera market 1280520194918703388018 PSP 836.2 KB None documents None 1280520194918703388018 /docs/en/data-sheet/MC34933.pdf 836206 /docs/en/data-sheet/MC34933.pdf MC34933 N N 2010-07-30 MC34933, 1.4 A Dual H-Bridge Driver Compatible with 3.0 V Logic - Data Sheet /docs/en/data-sheet/MC34933.pdf /docs/en/data-sheet/MC34933.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Sep 4, 2014 Data Sheet t520 数据手册 Data Sheet N MC34933, 1.4 A Dual H-Bridge Driver Compatible with 3.0 V Logic - Data Sheet false zh zh 应用笔记 Application Note 1 2 1.0 English This document presents the main concepts behind the wheel location algorithm of the KWL software. The document details the approach used and explains how this led to the current implementation. 1485456925034706793334 PSP 6.7 MB Registration without Disclaimer None documents Extended 1485456925034706793334 /secured/assets/documents/en/application-note/AN5322.pdf 6749797 /secured/assets/documents/en/application-note/AN5322.pdf AN5322 documents Y N 2017-01-26 AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note /webapp/Download?colCode=AN5322&lang_cd=zh /secured/assets/documents/en/application-note/AN5322.pdf Application Note N 645036621402383989 2024-01-19 pdf Y en Jan 25, 2017 645036621402383989 Application Note Y N AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note 产品变更通知 Product Change Notice 1 3 0 English 1405107633420702476736 PSP 47.3 KB None None documents None 1405107633420702476736 /docs/en/product-change-notice/PCN16331.htm 47341 /docs/en/product-change-notice/PCN16331.htm PCN16331 documents N 2014-07-11 Copper Wire and Case Outline Qualification (QFN) /docs/en/product-change-notice/PCN16331.htm /docs/en/product-change-notice/PCN16331.htm Product Change Notice N 454076741825495278 2022-12-07 htm en Jul 11, 2014 454076741825495278 Product Change Notice D N Copper Wire and Case Outline Qualification (QFN) false 0 MC34933 downloads zh-Hans true 1 Y PSP 产品变更通知 1 /docs/en/product-change-notice/PCN16331.htm 2014-07-11 1405107633420702476736 PSP 3 Jul 11, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16331.htm English documents 47341 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16331.htm Copper Wire and Case Outline Qualification (QFN) /docs/en/product-change-notice/PCN16331.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N Copper Wire and Case Outline Qualification (QFN) 47.3 KB PCN16331 N 1405107633420702476736 应用笔记 1 /secured/assets/documents/en/application-note/AN5322.pdf 2017-01-26 1485456925034706793334 PSP 2 Jan 25, 2017 Application Note This document presents the main concepts behind the wheel location algorithm of the KWL software. The document details the approach used and explains how this led to the current implementation. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5322.pdf English documents 6749797 None 645036621402383989 2024-01-19 Y /webapp/Download?colCode=AN5322&lang_cd=zh AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note /secured/assets/documents/en/application-note/AN5322.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note 6.7 MB AN5322 N 1485456925034706793334 数据手册 1 /docs/en/data-sheet/MC34933.pdf 2010-07-30 1280520194918703388018 PSP 1 Sep 4, 2014 Data Sheet 数据手册 The 34933 is a two channel H-Bridge driver aimed at the digital camera market None /docs/en/data-sheet/MC34933.pdf English 836206 Data Sheet 2022-12-07 N /docs/en/data-sheet/MC34933.pdf MC34933, 1.4 A Dual H-Bridge Driver Compatible with 3.0 V Logic - Data Sheet /docs/en/data-sheet/MC34933.pdf documents 980000996212993340 Data Sheet N Y en None t520 pdf 3.0 N N MC34933, 1.4 A Dual H-Bridge Driver Compatible with 3.0 V Logic - Data Sheet 836.2 KB MC34933 N 1280520194918703388018 true Y Products
