Aurora Nexus Upgrade Kit for the Gigabit TAP Probe[924-26086_B]亮点
紧凑列表

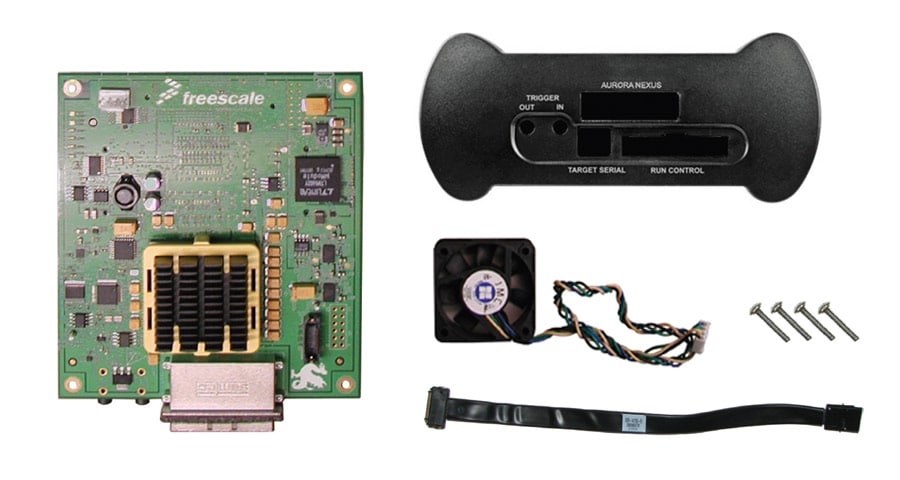

Gigabit TAP跟踪子卡升级套件
This Upgrade kit adds TRACE capability to the Gigabit TAP Probe. This Trace capability is available for select NXP® Integrated Circuits only – see “Supported Devices” for up to date compatibility.
This NXP Trace card connects to the NXP device via an Aurora SerDes communications channel. 该卡提供2.5GHz 和3.125GHz频率的1或2通道Aurora通道选择，具体取决于电路板硬件。该卡有4 GB的RAM，可存储大量Nexus格式的跟踪数据。
跟踪卡通过一条超高速总线与Gigabit TAP主板相连。Trace data is transferred to the host computer workstation running CodeWarrior® via the Gigabit TAP’s Gigabit Ethernet connection.
使用此升级套件时，需要先移除您现有的 Gigabit TAP外套，在安装完卡后，再将外套重新盖上。参见“下载”选项卡上的安装说明。
The Nexus standard includes standard JTAG signals on the Trace connector. 因此，如果您有一个22或70针的Aurora连接器和跟踪卡/线缆，就无需JTAG调试器接头。
**Do not order this upgrade kit unless you have a Gigabit TAP in which to install the card. 此卡需要Gigabit TAP调试器，否则无法运行。**
