QorIQ® FRDM-LS1012A板

FRDM-LS1012A
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

Archived content is no longer updated and is made available for historical reference only.

QorIQ® FRDM-LS1012A板是一款超低功耗开发平台，适用于基于Arm® Cortex®-A53处理器的QorIQ LS1012A系列网络处理器。

  • 该硬件的特性包括可轻松访问处理器I/O，配备电池，低功率运行，采用可搭配扩展板的标准规格，以及用于闪存编程和运行控制的内置调试接口。
  • FRDM-LS1012A受到众多恩智浦® 和第三方开发软件的支持。
  • 我们面向FRDM-LS1012A提供了功能丰富的Linux开发环境，目前为独立版本，未来将整合到跨平台的版本之中。请访问QorIQ SDK，下载最新版本。

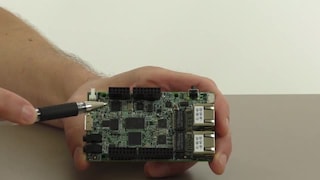

让我们开始试用FRDM-LS1012A！您可以按照 此处如何快速入门的详细说明来操作。

产品详情

特征

微控制器

    LS1012ASE7HKA MCU

  • 800 MHz CPU
  • 1GT/s DDR3L
  • 212 FC-LGA

电源管理

  • VR5100电源管理IC

数据连接

  • 两个1000Base-T以太网接口，带RJ-45接头
  • USB2.0/3.0 OTG Micro A/B接头
  • Arduino® Shield扩展接头，带I²C、SPI、UART和GPIO连接
  • 面向调试和供电的USB2.0 Micro A/B接头
  • 利用Cortex 10针JTAG接头和CMSIS DAP通过K20微控制器进行额外的调试

存储器

  • 512 MB QuadSPI NOR闪存
  • 4 GB DDR3L DRAM

音频

  • SGTL5000 Audio ADC / DAC，带3.5 mm麦克风和耳机插口
