Fault-tolerant CAN transceiver

TJA1054A
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

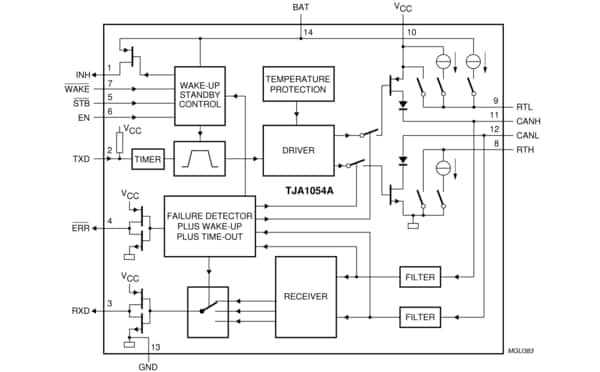

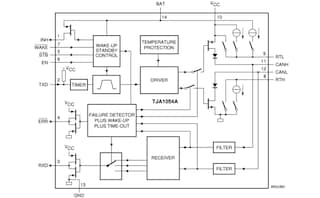

The TJA1054A is the interface between the protocol controller and the physical bus wires in a Controller Area Network (CAN). It is primarily intended for low-speed applications up to 125 kBd in passenger cars. The device provides differential receive and transmit capability but will switch to single-wire transmitter and/or receiver in error conditions.

The TJA1054A is the ElectroStatic Discharge (ESD) improved version of the TJA1054.

The TJA1054AT is, as the TJA1054T, pin and downwards compatible with the PCA82C252T and the TJA1053T. This means that these two devices can be replaced by the TJA1054AT or the TJA1054T with retention of all functions.

The important improvements of the TJA1054 and the TJA1054A with respect to the PCA82C252 and the TJA1053 are:

  • Very low ElectroMagnetic Emission (EME) due to a very good matching of the CANL and CANH output signals
  • Good ElectroMagnetic Emission (EMI), especially in low power modes
  • Full wake-up capability during bus failures
  • Extended bus failure management including short-circuit of the CANH bus line to VCC
  • Support for easy system fault diagnosis
  • Two-edge sensitive wake-up input signal via pin 1
