920-960 MHz, 56 W Avg., 28 V Airfast® RF Power LDMOS Transistors
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
The AFT09H310-03SR6 and AFT09H310-04GSR6 56 watt asymmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications covering the frequency range of 920 to 960 MHz.
产品详情

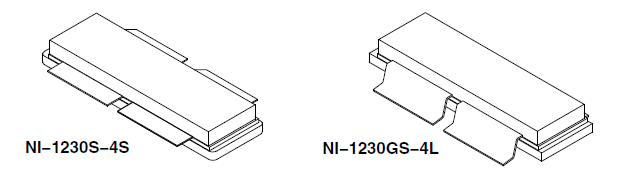

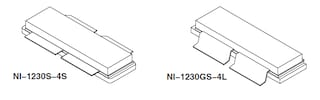

部件编号包含： AFT09H310-03S, AFT09H310-04GS.
RF Performance Table
900 MHz
Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 680 mA, VGSB = 0.4 Vdc, Pout = 56 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 920 MHz | 17.9 | 47.4 | 8.2 | –28.5 |
| 940 MHz | 18.0 | 48.5 | 8.1 | –31.2 |
| 960 MHz | 18.2 | 47.3 | 7.9 | –35.0 |
