80C51 8位微控制器系列，8KB/16KB/32KB/64KB OTP，512B/512B/512B/1KB RAM，低压（2.7至5.5 V），低功率，高速（30/33 MHz）

P87C51RD2FA
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

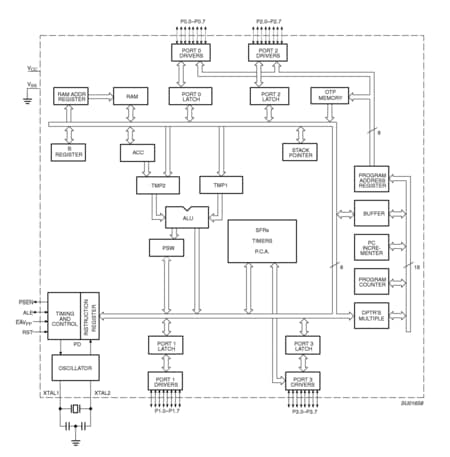

滚动图片以放大

这些设备属通过高级CMOS工艺制造的单芯片8位微控制器，是80C51微控制器系列的衍生产品。指令集与80C51指令集100%兼容。

通过采用并行编程编程OTP位(OX2)，这些设备支持6时钟/12时钟模式选择。此外，时钟控制寄存器(CKCON)中的SFR位(X2)也可在6时钟/12时钟模式间选择。

这些设备还具有四个8位I/O端口，三个16位定时器/事件计数器，一个多源，四优先级嵌套中断结构，一个增强型UART以及片内振荡器和定时电路。

P87C51RA2/RB2/RC2/RD2的新增功能使其成为功能强大的微控制器，应用于需要脉宽调制、高速I/O和向上/向下计数能力的应用中（如电机控制）。
