728-960 MHz, 3.2 W Avg., 28 V RF LDMOS Wideband Integrated Power Amplifiers
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

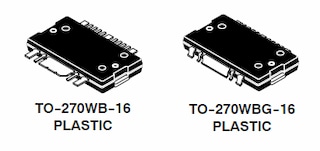

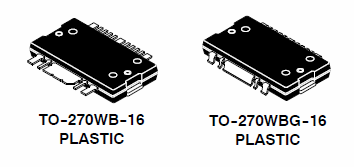

The MMRF2005N wideband integrated circuit is designed with on-chip matching that makes it usable from 728 to 960 MHz. This multi-stage structure is rated for 24 to 32 V operation and is ideal for applications including radio communications, data links and UHF radar.
产品详情
RF Performance Tables
Driver Applicaiton — 900 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ1 = 106 mA, IDQ2 = 285 mA, Pout = 3.2 W Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 920 MHz | 36.6 | 16.1 | –48.0 |
| 940 MHz | 36.8 | 16.7 | –48.7 |
| 960 MHz | 36.6 | 17.3 | –48.6 |
- Capable of Handling 10:1 VSWR, @ 32 Vdc, 940 MHz, 48 W CW Output Power (3 dB Input Overdrive from Rated Pout)
Driver Applicaiton — 700 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ1 = 106 mA, IDQ2 = 285 mA, Pout = 3.2 W Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 728 MHz | 36.4 | 16.1 | –47.7 |
| 748 MHz | 36.4 | 16.1 | –47.8 |
| 768 MHz | 36.4 | 16.0 | –47.9 |
