5 V、3.3 V和2.5 V的UART，带有64字节FIFO

SC16C750B
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

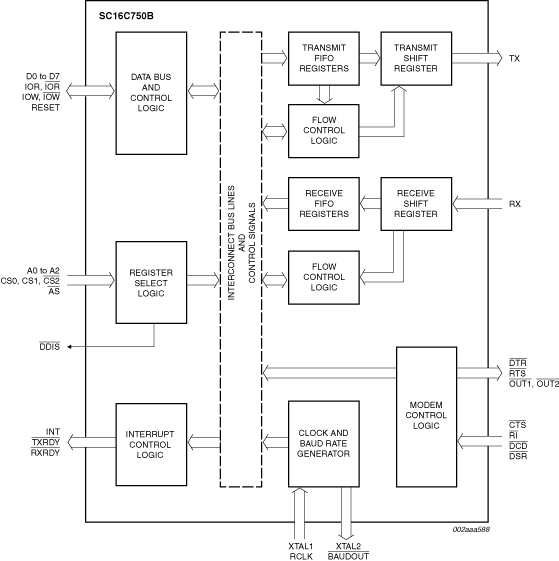

SC16C750B是一款通用异步接收器和发送器(UART)，用于串行数据通信。其主要功能是将并行数据转换成串行数据或将串行数据转换成并行数据。UART可处理最高3 Mbit/s的串行数据速率。

SC16C750B的引脚兼容TL16C750，其功能等同于16C450。对控制寄存器进行编程可启用SC16C750B的附加功能。其中一些附加功能为64字节接收和发送FIFO、自动硬件流控制。可选的自动流控制功能通过使用RTS输出和CTS输入信号自动控制串行数据流，在FIFO模式中显著降低软件负载并提升系统效率。SC16C750B还提供通过FIFO触发电平以及TXRDY和RXRDY信号进行的DMA模式数据传输。板载状态寄存器为用户提供误差指示、操作状态和调制解调器接口控制。可定制系统中断以满足用户需求。内部环回能力允许进行板载诊断。

SC16C750B工作在5 V、3.3 V和2.5 V以及工业温度范围下，且提供塑料PLCC44、LQFP64和HVQFN32封装。

购买/参数

2 结果

不包含 2 不推荐用于新设计

部件

展开描述

计算机辅助设计模型

fmax (MHz)

渠道

特点

Other features

Operating Temperature (°C)

Data transfer rate (Mb/s)

功能

SC16C750BIB64
数据手册

替换部件: SC16C750BIBS

—

1

—

—

—

—

SC16C750B

SC16C750BIBS
数据手册

替换部件: SC16C752BIBS

48

1

16 or 64 Bytes FIFO / DMA mode / HW Flow Control

4-level receive trigger level

45

3

SC16C752B
