5 GHz Wi-Fi® 6 Front-end IC
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

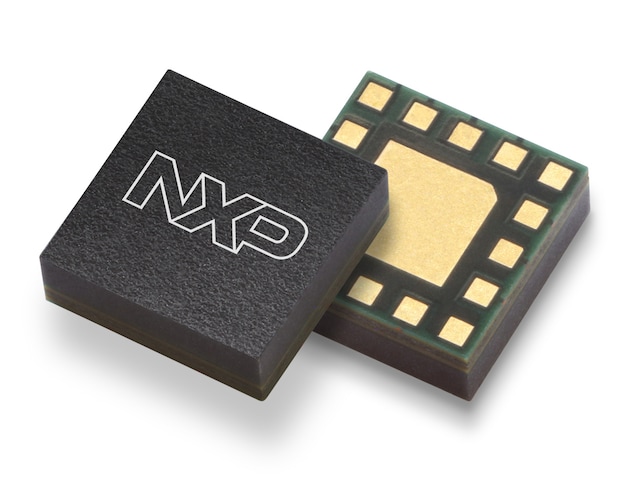

The WLAN7102C is a WLAN 5 GHz RF front-end IC in a 2 mm x 2 mm HWFLGA16 package.
The WLAN7102C is designed for Wi-Fi 6 applications. It includes a power amplifier with logarithmic power detector, a low noise receive amplifier (LNA) and a single pole double throw (SPDT) switch. The WLAN7102C also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.
产品详情
Features
- Fully integrated Wi-Fi 6 RF front-end IC with high linearity and low-power modes
- EVMdyn = -43 dB, 802.11ax MCS 10/11 HE80, Po = 14 dBm
- Full high band 5150 MHz to 5925 MHz
- High power efficiency
- Requires no external matching components, DC free input/output ports
- 3 Tx operation modes enabling flexibility for power efficiency adaptation
- 2 Rx operation modes enabling large gain step between LNA mode and bypass mode
- Integrated logarithmic power detector
- ESD protection on all pins
- Human Body Model (HBM) according to ANSI/ ESDA/JEDEC standard JS-001 exceeds 2 kV
- Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V
- Integrated RF decoupling capacitors for all VCC and control pins
- RoHS compliant
- Wi-Fi 6 support
- Smartphones, tablets, netbooks, and other portable computing devices
- Module applications for embedded systems
