2496-2690 MHz，50 W平均值，28 V Airfast® LDMOS射频功率晶体管

AFT26H250W03S
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

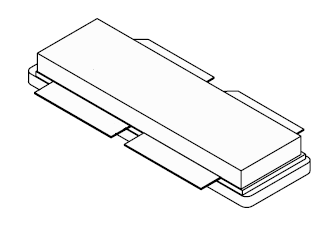

滚动图片以放大

AFT26H250W03SR6 50 W非对称Doherty LDMOS射频功率晶体管专为2496到2690 MHz频率且需要宽瞬时带宽的移动通信基站应用而设计。

产品详情

选择区域:

RF Performance Table

2600 MHz

典型Doherty单载波W-CDMA性能：VDD = 28 Vdc，IDQA = 700 mA，VGSB = 0.4 Vdc，平均输出功率 = 50 W，输入信号PAR = 9.9 dB @ 0.01% CCDF。
频率 Gps
(dB)		 ηD
(%)		 输出PAR
(dB)		 ACPR
(dBc)
2496 MHz14.144.68.1–31.5
2590 MHz14.444.98.1–33.8
2690 MHz14.244.27.9–37.6
