2300-2400 MHz, 51 W Avg., 28 V Airfast® RF Power LDMOS Transistor
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

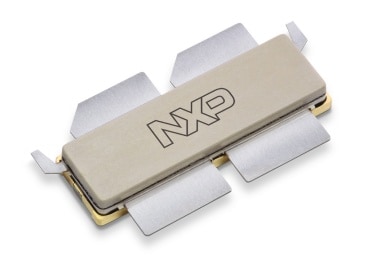

The A2T23H200W23S 51 W asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2300 to 2400 MHz.
产品详情
RF Performance Table
2300 MHz
Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQA = 500 mA, VGSB = 0.5 Vdc, Pout = 51 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 2300 MHz | 15.5 | 50.7 | 7.7 | –33.4 |
| 2350 MHz | 15.6 | 50.6 | 7.6 | –35.2 |
| 2400 MHz | 15.5 | 50.4 | 7.4 | –35.6 |
