2300-2400 MHz，45 W平均值，28 V Airfast® LDMOS射频功率晶体管

AFT23H201-24S
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

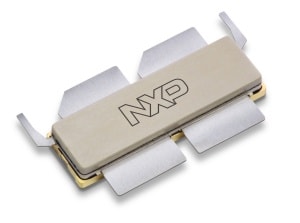

滚动图片以放大

AFT23H201-24SR6 45 W非对称Doherty LDMOS射频功率晶体管专为2300到2400 MHz频率范围的移动通信基站应用而设计。

产品详情

选择区域:

RF Performance Table

2300 MHz

典型Doherty单载波W-CDMA性能：VDD = 28 Vdc，IDQA = 500 mA，VGSB = 0.8 Vdc，平均输出功率 = 45 W，输入信号PAR = 9.9 dB @ 0.01% CCDF。
频率 Gps
(dB)		 ηD
(%)		 输出PAR
(dB)		 ACPR
(dBc)
2300 MHz15.646.28.1–28.9
2350 MHz15.946.58.1–30.4
2400 MHz16.145.38.0–33.9
