2110-2170 MHz，50 W平均值，28 V Airfast® LDMOS射频功率晶体管

AFT21S230S
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

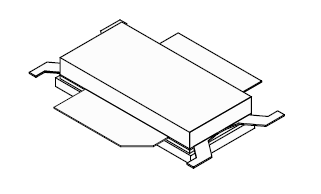

滚动图片以放大

AFT21S230 50 W LDMOS射频功率晶体管专为频率范围为2110至2170 MHz之间的移动通信基站而设计。

产品详情

选择区域:

RF Performance Table

2100 MHz

典型单载波W-CDMA性能：VDD = 28 Vdc，IDQ = 1500 mA，平均输出功率 = 50 W，输入信号PAR = 9.9 dB @ 0.01% CCDF。
频率 Gps
(dB)		 ηD
(%)		 输出PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
2110 MHz16.730.57.2–35.7–19
2140 MHz17.031.07.1–35.4–20
2170 MHz17.231.87.0–34.8–15
