1800-2200 MHz, 5.3 W Avg., 28 V Airfast® RF LDMOS Wideband Integrated Amplifiers
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

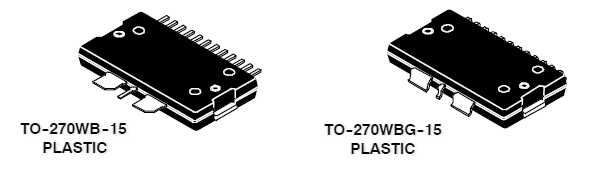

A2I22D050N宽带集成电路具有片上匹配功能，适用于1800至2200 MHz的频率范围。这个多级结构的额定电压为24至32 V，涵盖所有典型的移动通信基站调制格式。
产品详情
射频性能表
2100 MHz
Typical Single-Carrier W-CDMA Characterization Performance: VDD = 28 Vdc, IDQ1(A+B) = 80 mA, IDQ2(A+B) = 520 mA, Pout = 5.3 W Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 2110 MHz | 32.2 | 17.6 | –48.4 |
| 2140 MHz | 32.4 | 17.8 | –48.2 |
| 2170 MHz | 32.6 | 17.9 | –47.0 |
1800 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ1(A+B) = 70 mA, IDQ2(A+B) = 470 mA, Pout = 5.3 W Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 1805 MHz | 31.8 | 18.4 | –47.5 |
| 1840 MHz | 31.7 | 18.2 | –50.6 |
| 1880 MHz | 31.5 | 17.9 | –51.8 |
