16位汽车微控制器

S12R
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

基于16位ROM的MC3S12R微控制器特别为具有稳定代码的大容量汽车多路复用应用而设计，与基于闪存的MC9S12D系列微控制器的引脚完全兼容。

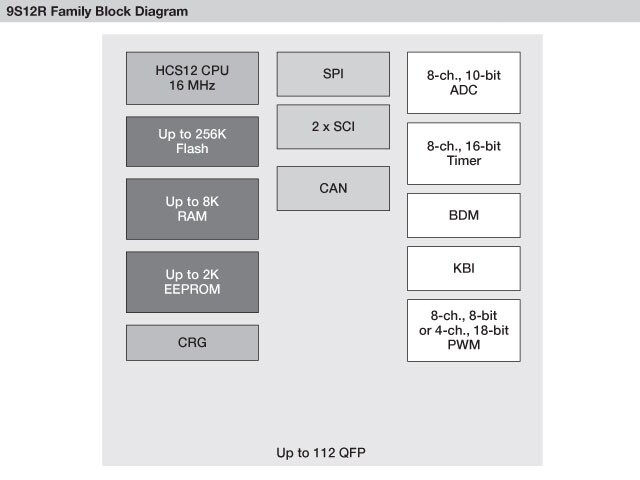

所有MC3S12R系列成员均由标准的片上外设组成，其中包括一个16位中央处理器 (CPU12)、128KB ROM、8KB RAM、两个异步串行通信接口(SCI)、两个串行外设接口 (SPI)、IIC总现、一个增强型捕获定时器(ECT)、两个8通道10位模数转换器 (ADC) 、一个8通道脉宽调制器(PWM)和两个CAN 2.0 A/B软件兼容模块 (MSCAN12)。MC3S12R系列没有集成的 EEPROM。系统资源映射、时钟脉冲振荡、中断控制和总线接口由系统集成模块(SIM)管理。MC3S12R系列具有完整的16位数据通道吞吐量。然而，外部总线能以8位窄模式运行，因此可以连接单个8位宽存储器，降低系统成本。由于包含PLL电路，因此可以根据运行要求调整功耗和性能。除每个模块上提供的I/O端口外，还提供22个I/O端口，具备从停止或等待模式唤醒的停止功能。

N true 0 PSPS12Rzh 11 产品简介 Product Brief t532 1 勘误表 Errata t522 2 参考手册 Reference Manual t877 1 工程设计要点 Technical Notes t521 2 应用笔记 Application Note t789 2 应用笔记软件 Application Note Software t783 1 数据手册 Data Sheet t520 1 用户指南 User Guide t792 1 zh 0 false zh zh 数据手册 Data Sheet 1 1 1.06 English The MC3S12RG128 MCU is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of ROM, 8K bytes of RAM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), IIC-bus, an enhanced capture timer (ECT), two 8-channel 10-bit analog-to-digital converters (ADC), an eight-channel pulse-width modulator (PWM), and up to two CAN 2.0 A, B software compatible modules (MSCAN12). 1137455752564697881555 PSP 2.9 MB None None documents None 1137455752564697881555 /docs/en/data-sheet/MC3S12RG128V1.pdf 2933330 /docs/en/data-sheet/MC3S12RG128V1.pdf MC3S12RG128V1 documents N N 2006-01-16 MC3S12RG128 covers MC3S12RB128, MC3S12R64 - Data Sheet /docs/en/data-sheet/MC3S12RG128V1.pdf /docs/en/data-sheet/MC3S12RG128V1.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Dec 1, 2006 980000996212993340 Data Sheet Y N MC3S12RG128 covers MC3S12RB128, MC3S12R64 - Data Sheet 参考手册 Reference Manual 1 2 4 English S12CPUV2: This manual describes the features and operation of the core (central processing unit, or CPU, and development support functions) used in all HCS12 microcontrollers. For reference, information is provided for the M68HC12. 1057081966191736936200 PSP 3.5 MB Registration without Disclaimer None documents Extended 1057081966191736936200 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf 3485215 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf S12CPUV2 documents Y N 2016-10-31 S12CPUV2 - Reference Manual /webapp/Download?colCode=S12CPUV2&lang_cd=zh /secured/assets/documents/en/reference-manual/S12CPUV2.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Mar 1, 2006 500633505221135046 Reference Manual Y N S12CPUV2 - Reference Manual 应用笔记 Application Note 2 3 2 English Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. 1370470727458723387723 PSP 358.1 KB None None documents None 1370470727458723387723 /docs/en/application-note/AN4731.pdf 358140 /docs/en/application-note/AN4731.pdf AN4731 documents N N 2016-10-31 AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note /docs/en/application-note/AN4731.pdf /docs/en/application-note/AN4731.pdf Application Note N 645036621402383989 2023-10-31 en Dec 27, 2017 645036621402383989 Application Note Y N AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note 2 Chinese Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. 1370470727458723387723zh PSP 358.1 KB None None documents None 1370470727458723387723 /docs/zh/application-note/AN4731.pdf 358140 /docs/zh/application-note/AN4731.pdf AN4731 documents N N 2016-10-31 AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note /docs/zh/application-note/AN4731.pdf /docs/zh/application-note/AN4731.pdf Application Note N 645036621402383989 2023-10-31 pdf N zh Apr 8, 2022 645036621402383989 Application Note Y N AN4731: 理解恩智浦微处理器上的注入电流--应用笔记 4 1 English Describing a set of routines that provides 255 bytes of byte-writable Emulated EEPROM (EEE). The routines performing the programming and erasure of the DFlash are interrupt-driven, leaving the CPU free to perform other tasks while the DFlash memory is being updated. In addition, a 256-byte RAM buffer is used to allow the EEE contents to be read at any time. 1331073423821735973508 PSP 265.6 KB None None documents None 1331073423821735973508 /docs/en/application-note/AN4483.pdf 265617 /docs/en/application-note/AN4483.pdf AN4483 documents N N 2021-07-21 AN4483: Emulated EEPROM Routines for S12P – Application Note /docs/en/application-note/AN4483.pdf /docs/en/application-note/AN4483.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 16, 2012 645036621402383989 Application Note Y N AN4483: Emulated EEPROM Routines for S12P – Application Note 用户指南 User Guide 1 5 1.13 English Operations Manual for Cyclone PRO Stand-Alone Automated Programmer 1222206816195711863706 PSP 4.4 MB None None documents None 1222206816195711863706 /docs/en/user-guide/M68CYCLONPROE.pdf 4423804 /docs/en/user-guide/M68CYCLONPROE.pdf M68CYCLONPROE documents N 2008-09-23 Cyclone Pro User Manual /docs/en/user-guide/M68CYCLONPROE.pdf /docs/en/user-guide/M68CYCLONPROE.pdf User Guide N 132339537837198660 2023-06-19 pdf en Jun 2, 2011 132339537837198660 User Guide Y N Cyclone Pro User Manual 应用笔记软件 Application Note Software 1 6 0 English 1331072776063718766497 PSP 353.1 KB None None documents None 1331072776063718766497 /docs/en/application-note-software/AN4483SW.zip 353066 /docs/en/application-note-software/AN4483SW.zip AN4483SW documents N N 2012-03-06 Software files for application note AN4483 /docs/en/application-note-software/AN4483SW.zip /docs/en/application-note-software/AN4483SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Mar 6, 2012 789425793691620447 Application Note Software D N Software files for application note AN4483 工程设计要点 Technical Notes 2 7 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA™) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=zh /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 8 1 English Differences between MC9S12DG128 and MC3S12RG128 1126260006802698402732 PSP 71.4 KB None None documents None 1126260006802698402732 /docs/en/engineering-bulletin/EB646.pdf 71374 /docs/en/engineering-bulletin/EB646.pdf EB646 documents N 2005-09-09 Differences between MC9S12DG128 and MC3S12RG128 /docs/en/engineering-bulletin/EB646.pdf /docs/en/engineering-bulletin/EB646.pdf Technical Notes N 389245547230346745 2022-12-07 pdf en Feb 27, 2007 389245547230346745 Technical Notes N N Differences between MC9S12DG128 and MC3S12RG128 勘误表 Errata 2 9 01.07 English Mask Set Errata For MC3S12RG128, Mask 2M38B 1164291615932722270214 PSP 28.2 KB None None documents None 1164291615932722270214 /docs/en/errata/MSE3S12RG128_2M38B.htm 28216 /docs/en/errata/MSE3S12RG128_2M38B.htm MSE3S12RG128_2M38B documents N 2006-11-23 MSE3S12RG128_2M38B Mask Set Errata /docs/en/errata/MSE3S12RG128_2M38B.htm /docs/en/errata/MSE3S12RG128_2M38B.htm Errata N 155452329886410597 2022-12-07 htm en Feb 11, 2011 155452329886410597 Errata Y N MSE3S12RG128_2M38B Mask Set Errata 10 01.07 English Mask Set Errata For MC3S12RG128, Mask 1M38B 1164291613733726148003 PSP 31.8 KB None None documents None 1164291613733726148003 /docs/en/errata/MSE3S12RG128_1M38B.htm 31782 /docs/en/errata/MSE3S12RG128_1M38B.htm MSE3S12RG128_1M38B documents N 2006-11-23 MSE3S12RG128_1M38B Mask Set Errata /docs/en/errata/MSE3S12RG128_1M38B.htm /docs/en/errata/MSE3S12RG128_1M38B.htm Errata N 155452329886410597 2022-12-07 htm en Feb 11, 2011 155452329886410597 Errata Y N MSE3S12RG128_1M38B Mask Set Errata 产品简介 Product Brief 1 11 1 English All MC3S12R-Family members are composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of ROM, 8K bytes of RAM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), IIC-bus, an enhanced capture timer (ECT), two 8-channel 10-bit analog-to-digital converters (ADC), an eight-channel pulse-width modulator (PWM), and up to two CAN 2.0 A, B software compatible modules (MSCAN12). 1137455654088707431738 PSP 453.9 KB None None documents None 1137455654088707431738 /docs/en/product-brief/MC3S12RFAMPB.pdf 453917 /docs/en/product-brief/MC3S12RFAMPB.pdf MC3S12RFAMPB documents N 2006-01-16 MC3S12R-Family 16-Bit Microcontroller - Product Brief /docs/en/product-brief/MC3S12RFAMPB.pdf /docs/en/product-brief/MC3S12RFAMPB.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Nov 1, 2005 899114358132306053 Product Brief Y N MC3S12R-Family 16-Bit Microcontroller - Product Brief false 0 S12R downloads zh-Hans true 1 Y PSP 产品简介 1 /docs/en/product-brief/MC3S12RFAMPB.pdf 2006-01-16 1137455654088707431738 PSP 11 Nov 1, 2005 Product Brief All MC3S12R-Family members are composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of ROM, 8K bytes of RAM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), IIC-bus, an enhanced capture timer (ECT), two 8-channel 10-bit analog-to-digital converters (ADC), an eight-channel pulse-width modulator (PWM), and up to two CAN 2.0 A, B software compatible modules (MSCAN12). None /docs/en/product-brief/MC3S12RFAMPB.pdf English documents 453917 None 899114358132306053 2022-12-07 /docs/en/product-brief/MC3S12RFAMPB.pdf MC3S12R-Family 16-Bit Microcontroller - Product Brief /docs/en/product-brief/MC3S12RFAMPB.pdf documents 899114358132306053 Product Brief N en None Y pdf 1 N MC3S12R-Family 16-Bit Microcontroller - Product Brief 453.9 KB MC3S12RFAMPB N 1137455654088707431738 勘误表 2 /docs/en/errata/MSE3S12RG128_2M38B.htm 2006-11-23 1164291615932722270214 PSP 9 Feb 11, 2011 Errata Mask Set Errata For MC3S12RG128, Mask 2M38B None /docs/en/errata/MSE3S12RG128_2M38B.htm English documents 28216 None 155452329886410597 2022-12-07 /docs/en/errata/MSE3S12RG128_2M38B.htm MSE3S12RG128_2M38B Mask Set Errata /docs/en/errata/MSE3S12RG128_2M38B.htm documents 155452329886410597 Errata N en None Y htm 01.07 N MSE3S12RG128_2M38B Mask Set Errata 28.2 KB MSE3S12RG128_2M38B N 1164291615932722270214 /docs/en/errata/MSE3S12RG128_1M38B.htm 2006-11-23 1164291613733726148003 PSP 10 Feb 11, 2011 Errata Mask Set Errata For MC3S12RG128, Mask 1M38B None /docs/en/errata/MSE3S12RG128_1M38B.htm English documents 31782 None 155452329886410597 2022-12-07 /docs/en/errata/MSE3S12RG128_1M38B.htm MSE3S12RG128_1M38B Mask Set Errata /docs/en/errata/MSE3S12RG128_1M38B.htm documents 155452329886410597 Errata N en None Y htm 01.07 N MSE3S12RG128_1M38B Mask Set Errata 31.8 KB MSE3S12RG128_1M38B N 1164291613733726148003 参考手册 1 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf 2016-10-31 1057081966191736936200 PSP 2 Mar 1, 2006 Reference Manual S12CPUV2: This manual describes the features and operation of the core (central processing unit, or CPU, and development support functions) used in all HCS12 microcontrollers. For reference, information is provided for the M68HC12. Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12CPUV2.pdf English documents 3485215 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=S12CPUV2&lang_cd=zh S12CPUV2 - Reference Manual /secured/assets/documents/en/reference-manual/S12CPUV2.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 4 Y N S12CPUV2 - Reference Manual 3.5 MB S12CPUV2 N 1057081966191736936200 工程设计要点 2 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 7 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA™) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=zh MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 /docs/en/engineering-bulletin/EB646.pdf 2005-09-09 1126260006802698402732 PSP 8 Feb 27, 2007 Technical Notes Differences between MC9S12DG128 and MC3S12RG128 None /docs/en/engineering-bulletin/EB646.pdf English documents 71374 None 389245547230346745 2022-12-07 /docs/en/engineering-bulletin/EB646.pdf Differences between MC9S12DG128 and MC3S12RG128 /docs/en/engineering-bulletin/EB646.pdf documents 389245547230346745 Technical Notes N en None N pdf 1 N Differences between MC9S12DG128 and MC3S12RG128 71.4 KB EB646 N 1126260006802698402732 应用笔记 2 /docs/zh/application-note/AN4731.pdf 2016-10-31 1370470727458723387723zh PSP 3 Apr 8, 2022 Application Note Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. None /docs/zh/application-note/AN4731.pdf Chinese documents 358140 None 645036621402383989 2023-10-31 N /docs/zh/application-note/AN4731.pdf AN4731: 理解恩智浦微处理器上的注入电流--应用笔记 /docs/zh/application-note/AN4731.pdf documents 645036621402383989 Application Note N zh None Y pdf 2 N N AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note 358.1 KB AN4731 N 1370470727458723387723 /docs/en/application-note/AN4483.pdf 2021-07-21 1331073423821735973508 PSP 4 Mar 16, 2012 Application Note Describing a set of routines that provides 255 bytes of byte-writable Emulated EEPROM (EEE). The routines performing the programming and erasure of the DFlash are interrupt-driven, leaving the CPU free to perform other tasks while the DFlash memory is being updated. In addition, a 256-byte RAM buffer is used to allow the EEE contents to be read at any time. None /docs/en/application-note/AN4483.pdf English documents 265617 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4483.pdf AN4483: Emulated EEPROM Routines for S12P – Application Note /docs/en/application-note/AN4483.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4483: Emulated EEPROM Routines for S12P – Application Note 265.6 KB AN4483 N 1331073423821735973508 应用笔记软件 1 /docs/en/application-note-software/AN4483SW.zip 2012-03-06 1331072776063718766497 PSP 6 Mar 6, 2012 Application Note Software None /docs/en/application-note-software/AN4483SW.zip English documents 353066 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4483SW.zip Software files for application note AN4483 /docs/en/application-note-software/AN4483SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Software files for application note AN4483 353.1 KB AN4483SW N 1331072776063718766497 数据手册 1 /docs/en/data-sheet/MC3S12RG128V1.pdf 2006-01-16 1137455752564697881555 PSP 1 Dec 1, 2006 Data Sheet The MC3S12RG128 MCU is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of ROM, 8K bytes of RAM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), IIC-bus, an enhanced capture timer (ECT), two 8-channel 10-bit analog-to-digital converters (ADC), an eight-channel pulse-width modulator (PWM), and up to two CAN 2.0 A, B software compatible modules (MSCAN12). None /docs/en/data-sheet/MC3S12RG128V1.pdf English documents 2933330 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC3S12RG128V1.pdf MC3S12RG128 covers MC3S12RB128, MC3S12R64 - Data Sheet /docs/en/data-sheet/MC3S12RG128V1.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.06 N N MC3S12RG128 covers MC3S12RB128, MC3S12R64 - Data Sheet 2.9 MB MC3S12RG128V1 N 1137455752564697881555 用户指南 1 /docs/en/user-guide/M68CYCLONPROE.pdf 2008-09-23 1222206816195711863706 PSP 5 Jun 2, 2011 User Guide Operations Manual for Cyclone PRO Stand-Alone Automated Programmer None /docs/en/user-guide/M68CYCLONPROE.pdf English documents 4423804 None 132339537837198660 2023-06-19 /docs/en/user-guide/M68CYCLONPROE.pdf Cyclone Pro User Manual /docs/en/user-guide/M68CYCLONPROE.pdf documents 132339537837198660 User Guide N en None Y pdf 1.13 N Cyclone Pro User Manual 4.4 MB M68CYCLONPROE N 1222206816195711863706 true Y Products
