面向高级联网广播、入门级车载信息娱乐系统和数字仪表板应用的32位器件

VF3xxR
正常供应
VFxxx汽车解决方案 - 联网广播

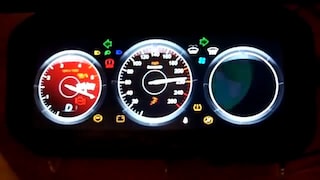

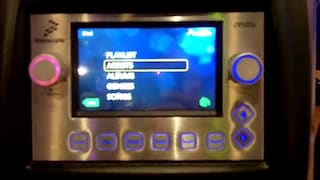

点击播放视频

VFxxx系列汽车电子器件VF3xxR专门针对仪表板等应用而构建，并进行了成本优化。独特的双核(Arm® Cortex®-A5 + Cortex-M4)架构可在一个芯片上同时处理MCU和MPU任务。大容量的1.5 MB片上SRAM和多封装选择，允许客户灵活地从低成本基础联网广播升级到带双显示屏、具有GPU加速的功能丰富、引人入胜的用户界面的入门级信息娱乐系统，且不需要添加外部DRAM。

框图

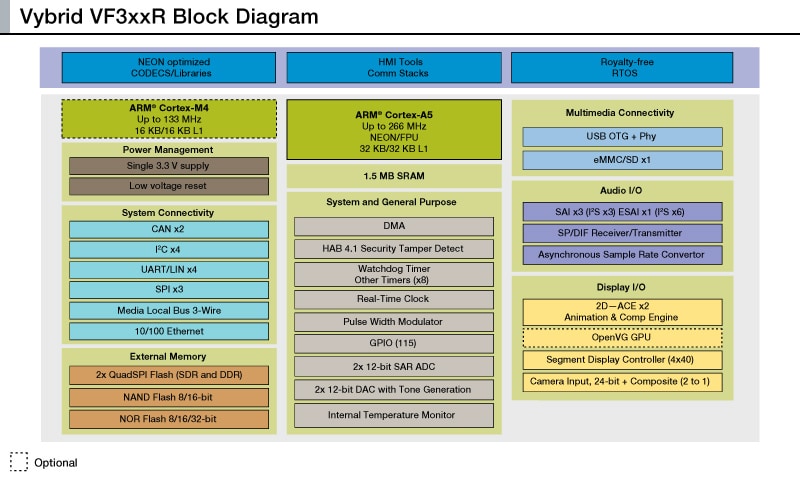

VFxxx R Series VF3xxR Block Diagram

VFxxx R Series VF3xxR Block Diagram
获取框图PDF

特征

硬件特性

  • Cortex-A5运行频率高达266 MHz
  • Cortex-M4运行频率高达133 MHz
  • 1.5 MB片上SRAM
  • WQVGA分辨率的双显示屏支持，带2D动画和组合引擎及OpenVG®GPU
  • 视频ADC，可直接连接至模拟摄像头
  • 本产品包含在恩智浦 产品长期供货计划中，自推出后至少保证15年供货

生产级软件性能

  • 完善的MQX BSP
  • 完善的多媒体框架：播放器、媒体浏览器，提供流、元数据和专辑封面支持
  • 支持 iPhone®、智能手机、USB/SD存储卡的CE连接
  • 全面的音频解码器列表
  • 带标准保修和赔偿责任的商业授权条款
  • 提供支持和维护计划

业界领先的合作伙伴

  • Altia — 全套HMI开发工具
  • OpenSynergy — Bluetooth协议栈
  • Cybercom blueGO — 蓝牙软件框架
  • Alango — 语音通信软件包，AEC/NS

购买/参数

6 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装端接数

封装类型

预算报价（不含税）

内核类型

内核：内核数量(规范值)

RAM (kB)

UART

CAN

DSPI

I2C

ESAI

SVF311R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY133.84

Arm Cortex-A5

1

1500

4

2

3

4

1

SVF312R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY140.73

Arm Cortex-A5

1

1500

4

2

3

4

1

SVF321R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY147.55

Arm Cortex-M4

2

1500

4

2

3

4

1

SVF322R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY154.51

Arm Cortex-M4

2

1500

4

2

3

4

1

SVF331R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY147.48

Arm Cortex-M4

2

1500

4

2

3

4

1

SVF332R3K1CKU2
数据手册

正常供应

176

HLQFP176

1K @ CNY154.44

Arm Cortex-M4

2

1500

4

2

3

4

1
