面向汽车应用的纳米功率高精度实时时钟，带集成石英晶体

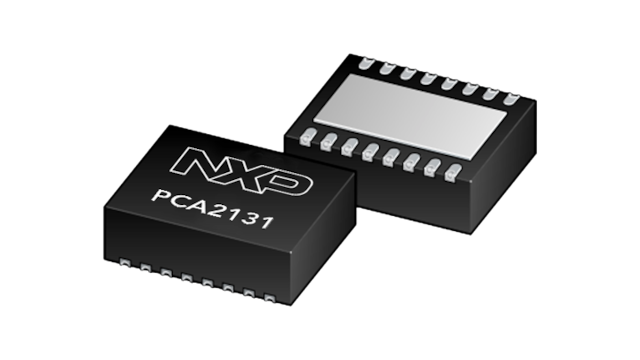

PCA2131
正常供应

滚动图片以放大

PCA2131是一款CMOS实时时钟(RTC)和日历，具有集成式温度补偿型晶体(Xtal)振荡器(TCXO)和32.768 kHz石英晶体，适用于极高精度和超低功耗的应用。PCA2131特点：

  • 符合汽车AEC-Q100规范二级
  • 运行温度范围从-40 °C到+105 °C。
  • 时钟运行温度高达125 °C
  • 可选择I2C总线或SPI总线接口，在选择相关MCU/MPU时具有充分的灵活性
  • 备用电池输入和切换电路，允许RTC跟踪时间，即使主电源已断开
  • 日历功能可以跟踪从数年到1/100秒的时间
  • 多达4个时间戳寄存器，可与时间戳输入相关联，以便注册篡改事件
  • 多达2个中断输出，可启用/禁用系统，降低总电流消耗

框图

PCA2131 Block Diagram

PCA2131 Block Diagram
获取框图PDF

功能

纳米功率设备

  • 时钟工作电压：1.2 V至5.5 V
  • 供电电流：106nA @ VDD = 3.3 V（典型值）

高精度实时定时

  • -40 °C至+85 °C为±3 ppm (典型值)
  • +85 °C至+8105°C为±8 ppm (典型值)

通过汽车应用认证

  • AEC-Q100二级

集成的石英晶体振荡器

  • 32.768 kHz石英晶体
  • 温度补偿型晶体振荡器(TCXO)
  • 时钟运行温度高达125 °C

支持的备用电池

  • 备用电池输入引脚和切换电路
  • 备用电池输出电压
  • 电池电量低检测功能

时间戳和中断功能

  • 4次时间戳输入，带独立寄存器
  • 2个中断引脚，带有可选中断源

支持的多种接口

  • 支持I2C总线(快速模式为400 kHz)
  • SPI总线 (最高速率为6.5 Mbit/s)

日历功能

  • 提供年、月、日、工作日、时、分、秒和1/100秒
  • 闰年校正

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，确保为您的嵌入式设计提供稳定的产品供应。PCA2131TF/Q900包含在15年产品长期供货计划中

更多

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

RTC Type

Accuracy (Typ) (+/- ppm)

输入电压[最小到最大]（V）

Low Supply Current (μA)

通信协议

Battery Back Up

Watchdog timer

Programmable alarm

Countdown Timer

Tamper Input

Interrupt Output

Integrated Temperature Compensation

AEC-Q100 compliant

封装类型

Package Dimensions (LxWxZ (mm))

Operating Temperature (Min-Max) (℃)

预算报价（不含税）

PCA2131TF
数据手册

正常供应

Module

3

1.2 to 5.5

0.11

SPI

Yes

Y

Y

N

4

2

Y

Y

HLSON16

4.5 x 3.5 x 1.45

-40 to 105

1K @ CNY10.70
