Getting Started with the MPC-LS-VNP-EVB

上次修改时间： 2022-12-22 15:56:00支持 MPC-LS汽车网络处理评估板

本文档内容

  • 1

    Plug It In

  • 2

    Get Software

  • 3

    Choose, Build and Load

    购买 MPC-LS汽车网络处理评估板

    本文档内容

    1. Plug It In

    Let's take your MPC-LS-VNP Evaluation Board for a test drive.

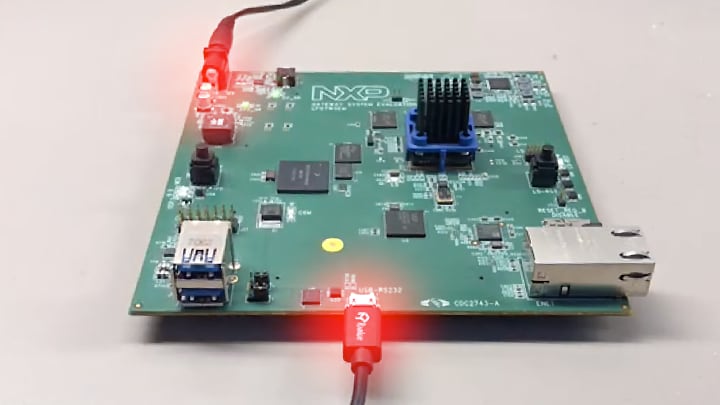

    1.1 Connect the MPC-LS-VNP-EVB

    Attach the 12V power supply for powering both the MPC-LS-VNP-EVB and the micro USB cable.

    下一页Get Software

    2. Get Software

    2.1 Download and Install the FTDI Driver

    Download the FTDI Driver

    前页Plug It In
    下一页Choose, Build and Load

    3. Choose, Build and Load

    3.1 Choose, Build and Load

    1. Select Browse from my computer for driver software; then select the FTDI driver that has been downloaded

      Note: You might need to restart your computer.

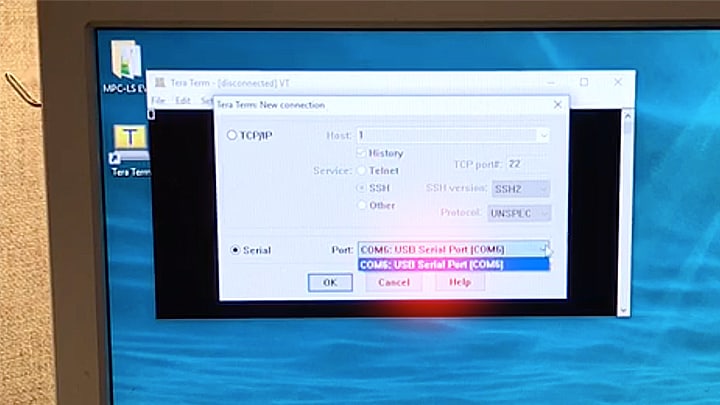

    2. Open Tera Term Console and go to Device Manager and right-click the COM port detected and select Update Driver Software

      Note: If your Serial option is not enabled, be sure your serial port is connected and restart the Tera Term Console.

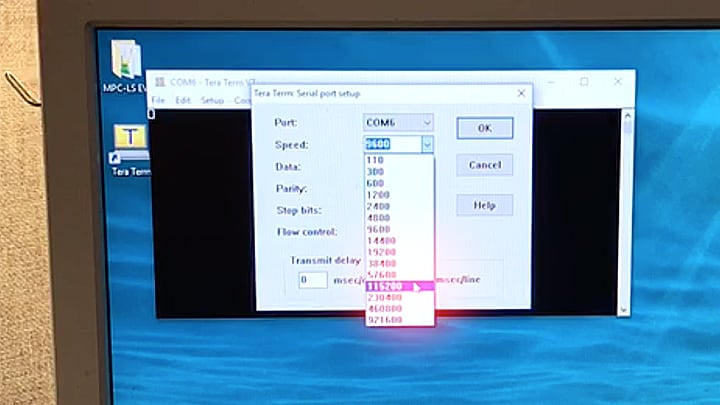

    3. Go to Setup → Serial port and Select a 115200 baud rate

    4. Reset the MPC-LS-VNP-EVB by pressing the L5 Reset button

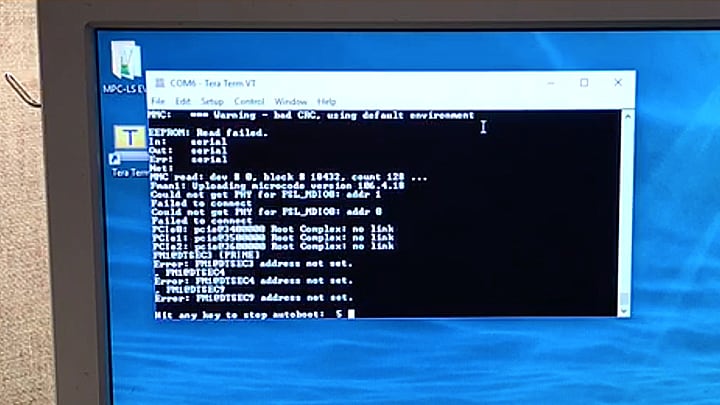

      Note: Do NOT press any key while the counter goes down from 10 to 0.

    5. Enter "Root" as Log in and press Enter

      The getting started IPCF application is auto-executed on login.
