1.Plug It In

Let's take your FRDM board for a test drive! You have the choice of watching the sequence in a short video or following the detailed actions listed below.

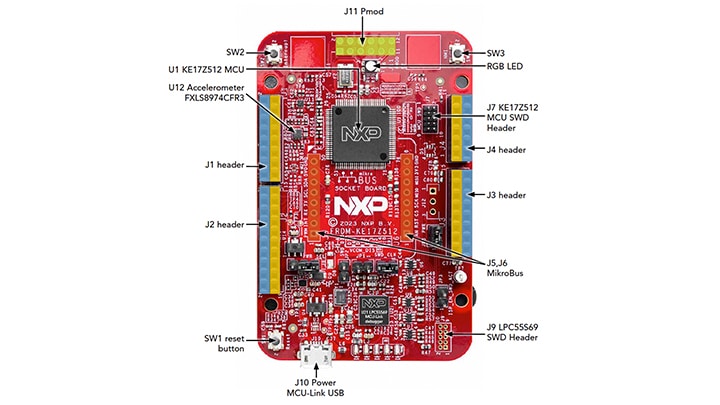

1.1 Get Familiar with the Board

The FRDM-KE17Z512 board is preprogrammed with an LED blinky demo. This serves as a sanity check to verify that the device is working as expected out of the box.

标记为完成:1.1 Get Familiar with the Board

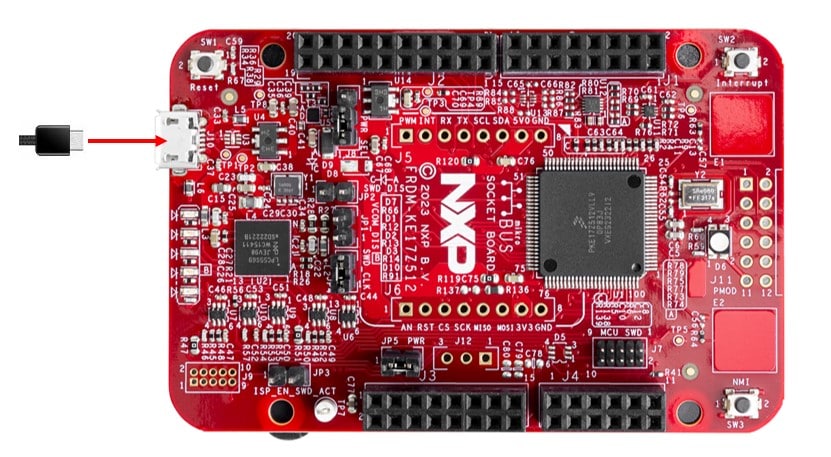

1.2 Plug In the Board

Connect a USB micro-B cable from the connector J10 to a host computer or power supply to power up the board and run the demo program. At this point, you should see the RGB LED blinking at a steady rhythm.

标记为完成:1.2 Plug In the Board

下一页Get Software

2. Get Software

2.1 Install Your Toolchain

NXP offers a complimentary toolchain called MCUXpresso IDE. Please download MCUXpresso v11.8.1 or above.

Need help choosing? explore the MCUXpresso Suite of Software and Tools.

Get MCUXpresso IDE

Get MCUXpresso for VS Code

Learn how to install VS Code for your host PC with the following tutorial.

Want to use a different toolchain?

No problem. The MCUXpresso SDK includes support for other tools such as IAR , KEIL and command-line GCC .

标记为完成:2.1 Install Your Toolchain

2.2 Jump Start Your Design with the MCUXpresso SDK

The MCUXpresso SDK is complimentary and includes full source code under a permissive open source license for all hardware abstraction and peripheral driver software. You may install the MCUXpresso SDK directly form the MCUXpresso SDK website at MCUXpresso SDK website . Click on the button below to open this board's SDK builder.

GET MCUXPRESSO SDK

标记为完成:2.2 Jump Start Your Design with the MCUXpresso SDK

2.3 MCUXpresso Config Tools

The MCUXpresso Config Tool is an integrated suite of configuration tools that guides users in creating MCUXpresso SDK projects, and also provides pin and clock tools to generate initialization C code for custom board support, it is fully integrated as a part of MCUXpresso IDE and also as a separate tool if using a different IDE.

Click the Get MCUXpresso Config Tools below to get the Config Tools installer.

Get MCUXpresso Config Tools

标记为完成:2.3 MCUXpresso Config Tools

前页Plug It In

下一页Build and Run

3. Build and Run

If one or more of the demo applications or driver examples sounds interesting, you're probably wanting to know how you can build and debug yourself. The Getting Started with MCUXpresso SDK guide provides easy, step-by-step instructions on how to configure, build and debug demos for all toolchains supported by the SDK.

3.1 Build and Flash Application using MCUXpresso IDE

The following steps will guide you through the hello_world demo application using MCUXpresso IDE for the Arm Cortex-M0+ application. The MCUXpresso IDE installation and the SDK for the Kinetis E Series can be found at the section Get Software of this Getting Started guide.

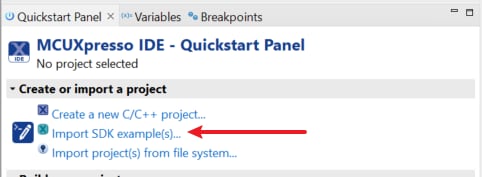

Find the Quickstart Panel in the lower left-hand corner.
Then click on Import SDK example(s).

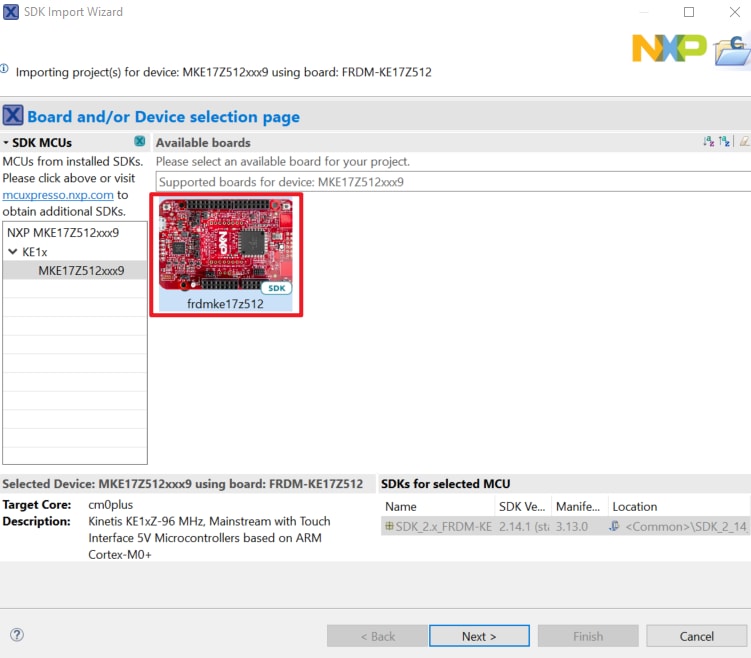

Click on the FRDMKE17Z512 board to select an example that can run on that board, and then click on Next.

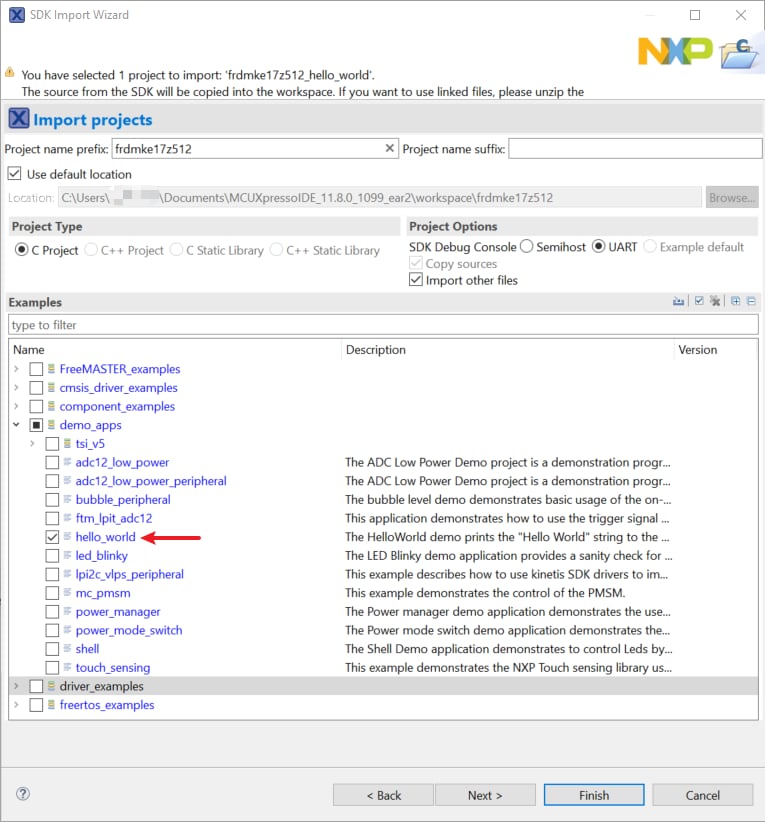

Use the arrow button to expand the demo_apps category, and then click the checkbox next to hello_world to select that project. To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish

Select the project and build it by either clicking on the “build icon” in the shortcuts provided above or by clicking “Build” in the Quickstart Panel

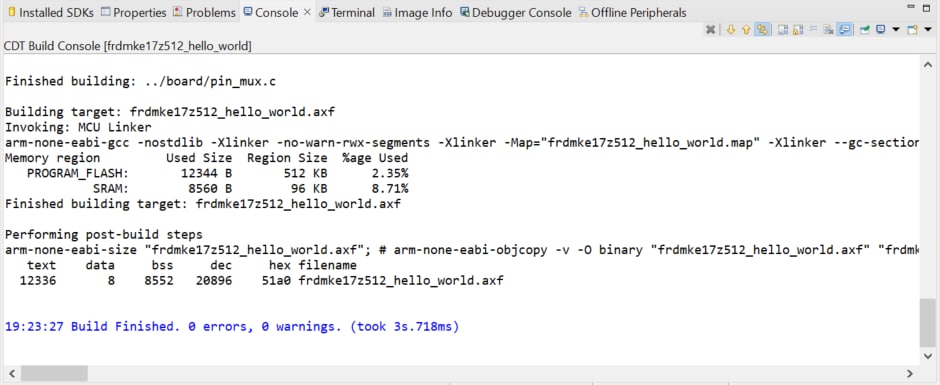

The project should build without presenting any errors or warnings in the console
Connect the board to your computer with the micro USB cable to J10 'MCU-LINK' port

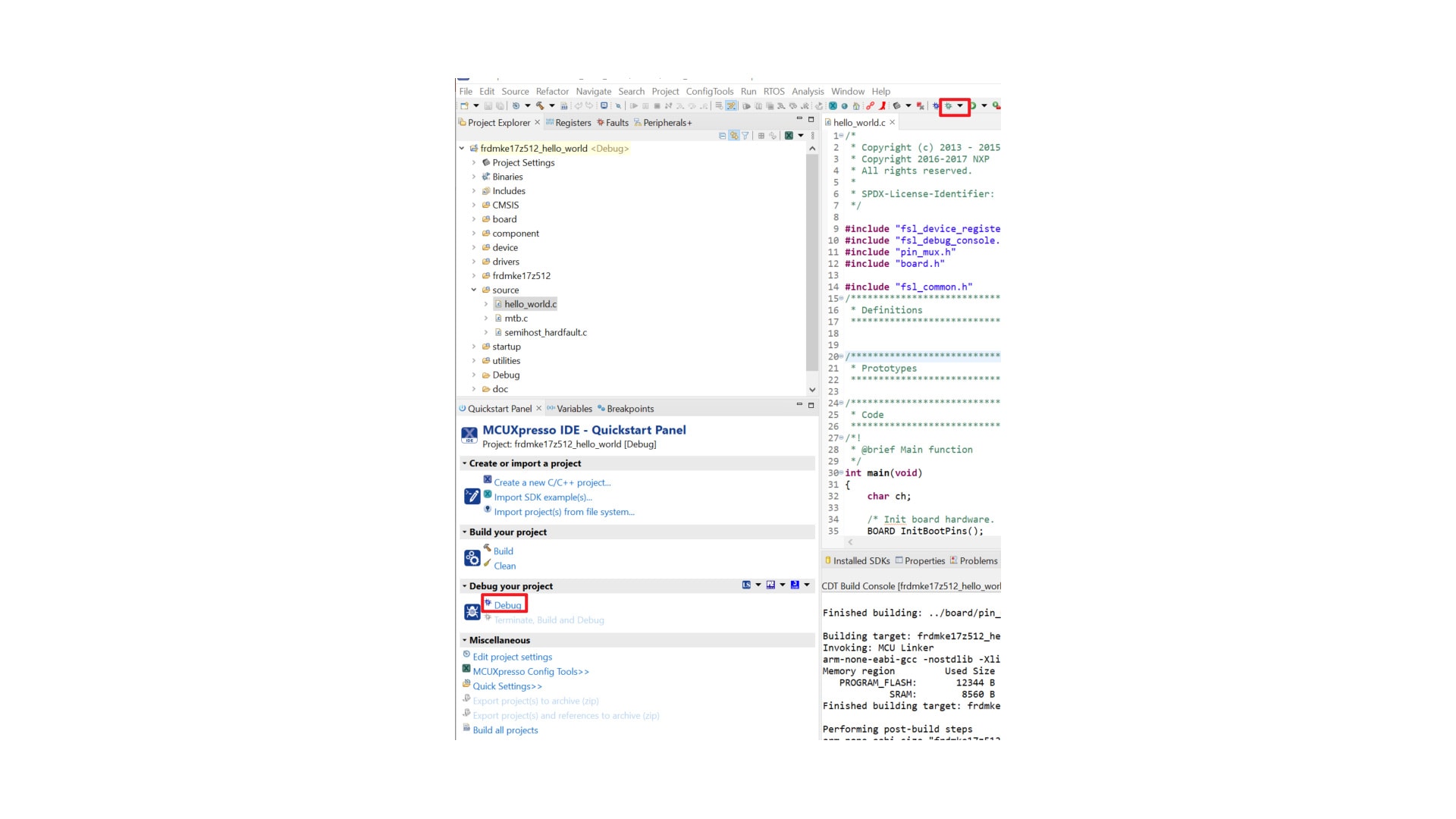

Download the application to your board by either clicking on the “debug” icon above or clicking on “Debug” in the Quickstart Panel
GS-FRDMKE17Z512-IMG10

GS-FRDMKE17Z512-IMG10

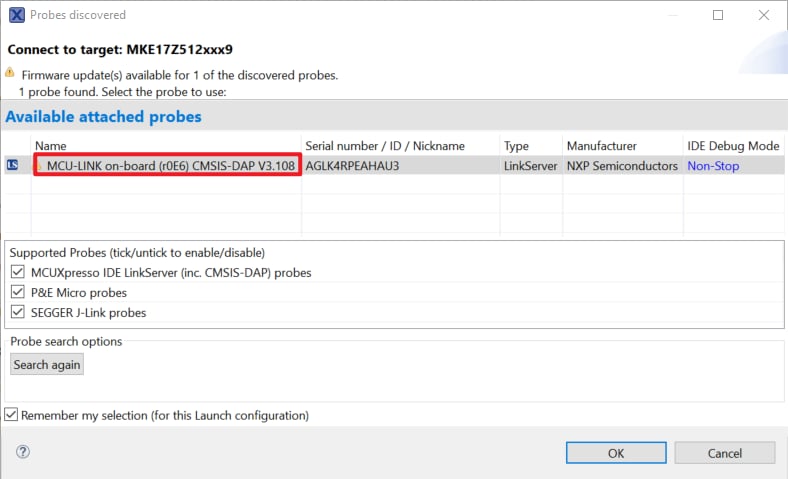

Select the MCU-Link CMSIS-DAP debug probe
Open up a serial terminal to be able to see the application's output. Select the “Terminal” window and press the “new terminal” icon

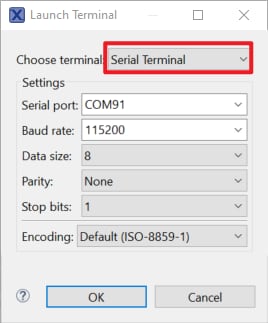

Choose a “Serial Terminal” and then set the UART settings to 115200 baudrate, 8-bit data size, no parity and 1 stop bit. Press OK

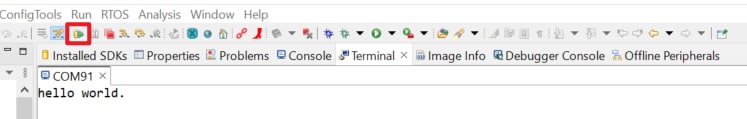

Run the application by pressing the “run” icon. See the output printed on the terminal

标记为完成:3.1 Build and Flash Application using MCUXpresso IDE

3.2 Build and Flash Application with Alternative Toolchains

MCUXpresso for Visual Studio Code (VS Code) provides an optimized embedded developer experience for code editing and development. Learn how to build and flash an application with VS Code.

Using a different toolchain?

This demo is also available for IAR and KEIL.

标记为完成:3.2 Build and Flash Application with Alternative Toolchains

前页Get Software

下一页Create

4. Create

4.1 Clone an Example Project from MCUXpresso IDE

The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a led blinky demo.

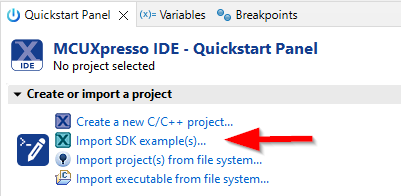

Find the Quickstart Panel in the lower left-hand corner and click on Import SDK example(s)
Click on the FRDMKE17Z512 board to select that you want to import an example that can run on that board, and then click on Next

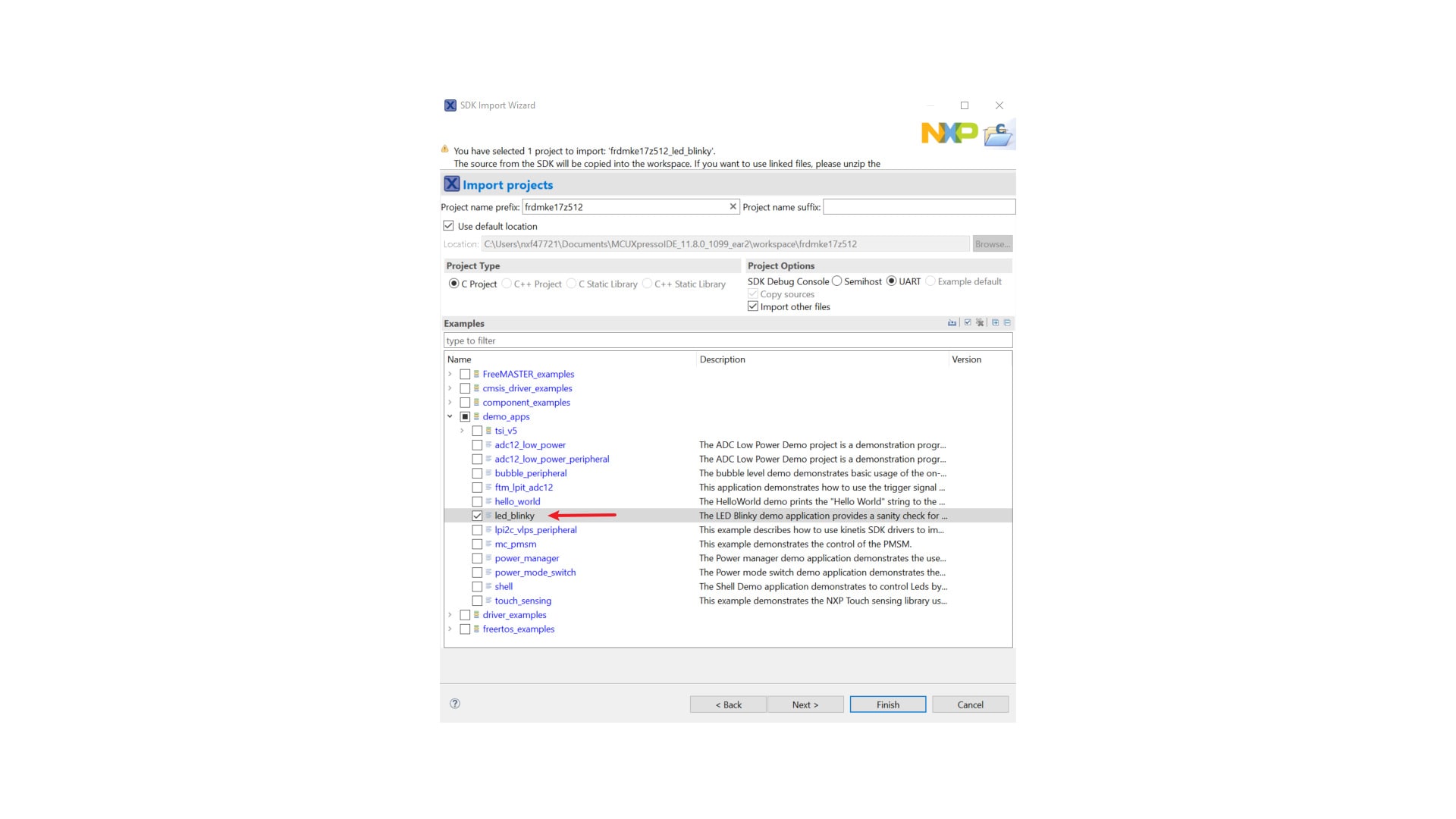

Use the arrow button to expand the demo_apps category, click on the checkbox next to led_blinky to select it. To use the UART for printing (instead of the default semihosting), Select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish

GS-FRDMKE17Z512-IMG17

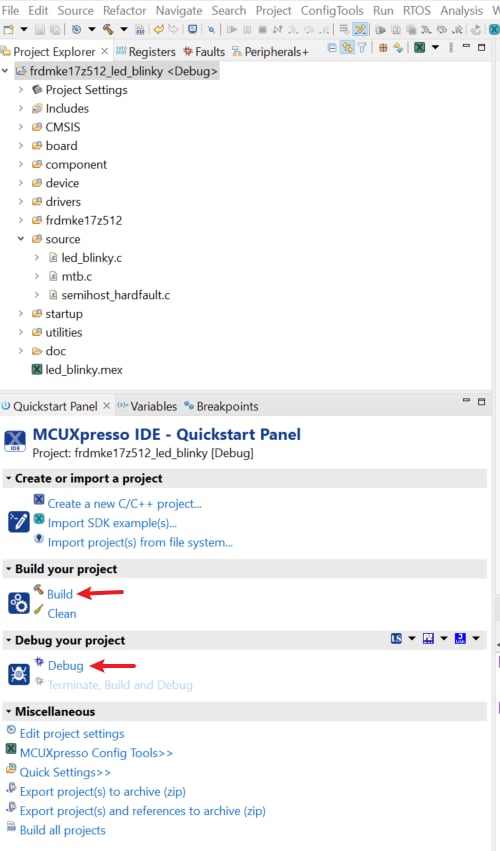

Click on the “led_blinky” project in the Project Explorer View and build, compile and run the demo as described in the previous section
You should see the RED LED blinky
Terminate the debug session

标记为完成:4.1 Clone an Example Project from MCUXpresso IDE

4.2 Clone an Example Project using MCUXpresso Config Tool for 3rd Party IDE

The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a led blinky demo.

Open the MCUXpresso Config Tool

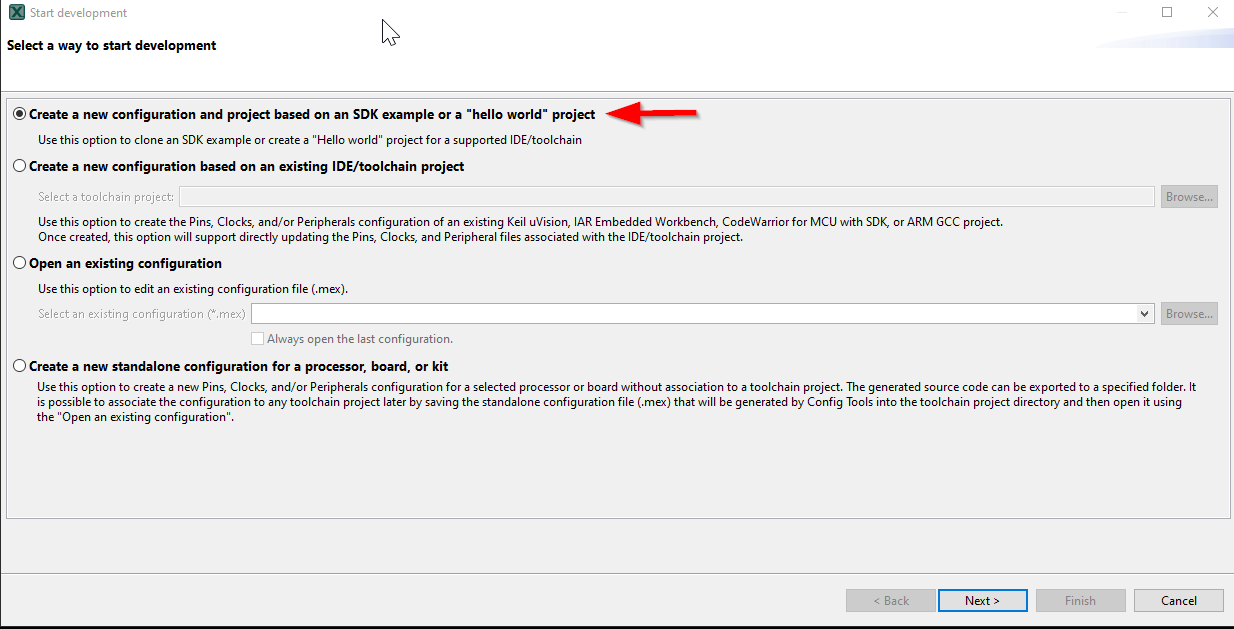

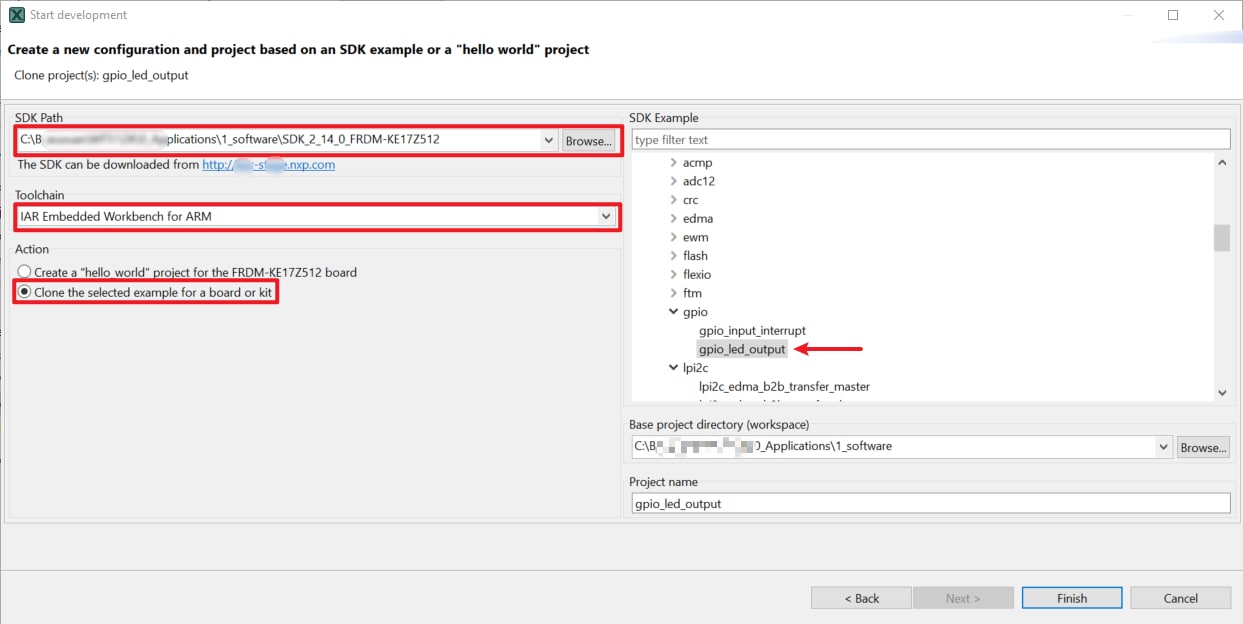

In the wizard that comes up, select the “Create a new configuration based on an SDK example or hello word project” radio button and click on Next
On the next screen, select the location of the MCUXpresso SDK. The SDK package must be unzipped beforehand. Then select the IDE that is being used. Note that only IDEs that were selected in the online SDK builder when the SDK was built will be available and click on clone select example. Then select the project to clone. For this example, we want to use the gpio led output project. You can filter for this by typing “gpio” in the filter box and then selecting the “gpio_led_output” example project. You can then also specify where to clone the project and the name. Then click on Finish
After cloning go to the directory you selected and open the project for your IDE. Import, compile and run the project as done in previous sections.
You should see that the LED RED is taking turns to shine
Terminate the debug session

标记为完成:4.2 Clone an Example Project using MCUXpresso Config Tool for 3rd Party IDE

4.3 Use MCUXpresso IDE Pins Tools

Note: Previously, you had to clone an SDK project like in the previous step.

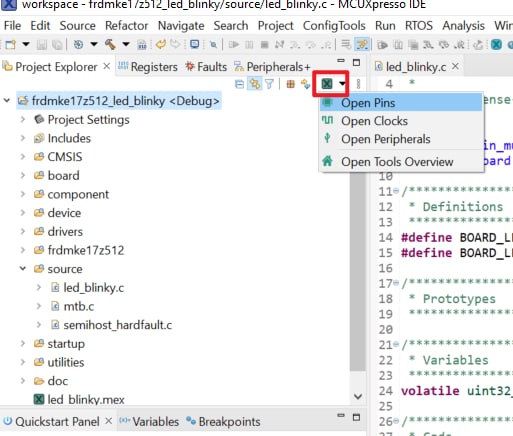

Open the pins tool by selecting “ConfigTools” on the top-right hand of the file explorer window and then select “Open Pins”

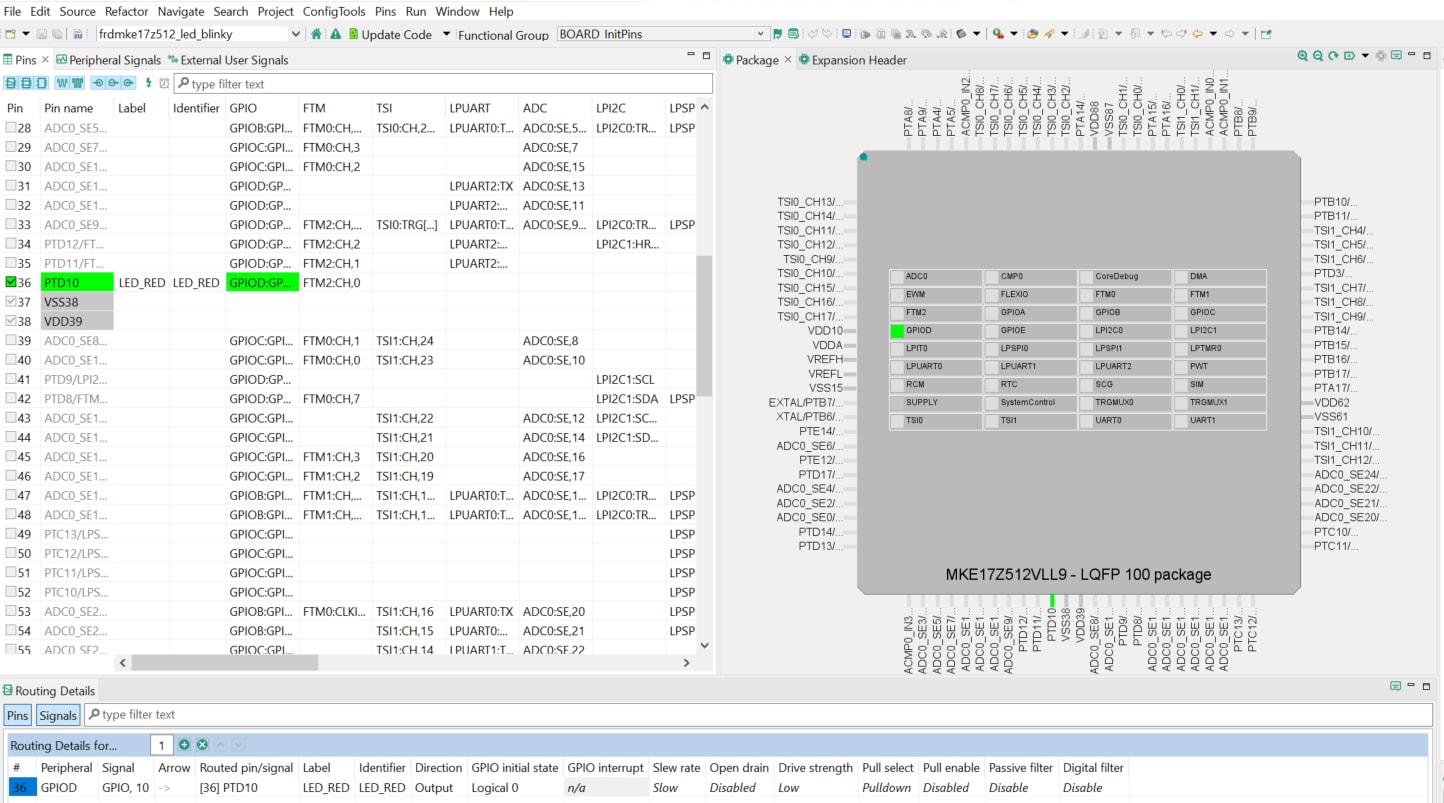

The pins tool should now display the pin configuration for the ctimer project

标记为完成:4.3 Use MCUXpresso IDE Pins Tools

4.4 Use the Pins Tools to Modify the LED Routed Pin

We’ll use MCUXpresso IDE for the rest of the instructions, but the same steps can be done in MCUXpresso Config tools for third-party IDEs. In the Pins view deselect “Show dedicated pins” and “Show no routed pins” checkboxes to see only the routed pins. Routed pins have a check in a green box next to the pin name. The functions selected for each routed pin are highlighted in green.

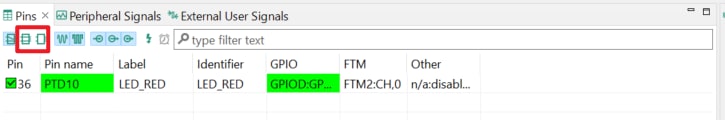

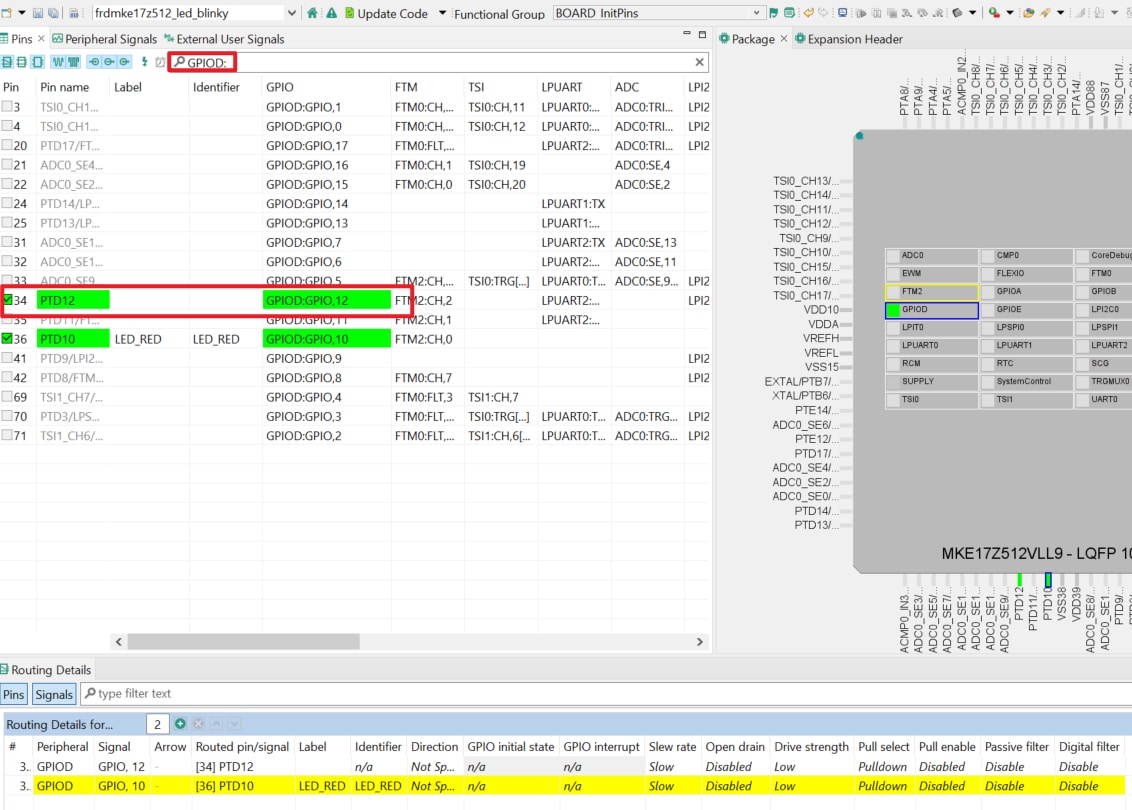

In the current configuration, PTD10 is routed as the outputs to control the RED LED. Let’s add the pin configuration to enable the BLUE LED

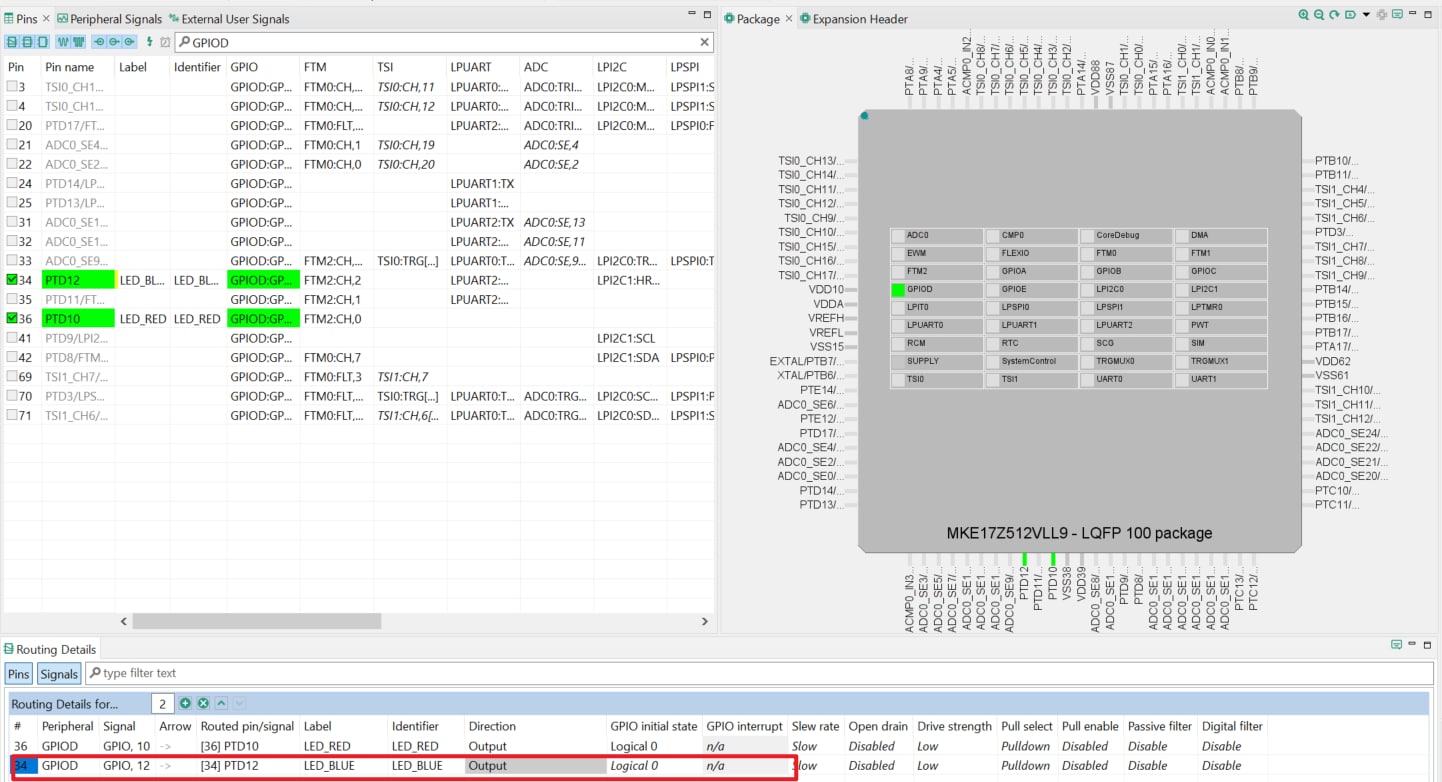

Select “Show no routed pins” to see the other options. To enable the BLUE LED, search for GPIOD and select GPIOD, 12 under the GPIO column.
Next configure the GPIO pin as an output in the “Routing Details” window

Now, it's time to implement these changes into the project by exporting the new updated pin_mux.c and pin_mux.h files that are generated by the Pins tool. Click on Update Project in the menu bar

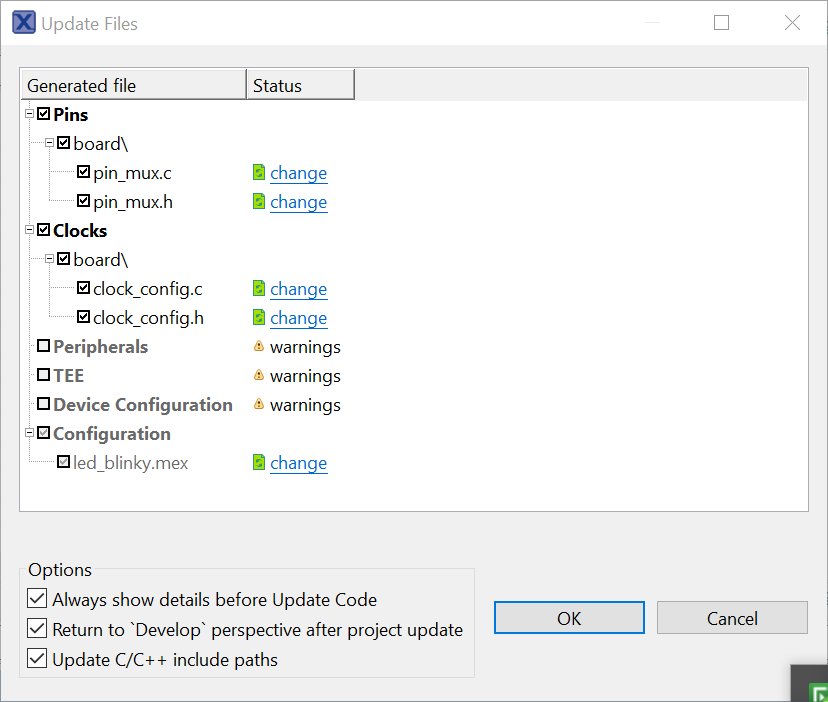

The screen that pops up will show the files that are changing and you can click on “diff” to see the difference between the current file and the new file generated by the Pins tool. Click on “OK” to overwrite the new files into your project

Note: The clocks and other files may also be tagged as being updated since the header has been changed

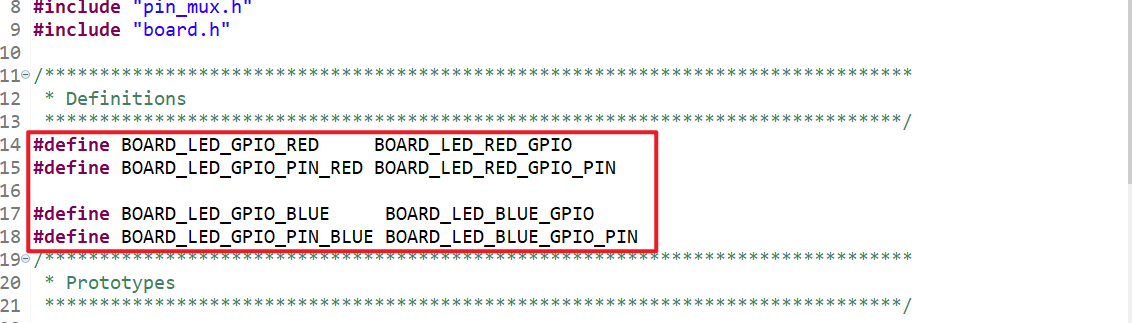

Let's add some additional code to the example. Open led_blinky.c file and add the following macros to initialize the BLUE LED

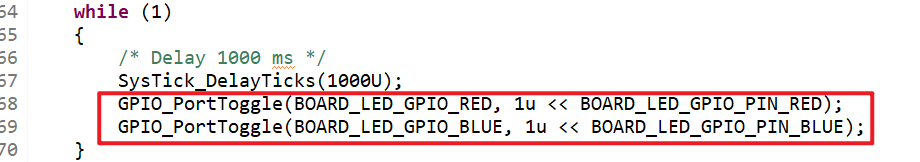

In the main function, add the GPIO_PortToggle function to control the BLUE LED. In the demo, the BLUE LED and RED LED will be toggled at the same time
Build and download the project as done in the previous section
Run the application. You should now see the BLUE LED and RED LED toggled at the same time. The LED is blinking and shows a purple color
Terminate the debug session

标记为完成:4.4 Use the Pins Tools to Modify the LED Routed Pin

前页Build and Run

下一页MCUXpresso Developer Experience

5. MCUXpresso Developer Experience

Check out each of the following sections, to learn about the ecosystem provided for flexible protyping and development. In the video below, we will introduce you to the FRDM platform, the full-featured EVK and the compatible shields for extended capabilities. In addition, we will walk you through our Application Code Hub portal where we provide numerous application examples through NXP's GitHub.

5.1 FRDM Platform, Full feature EVK and Shields

For quick prototyping platforms, we offer both the low-cost FRDM platform and the full-featured EVK.

FRDM Development Boards come with standard form factor and headers, easy access to MCU I/Os, onboard MCU-Link debugger and a USB micro B cable. Our full features evaluation kits include extended I/O and interface access, extendable with WiFi and additional MCU-Link features. There are also many compatible Click Board and/or Arduino shields. For those that are supported with an Open CMSIS Pack example may be available on ACH, but if not many of them are easy to use via serial interface like I2C, SPI and UART, for which we provide drivers with examples in the MCUXpresso SDK.

标记为完成:5.1 FRDM Platform, Full feature EVK and Shields

5.2 Application Code Hub

The Application Code Hub further enhances our MCUXpresso Developer Experience by giving developers an interactive dashboard to quickly locate software. Visit the ACH today to start exploring or discover additional details and benefits of the new interactive Application Code Hub.

Software accessible from Application Code Hub is located in NXP’s GitHub repository so it can be easily accessed and cloned from that location directly.

标记为完成:5.2 Application Code Hub

5.3 Demo Walkthrough

The following demo walks us through importing a project from ACH using a system based on the FRDM platform with a motor control shield and a low-cost LCD. Although your evaluation board may differ from this system, the following steps can be replicated and used for all supported platforms.

标记为完成:5.3 Demo Walkthrough

前页Create

下一页Project and Tutorials: System Design Guides

System Design Guides

Terminal Application

MCUXpresso IDE Terminal Tutorial

The most recent versions of MCUXpresso IDE count with a terminal emulation application. This tool can be used to display information sent from your NXP development platform's virtual serial port.

Open the MCUXpresso IDE

Launch the MCUXpresso IDE terminal by clicking on the “Open a Terminal” button on the top of the IDE or press “Ctrl + Alt + Shift + T”

Select Serial Terminal

Configure the serial port settings (using the LPC-Link2 COM port number) to 115200 baud rate, 8 data bits, no parity and 1 stop bit, then press “OK” button

Verify that the connection is open. If connected, MCUXpresso IDE will look like the figure below at the Terminal view

You're ready to go

Tera Term Tutorial

Tera Term is a very popular open source terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.

Download Tera Term from SourceForge. After the download, run the installer and then return to this webpage to continue

Download

Launch Tera Term. The first time it launches, it will show you the following dialog. Select the serial option. Assuming your board is plugged in, there should be a COM port automatically populated in the list

Configure the serial port settings (using the COM port number identified earlier) to 115200 baud rate, 8 data bits, no parity and 1 stop bit. To do this, go to Setup → Serial Port and change the settings
Verify that the connection is open. If connected, Tera Term will show something like below in it's title bar

PuTTY Tutorial

PuTTY is a popular terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.

Download PuTTY using the button below. After the download, run the installer and then return to this webpage to continue

Download

Launch PuTTY by either double clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected
Configure In the window that launches, select the Serial radio button and enter the COM port number that you determined earlier. Also enter the baud rate, in this case 115200

Click Open to open the serial connection. Assuming the board is connected and you entered the correct COM port, the terminal window will open. If the configuration is not correct, PuTTY will alert you

You're ready to go

Toolchains

Running a Demo Using IAR Embedded Workbench

The following steps will guide you through opening the hello_world application. The instructions for compiling and debugging the Cortex M33 core are covered in the instructions below.

Build an Example Application

Please use IAR Embedded Workbench for Arm version 9.40.1 or above.

First, unzip the previously downloaded FRDMMCXN947 SDK package
Open the desired example application workspace. Most example application workspace files can be located using the following path:

<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/iar

Select the desired build target from the drop-down. For this example, select the “hello_world – debug” target

Open the project properties by doing a right-click on the project and selecting Options

Now go to the Debugger section and change the debugger driver to CMSIS DAP . Press the OK button

To build the application, click the “Make” button, highlighted in red below

The build will complete without errors

Note: In case of building errors, make sure that the correct board is selected, right-click in the Project → Options → General Options → Target → Device, Select the NXP MCXN947_core0; this board is supported in IAR Embedded Workbench for Arm version 9.40.1or higher.

Run an Example Application

Connect the development platform to your PC via USB cable to J17 “MCU-Link USB”

Click the "Download and Debug" button to download the application to the target

The application is then downloaded to the target and automatically runs to the main() function
Run the code by clicking the "Go" button to start the application

The hello_world application is now running on the Cortex-M33

Running a Demo Using Keil^® MDK/µVision^®

Install CMSIS Device Pack

After the MDK tools are installed, Cortex^® Microcontroller Software Interface Standard (CMSIS) device packs must be installed to fully support the device from a debug perspective. These packs include things such as memory map information, register definitions and flash programming algorithms. Follow these steps to install the appropriate CMSIS pack. Please use MDK-Arm Microcontroller Development Kit (Keil)^® version 5.33 or above.

Open the MDK IDE, which is called µVision. Inside the IDE, select the "Pack Installer" icon

In the Pack Installer window, search for “MCXNxxx” to bring up the MCXNxxx family. Click on the MCXNXXX name, and then in the right-hand side you’ll see the NXP: MCXNXXX _DFP pack. Click on the “Install” button next to the pack. This process requires an internet connection to successfully complete
After the installation finishes, close the Pack Installer window and return to the µVision IDE

Build the Example Application

The following steps will guide you through opening the mu_polling application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path.

If not already done, open the desired demo application workspace in:

 <install_dir>/boards/ <sdk_board_name>/<example_type>/<application_name</mdk

Select debug configuration

Do right click on the project and select the project options:

Now, go to the Debug option and select J-LINK. Click on Ok button

To build the demo project, select the "Rebuild" button, highlighted in red

The build will complete without errors

MCUXpresso for VS Code

Build and Run an Example with VS Code

Getting Started Kinetis Family

Pre-Requisites

This example is written for Windows10, but MCUXpresso for Visual Studio Code can also be easily installed on MacOS and Linux.

Follow software installation for MCUXpresso for VS Code extension

Download or receive MCUXpresso SDK for FRDM-KE17Z512. (SDK_2_14_1_FRDM-KE17Z512.zip)

Hardware Requirements

FRDM-KE17Z512 or another Kinetis Family evaluation board*
1 micro-USB cab*
*Different evaluation boards will require slight adjustments to below steps. For particular details refer to the board’s user guide

Preparing the Hardware

This lab targets the NXP evaluation kit (FRDM or EVK). The kit provides a rich set of connected peripherals to help evaluate the device. It includes an on-board Debug Probe. The debug probe is pre-programmed with CMSIS-DAP firmware for this lab. To display debug messages in the examples, the lab connects to the comm port available through the same debug probe.

Open MCUXpresso for VS Code

Open Visual Studio Code, click on MCUXpresso icon [x] on the left panel
To move forward with next step click on "Installed Repositories” panel that will appear as shown in below picture

Add NXP MCUXpresso SDK

The NXP extension adds tools to help add software repositories into the Visual Studio Code workspace. The software repository can be provided from three sources:

Remote git URL
NXP MCUXpresso SDK archive file
Existing git folder

This section will import the MCUXpresso SDK for the Kinetis microcontroller using the SDK archive file provided as Pre-requisite.

Click “Import Repository” button in the INSTALLED REPOSITORIES panel. A button is visible before the first repository is added. In the future, users can click the ‘+’ symbol in the top right of the Installed Repositories section for adding repositories

Select the “LOCAL ARCHIVE” option to import the provided Kinetis SDK archive file
Browse to the location of the Kinetis SDK file for the “Archive” entry. (In the Downloads folder)
Browse to a folder to be a common “Destination” to store SDKs. (i.e. C:\Users\NXP\VSCODE_Projects ) Enter a name for the new SDK, in this case \SDK_2_14_1_FRDM-KE17Z512

Click Import. The Kinetis SDK is extracted to the local folder and added to your INSTALLED REPOSITORIES panel

Import Example Project

The NXP extension provides a PROJECTS pane to help developers import projects into their workspace. The user has three sources for importing a new project: a Repository; an existing local project; an archived project. This section will import an example from the SDK just added to the INSTALLED REPOSITORIES panel.

Click Import Example from Repository. A button is visible when no projects are in the current workspace. In the future, the symbols in the top right of the Projects section can be used to import additional projects. Click ‘II\’ symbol to add Repository Examples. Click ‘[+]’ symbol to import projects on the PC that were created earlier by the MCUXpresso for VS Code extension. Click the ‘[ ]’ symbol to import a project in an archive file created earlier by the MCUXpresso for VS Code extension

Fill out the appropriate information in the “Import Example from Repository” window. Click “Choose a repository” to select from a list of available/installed repositories. Select SDK_2_14_1_FRDM-KE17Z5127
Click “Choose a toolchain” to select from a list of available build tools. The MCUXpresso Installer provides a default option of “gcc-arm-none-eabi-10.3”. The tool also looks in other default locations for MCUXpresso IDE installations. These may be listed as alternative options for GNU Arm toolchains. Select the “gxx-arm-non-eabi-10.3” option
Click “Choose a board” to view the boards supported in the selected repository. Longer list of boards can be filtered by typing in the available selection area. Select FRDM-KE17Z512. After a board is selected, a picture of the board will be displayed to help confirm the correct selection
Click “Choose a template” to show a list of available examples in the selected repository. The long list of examples can be filtered by typing in the available selection area. (i.e. type Hello to filter Hello World examples) Select demo_apps/hello_world

Click Browse for the “Location” field. Choose a folder location for new projects to be created
Click Create. This will add a new “Hello World” example for the Kinetis device to your Projects panel

Build Project

The build process is configured when the project is created. The user can initiate the build from an icon in the project view. To the right of the project name, the build icon will start the build for that project. You need to return to the MCUXpresso extension perspective by clicking the “X” icon in the left navigation pane. You may still be in the Explorer perspective from prior section.

Click the build icon to the right of the hello_world project. This will start the build process. The OUTPUT terminal tab at the bottom of the screen displays the build progress
Alternatively, you can right click on the project name to display additional build options. Clicking Rebuild or Clean Build will remove build artifacts from prior builds to allow the project to be built again. Otherwise, clicking Build Selected will result in an output of “no work to do"

The build process should complete with an exit code of 0… Success

Flash and Debug Project

MCUXpresso for Visual Studio Code allows users to program and debug projects for NXP microcontrollers. These steps require that Debug Probe drivers are properly installed and configured. MCUXpresso for Visual Studio Code allows the use of popular debug probes from NXP, Segger and PEmicro. MCUXpresso Installer included the option to properly install support for the different debug probes.

The built project output binary is flashed to the target board before launching a debug session. The Debug session provides controls and views to help the developer analyze the operation of the project. The following steps will show how to successfully flash and program the FRDM evaluation kit.

Confirm that the on board debug probe is connected to the PC USB port
Click the Refresh arrow in the DEBUG PROBES pane to detect connected Debug Probes

Starting a Debug session begins by programming the target device with the built project image. Click the common Play triangle icon to the right of the selected project

Start Debug: Another place to launch debug
Debug Controls: Pause; Step Over; Step Into; Step Over; Restart; Stop
Variables: Locals and Registers
Watch: Add expressions to continue to monitor
Breakpoints: Add, Toggle and View targeted code
Call Stack: List of active subroutines in the program
Status Ribbon: Bottom of screen changes status text and/or color to orange

Debugger Firmware

SEGGER J-Link Tutorial

Download J-Link software
Enter to SEGGER download page: Segger
Expand “J-Link Software and Documentation Pack” section
Select the software that matches your OS and download the newest version
Accept terms and download the software
Execute the .exe file you just downloaded by doing double-click. Follow the setup instructions until the J-Link installation is complete
You're ready to go
