Two-Phase Power Meter Reference Design

TWO-PHASE-POWER-METER

滚动图片以放大

With the growing consumption of energy worldwide, particularly in the residential market, utility providers need increasingly accurate and cost-effective energy metering solutions. The Kinetis® M series two-phase electricity meter reference design addresses these accuracy and cost needs by providing a high-performance analog front end combined with an embedded programmable gain amplifier to increase the accuracy of energy measurement.

框图

Two Phase Meter

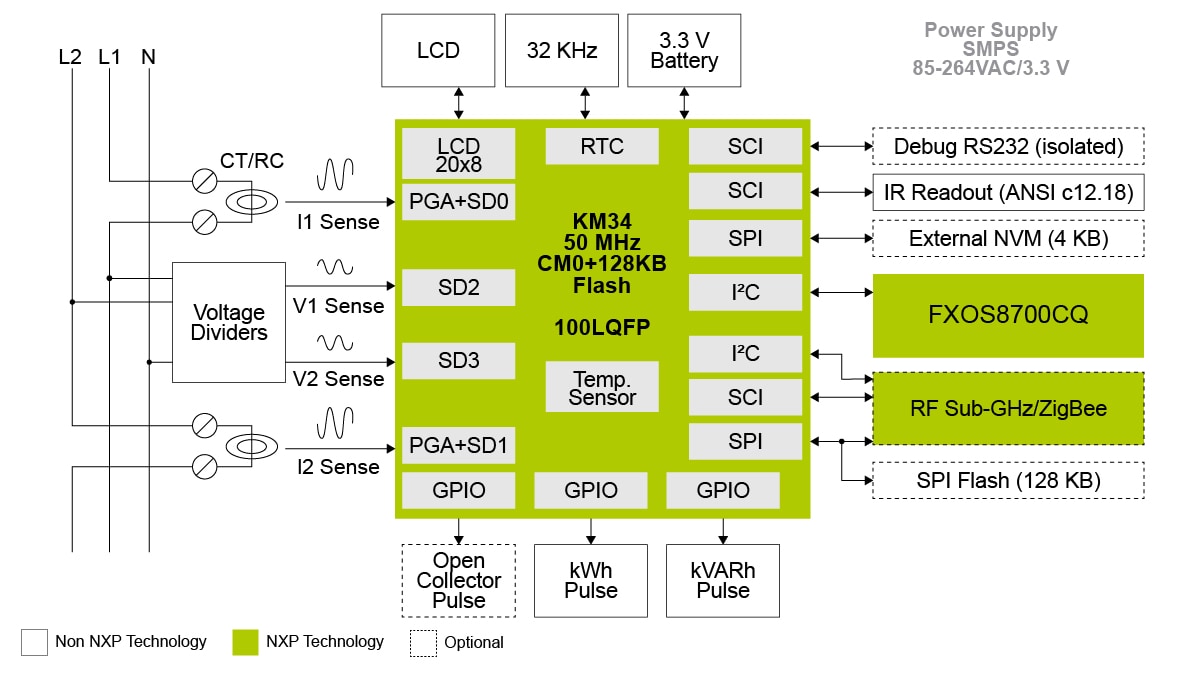

Two Phase Power Meter Reference Design Block Diagram
获取框图PDF

支持的器件

无线连接

多协议MCU

  • KW41Z: Kinetis® KW41Z-2.4 GHz双模式：BLE和802.15.4无线连接微控制器(MCU)，基于Arm® Cortex®-M0+内核

处理器和微控制器

KM系列Cortex-M0+

  • KM1x: Kinetis KM1x-50 MHz，主流精确计量微控制器，基于ARM® Cortex®-M0+内核
  • KM3x: 50–75 MHz带段式LCD的精确计量微控制器，基于Arm® Cortex®-M0+内核

Features

  • 200 A current range (CL200, TA 30A)
  • 85 to 264 V, 50/60 Hz voltage range
  • Two types of installation: Form 2S or Form 12S
  • Accuracy class: ANSI C12.20-2002 Class 0.2
  • Line frequency measurement (for precision zero-cross detection)
  • Current transformer sensing circuit implementation for each phase
  • Low-power modes including the use of built-in RTC (Li-battery backup)
  • AMI expansion header supporting 2.4 GHz 802.15.4 or HAN/NAN (with 6loWPAN IPv6) communications for AMR and remote control
  • EMC proven design (ANSI C62.41, IEC 61000-4-4)
  • Peripherals
    • 8 x 20 segment LCD, including charge pump
    • LED pulse outputs (kWh, kVARh)
    • Isolated (4 kV) RS-232 port for monitoring, parameterization and firmware upgrade (optional)
    • Infrared optical port according to ANSI C12.18-2006 (optional)
