Three-Phase Power Meter Reference Design

THREE-PHASE-POWER-METER

滚动图片以放大

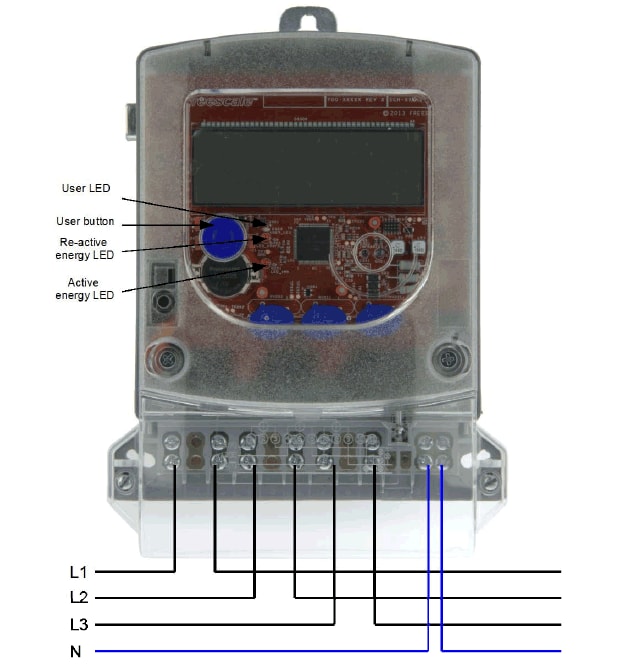

The three-phase power meter reference design is used for measurement and registration of active and reactive energy in three-phase networks for direct connection. It is precertified according to European EN50470- 1, EN50470-3, class B and C, as well as to IEC 62053-21 and IEC 62052-11 international standards for electronic meters of active energy classes 2 and 1.

框图

Three Phase Meter

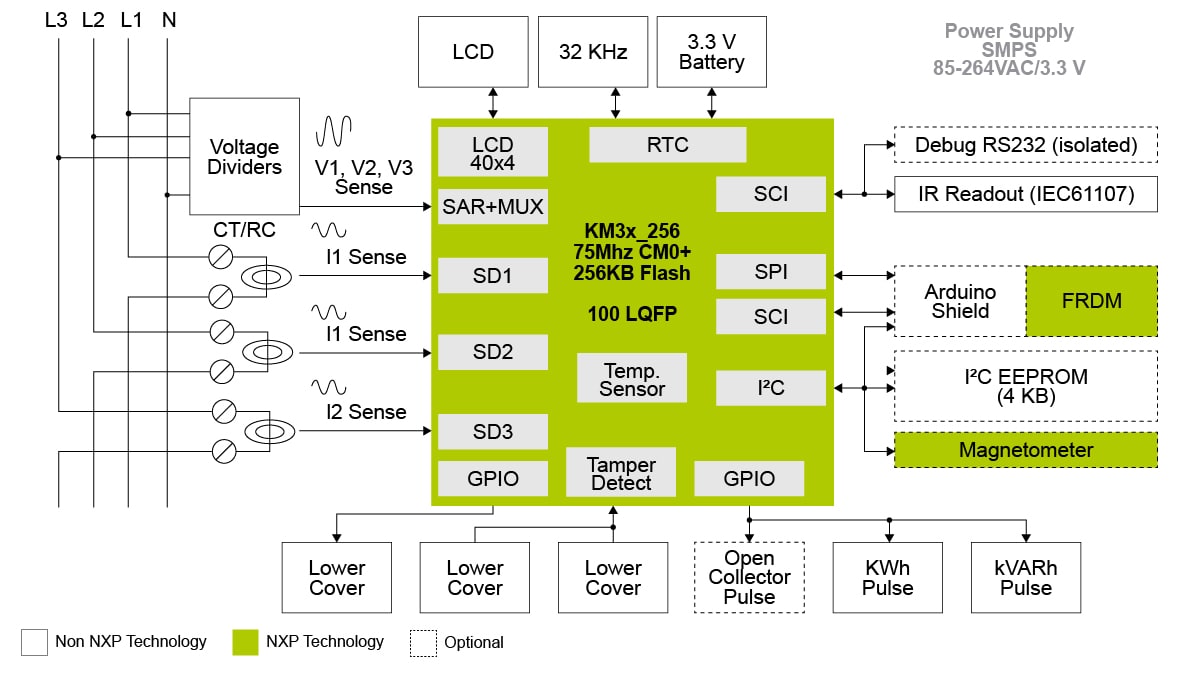

Three Phase Power Meter Block Diagram
获取框图PDF

支持的器件

无线连接

多协议MCU

  • KW41Z: Kinetis® KW41Z-2.4 GHz双模式：BLE和802.15.4无线连接微控制器(MCU)，基于Arm® Cortex®-M0+内核

传感器

运动传感器

  • FXOS8700CQ: 数字运动传感器——3D加速度传感器（±2g/±4g/±8g）+3D磁力计

处理器和微控制器

KM系列Cortex-M0+

  • KM3x: 50–75 MHz带段式LCD的精确计量微控制器，基于Arm® Cortex®-M0+内核

Features

Connectors

  • Internal connector supporting Arduino® shield (Wi-Fi, Bluetooth) expansion boards

Interfaces

  • 4 x 40 segment LCD, including charge pump (values shown on LCD: V, A, W, Var, VA, kWh, kVarh, cos F, Hz, time, date
  • Isolated (4 kV) RS-232 port for monitoring, parameterization and firmware upgrade
  • Integrated wireless 15W transmitter supports fast charging for Samsung® and Apple® devices
  • Digital control buck-boost converter
  • One control IC controls buck-boost converter, charge, Qualcomm algorithm, PD communication and wireless power management

Design Features

  • Low-power design with operation in low-power modes and the use of built-in RTC (Li-battery backup)
  • 100 A current range, 85 to 264 V, 50/60 Hz voltage range

EMC

  • EMC proven design (EN61000-4-2, EN610004-4)

Accuracy

  • Accuracy class: C (active energy EN50470-3) and three or two percent (reactive energy EN62053-23)

Communications Infrastructure
