S08SU16-EVK
-
S08SU16-EVK.
Kit contains:

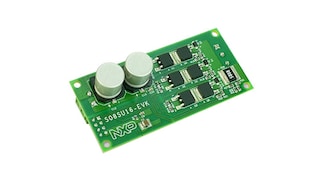

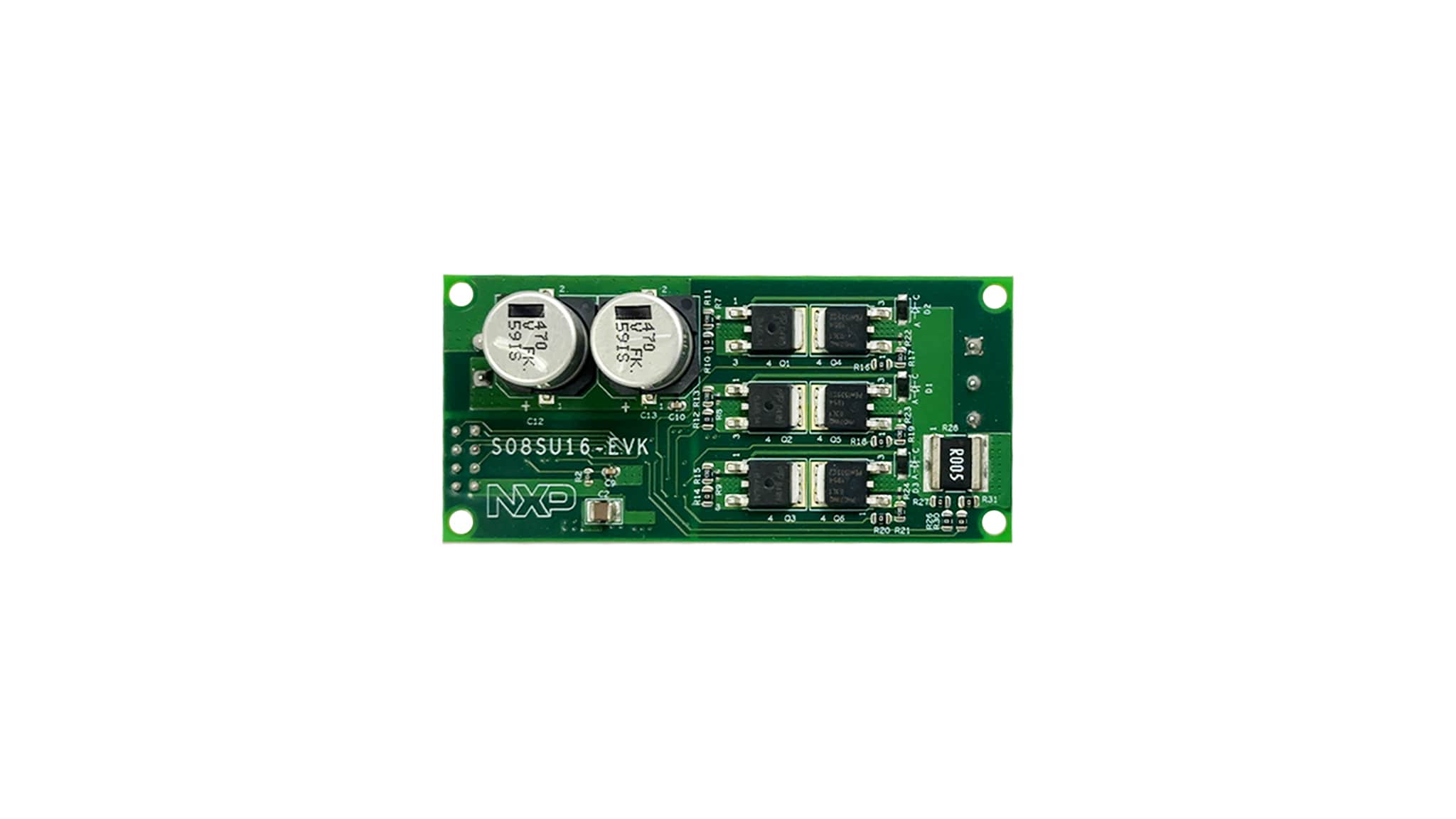

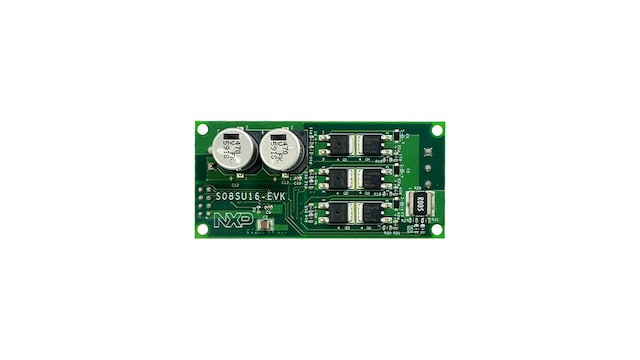

- Evaluation board
S08 Sensorless BLDC Control

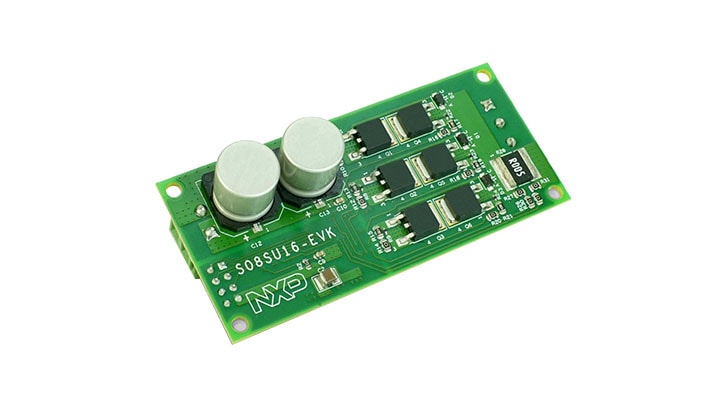

Sensorless BLDC control under ultra-high supply voltage (up to 18 V) is frequently required in many applications such as drone ESC and DC fan. This reference design is based on NXP's highly-integrated 8-bit S08 microcontroller MC9S08SU8/16. With its compact design, the BLDC control board can achieve great performance at a very low cost.
产品详情
支持的器件
处理器和微控制器
8位S08 MCU
- S08SU: 8位超高压电机控制SU MCU
Features
- Compact PCB design (80 x 37 mm)
- 3x P+N MOSFET pair
- Single PWM duty control
- 3x phase comparator for zero-crossing detection
- Over current/voltage protection (OCP and OVP)
-
Interfaces
- I2C
- SCI
- PWT
-
Debugging
- Real-time in-circuit debug through S08/RS08 or HCS12 BDM interface
- FreeMASTER debug tool
