TWR-ELEV
-
Tower System, Peripheral Module, Elevator Risers.
Kit contains:
- Primary functional elevator board
- Secondary functional elevator board

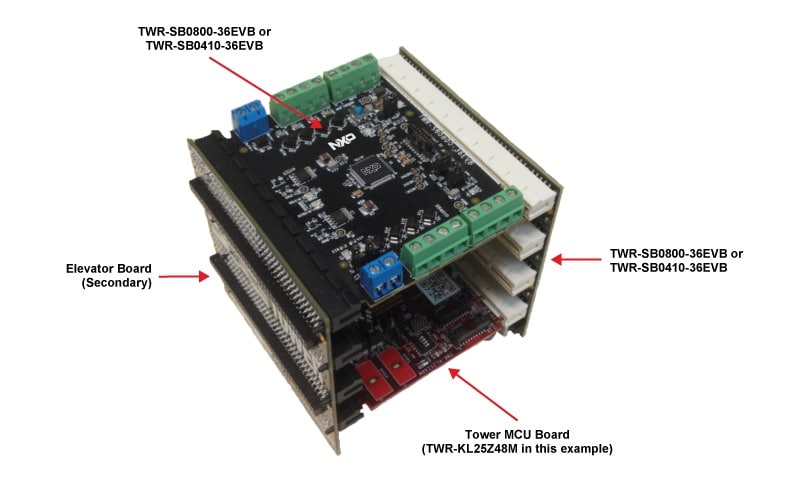

K Series Hydraulic/Pneumatic Valve Controller System

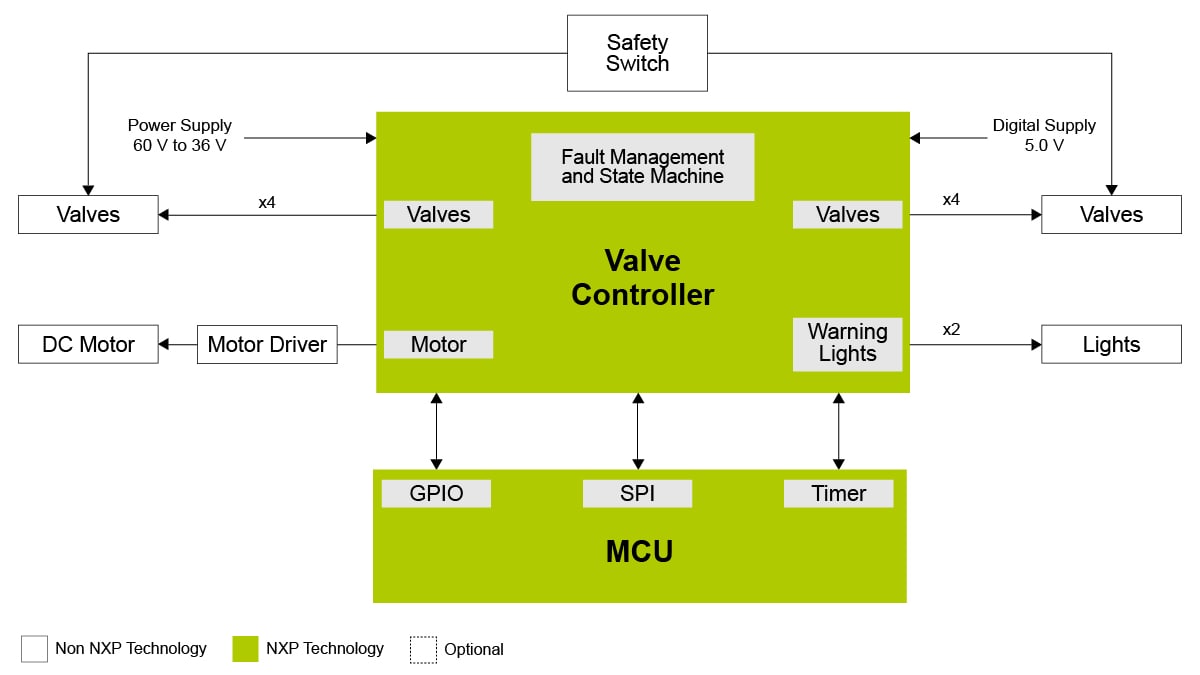

This valve controller system uses the SB0800 octal valve controller IC with an MCU and two power MOSFETs. The system can drive proportional and digital valves, as well as the system pump. Monitoring and protection features protect the system from hazardous events such as short circuit, over current or voltage and other abnormal conditions.
产品详情
支持的器件
处理器和微控制器
K2x / KS2x USB
- K20_72: Kinetis® K20-72 MHz，全速USB，混合信号集成微控制器(MCU)，基于ARM® Cortex®-M4内核
KL系列Cortex-M0+
- KL4x: Kinetis® KL4x-48 MHz，USB，段式LCD，超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核
电源管理
低边开关
- MC34SB0410: 4通道阀门控制器片上系统
- MC34SB0800: 8通道阀门控制器片上系统
Features
NXP Products
- Scalable valve controller portfolio from 2 to 12 valves with daisy-chain capability
- SB08000: 8 valves
- SB04010 and SB0420: 4 valves
- SB0421: 2 valves
- SB1200: 12 valves
Key Features
- Intuitive system set-up and code generation with Processor Expert tool
- Freemaster GUI available for real-time control and monitoring
- Flutter frequency implemented to prevent valve friction
- SW supports all Kinetis® MCU with Processor Expert or new Kinetis SDK2.0
- Integrated low side Power MOSFET drivers
- Integrated monitoring and safety state machine
- 5A drivers, 5kHz PWM, 2% accuracy
- High thermal efficiency
Safety
- Automatic power shut down upon general system fault
- Individual valve electric and temperature monitoring with flag
- Secured SPI communication with watchdog and challenger
购买选项
-
TWR-KL43Z48M
-
Tower System Development Board for Kinetis KL13, KL17/KL27 (128-256KB Flash), KL33 and KL43 MCUs.
Kit contains:
- TWR-KL43Z48M Tower System module
- TWRPI-SLCD Tower System plug-in module
- Two micro USB cables
- Quick Start Guide
-
TWR-SB0410-36EVB
-
Evaluation Kit - SB0410, Solenoid/High Side predrivers, 4 CH / 1, 36 V, 2.25 A for LSD, 225 mOhms, 5 kHz.
Kit contains:
- TWR-SB0410-36EVB board
-
TWR-SB0800-36EVB
-
Evaluation board - SB0800, Solenoid/High Side predrivers, 8 CH / 2, 36 V, 2.25 A for LSD.
Kit contains:
- TWR-SB0800-36EVB
-
TWR-K20D72M
-
Tower System Development Board for Kinetis K10 and K20 (72 MHz) MCUs.
Kit contains:
- TWR-K20D72M board with a K20DX256VLL7 (100 LQFP) 32-bit MCU
- DVD with IDE software and training materials
- Quick Start Guide
- 2 USB cables (micro, mini)
- USB adapter
- Battery
