KIT33816FRDMEVM：评估套件 - 33816，Freedom电路板KL25Z，喷油器

KIT33816FRDMEVM
正常供应

滚动图片以放大

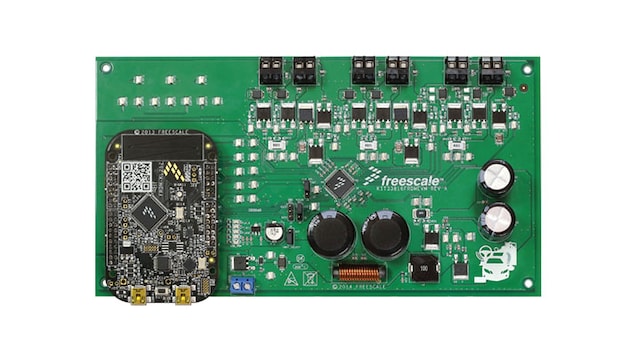

KIT33816FRDMEVM评估板(EVB)是一款易用的电路板，可让您练习使用恩智浦 MC33816直喷预驱动器电路的所有功能。借助用作SPIdongle的Freedom电路板FRDM-KL25Z，PC可通过USB与EVB通信。恩智浦SPIGen (7.1及更高版本)程序提供针对MC33816 SPI端口的用户接口，支持您对代码RAM和数据寄存器进行编程，发送命令到IC，并从IC接收状态。

产品详情

支持的器件

电源管理

动力和发动机控制

  • MC33816: 面向电磁控制的SD6可编程驱动器

处理器和微控制器

KL系列Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核

特征

KIT33816FRDMEVM特性

  • MC33816直喷预驱动器集成电路
  • 面向SPI通信和IO控制的FRDM-KL25Z
  • 电源调适电路
  • 用于控制4个喷油器和两个燃油泵的外部MOSFET
  • DC-DC控制
  • +12 V VBAT电源，为两个内部稳压器(VCCP和VCCP2.5)提供电源

MC33816特性

  • 电池电压范围，5.5 < VBATT < 32 V
  • 预驱动器工作电压最高为72 V
  • 高边/低边预驱动PWM可高达100 kHz (30 n库伦)
  • 所有预驱动器都有4个可选的压摆率
  • 8个可选的预定义VDS监控阈值
  • 用于保护微代码的加密功能

购买选项

KIT33816FRDMEVM-Image

点击展开

  • KIT33816FRDMEVM
    正常供应

  • Evaluation Kit - MC33816, SD6 Programmable Solenoid Controller with Freedom KL25Z.

    • KIT33816FRDMEVM硬件
    • FRDM-KL25Z硬件(预编程)
    • 线缆，USB A-M至B-M Mini
    • 快速参考指南
  • $349.60 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 3
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
