KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board

KITPF5302FRDMEVM

滚动图片以放大

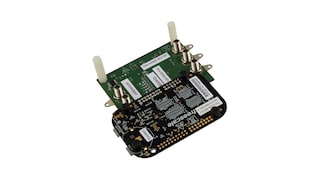

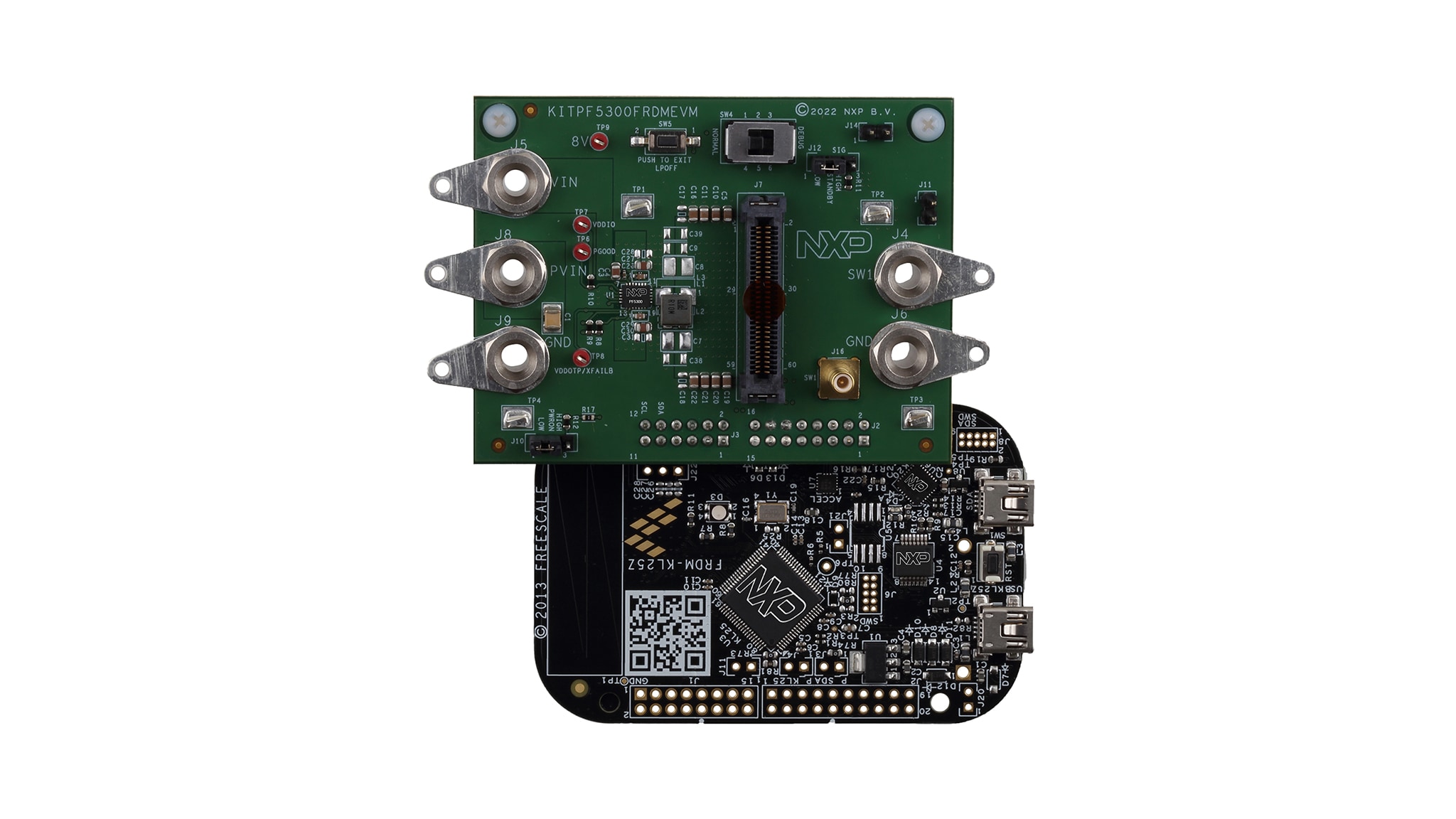

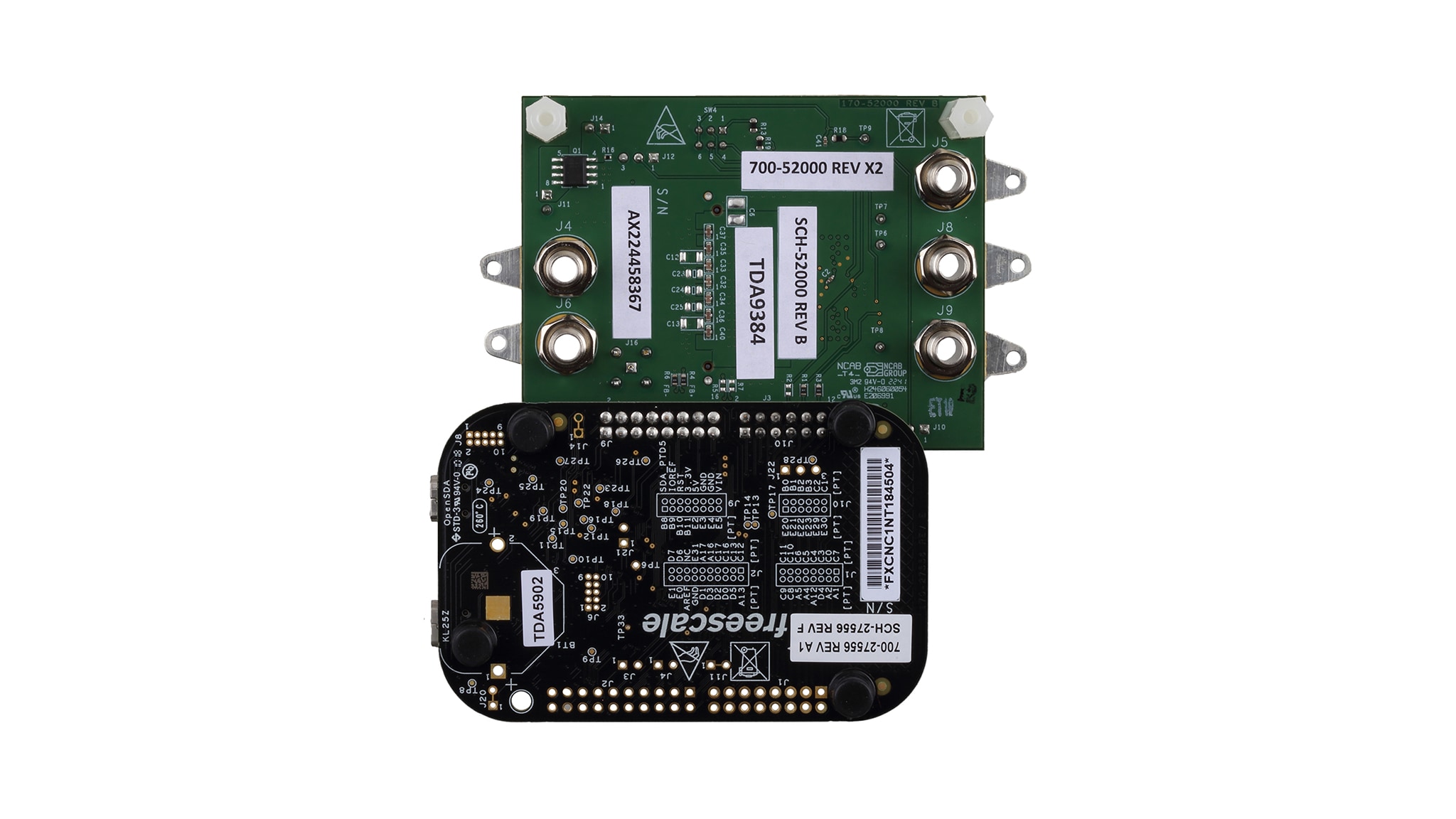

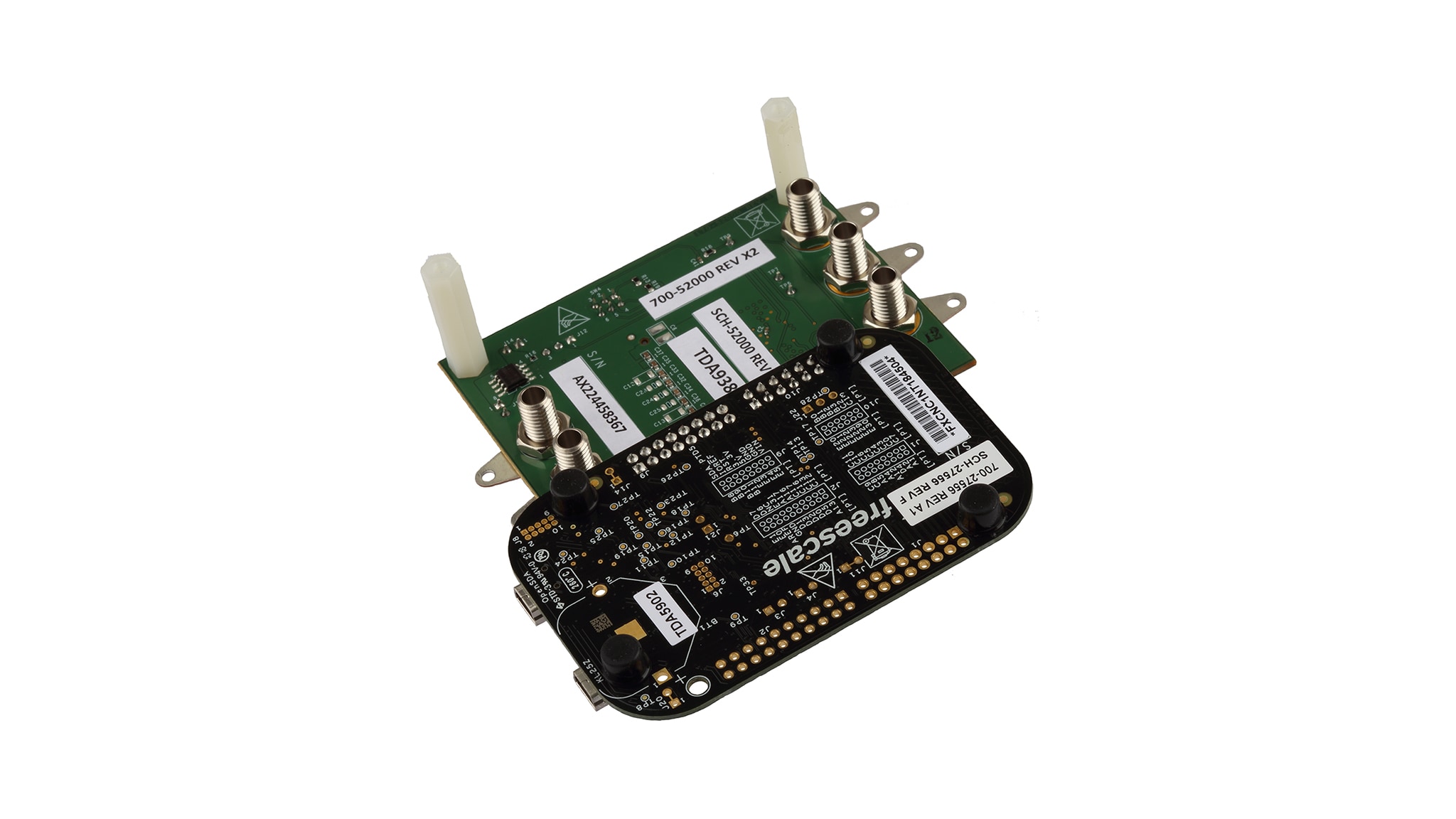

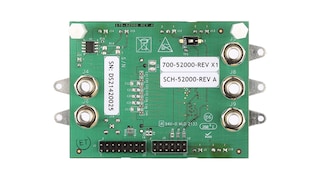

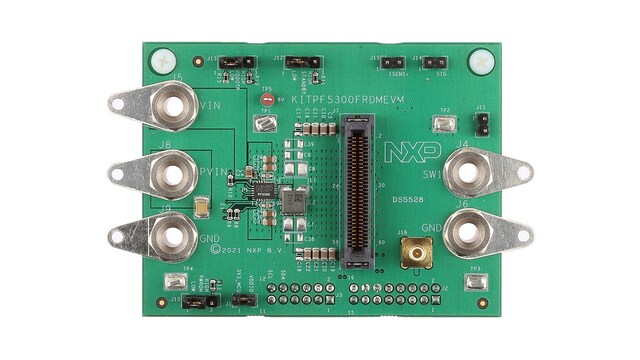

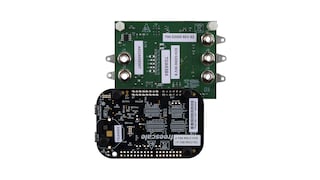

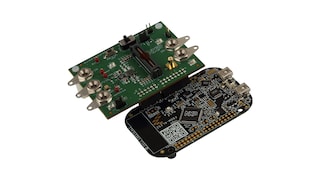

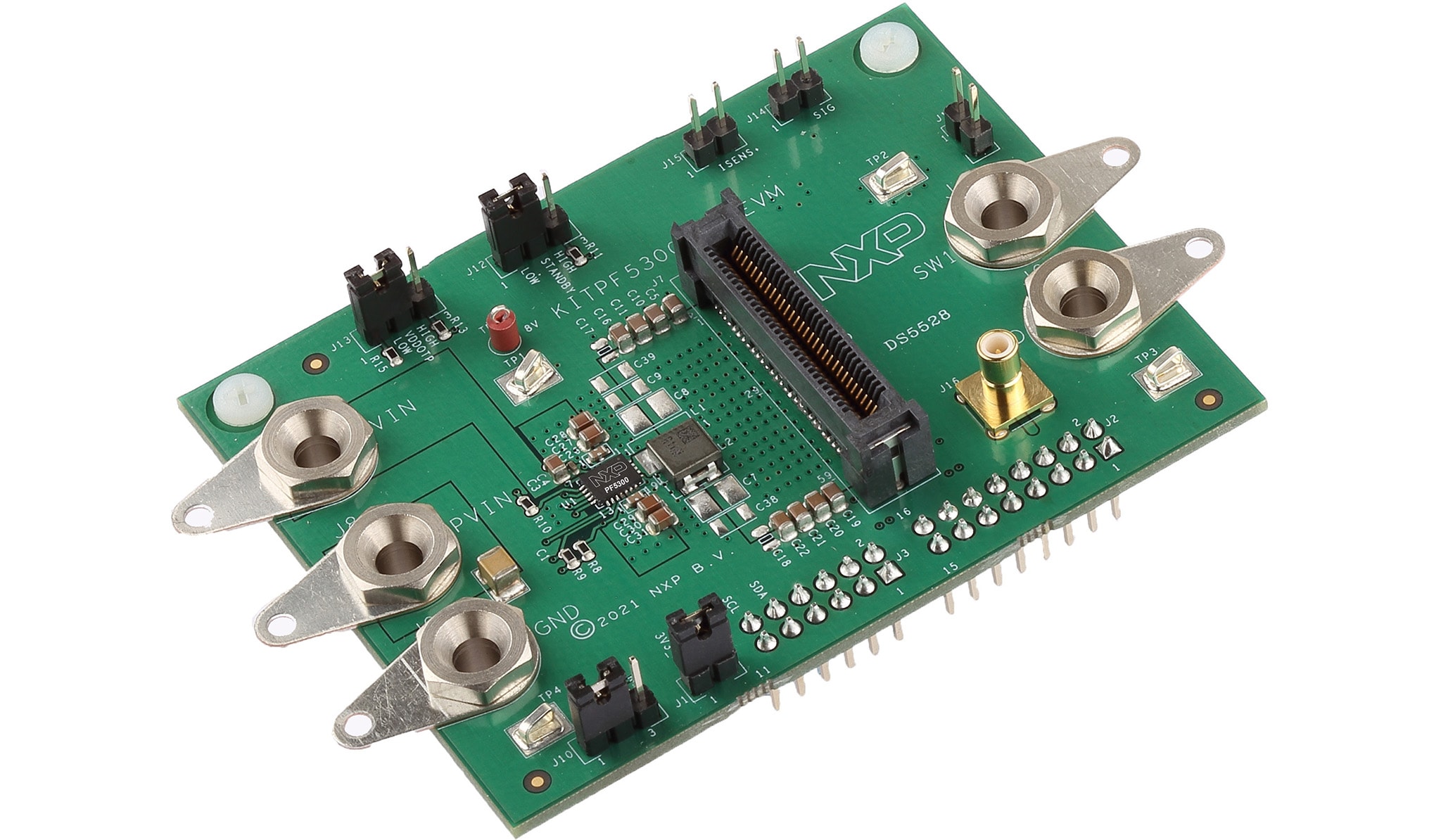

The KITPF5302FRDMEVM is a customer evaluation board/kit featuring the PF5302 core regulator IC.

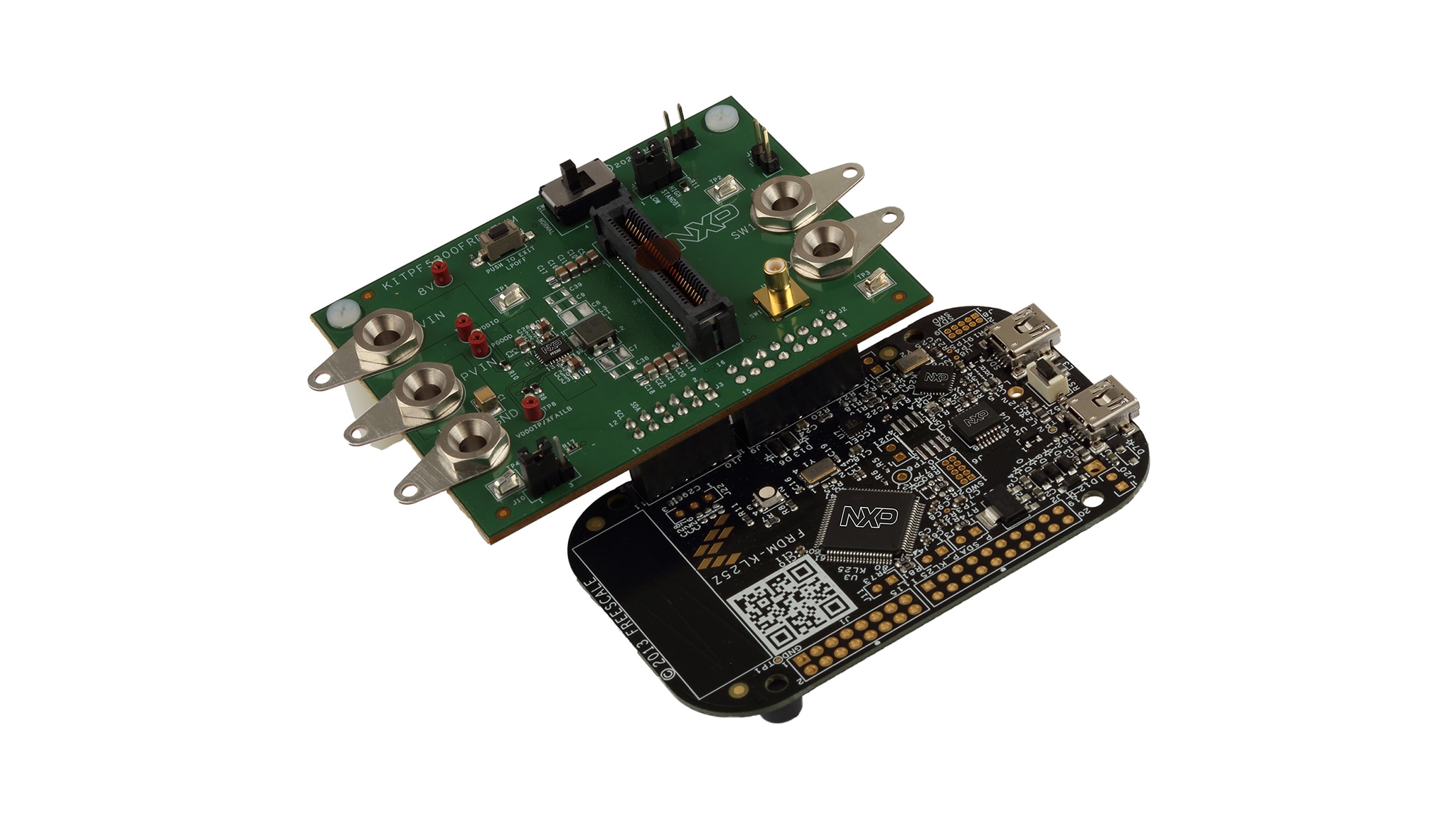

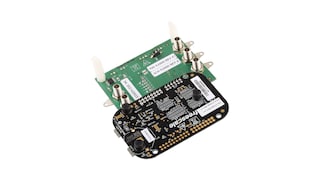

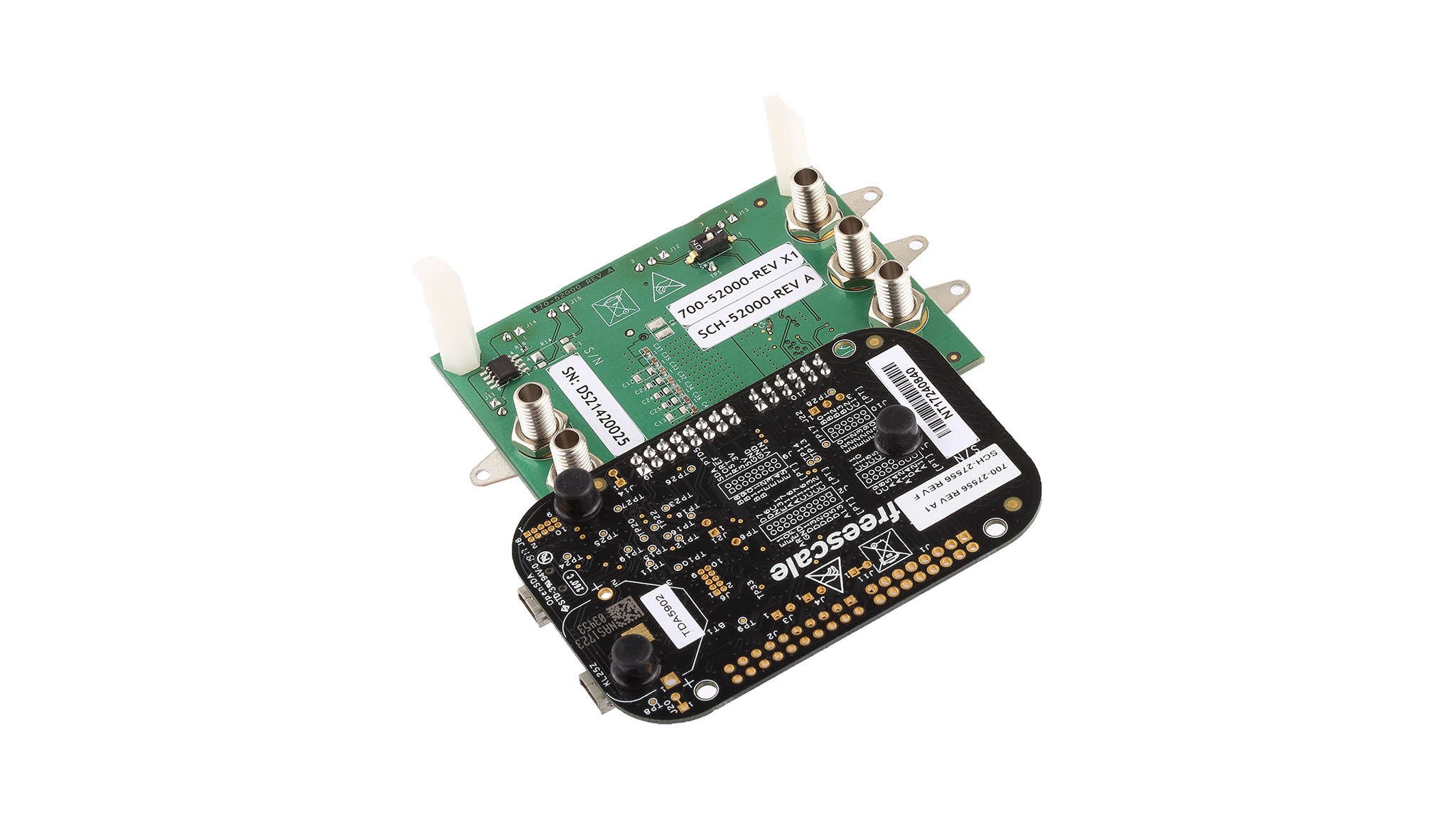

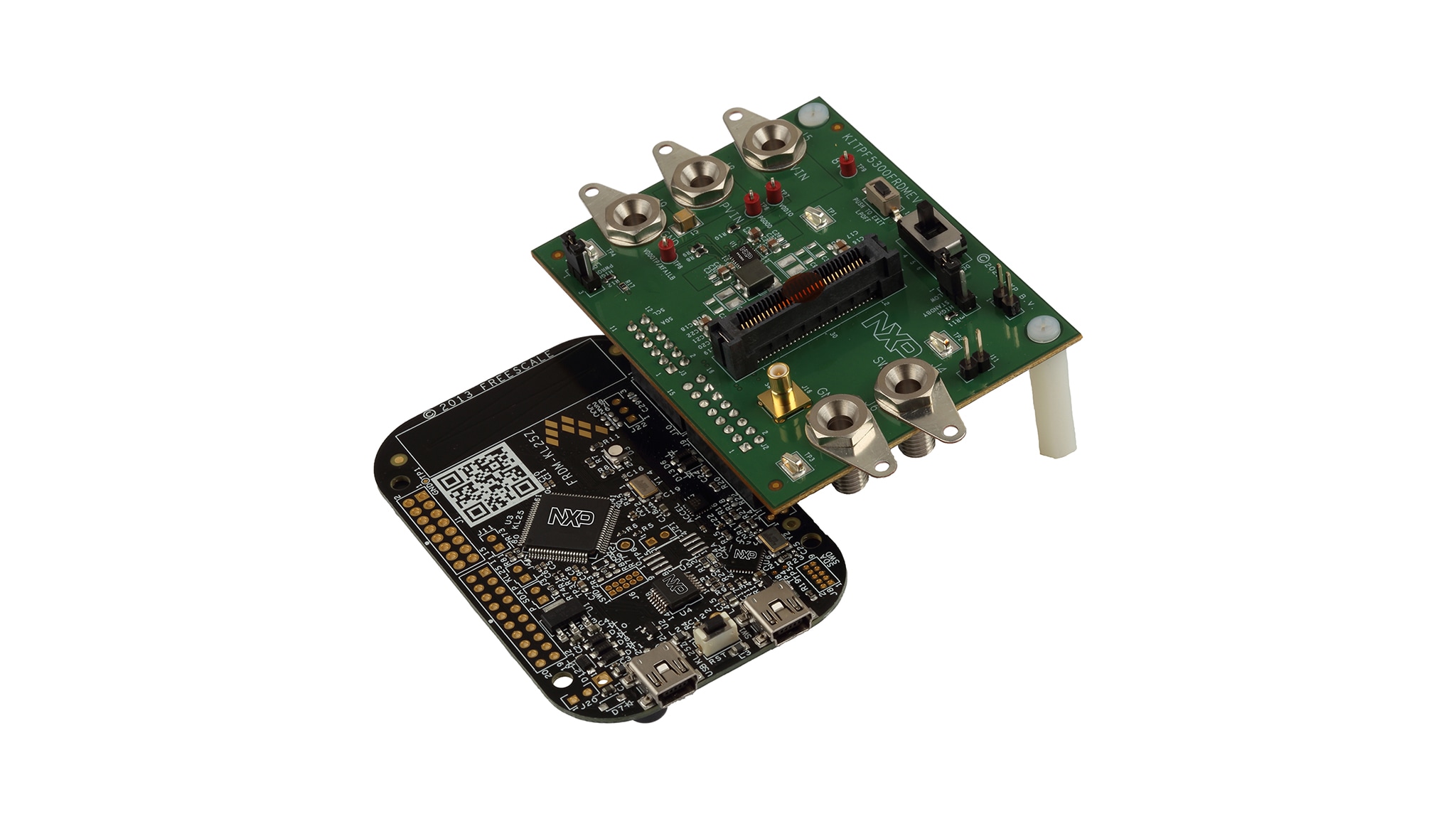

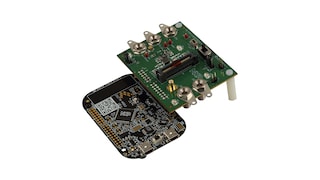

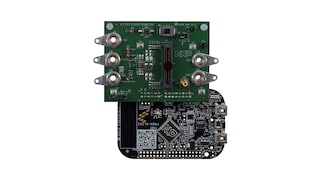

The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication interface based on the FRDM-KL25Z freedom board to interface with the NXP GUI software to fully configure and control the PF5302 PMIC. It can also be used to evaluate the PF5300 and PF5301.

支持的器件

电源管理

PMIC

  • PF53: 带AVP和看门狗的12A/8A/15A内核电源稳压器

Features

PMICs

  • PF5300
  • PF5301
  • PF5302

Features

  • High current core supply
  • OTP programmable
  • Fit up to ASIL D level

Connectivity

  • High-speed I²C through KL25Z

Jumpers and Switches

  • PMIC enable and IO control

购买选项

KITPF5302FRDMEVM-Image

点击展开

  • KITPF5302FRDMEVM
    正常供应

  • KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller
    • 3.0 ft USB-STD A to USB-B-mini cable
    • Jumpers mounted on board
  • CNY 1,267.71
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
