评估套件 - MC33932EK，双通道5A油门控制

KIT33932EKEVBE
正常供应

滚动图片以放大

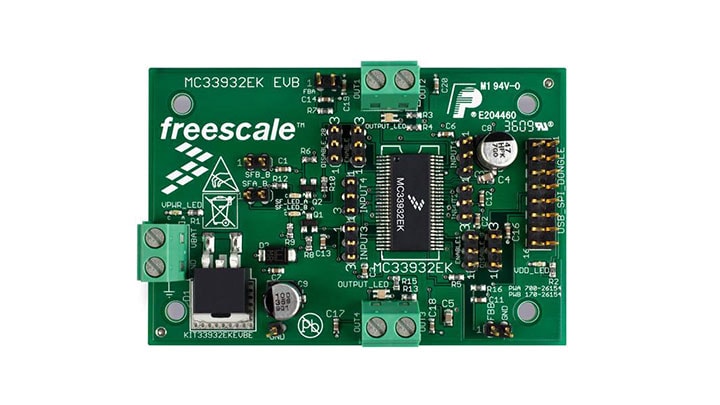

该评估套件面向恩智浦MC33932EK。MC33932EK是一款单片式H桥电源IC，采用耐用的热增强型封装。

MC33932在同一封装中配备两个独立的单片集成式H桥电源IC，主要针对汽车电子油门控制而设计，但也能用于电流和电压规格范围内的任何低压DC伺服电机控制应用。

该评估套件可与KITUSBSPIDGLEVME配合使用。

产品详情

支持的器件

电源管理

BLDC，H桥，步进电机

  • MC33931: H桥有刷直流电机驱动器，5-28V，5A，11kHz

动力和发动机控制

  • MC33932: H桥电机驱动器, 5-28 V, 5 A, 11 kHz

特征

连接

  • 3.0 V和5.0 V TTL / CMOS逻辑兼容输入

电源管理

  • 8.0至28 V连续工作电压(瞬态电压范围为5.0至40 V)
  • 输出短路保护(短接至VPWR或GND)
  • 通过内部恒定关断时间PWM进行过流限制(调节)
  • 与温度有关的电流限制阈值下降
  • 睡眠模式下电流消耗小于50 µA (每个H桥)
  • 150°C时最大导通电阻为235 mΩ @ (每个H桥MOSFET)
  • 所有输入均有一个内部源/汇点来定义默认(浮动输入)状态

购买选项

KIT33932EKEVBE-Image

点击展开

  • KIT33932EKEVBE
    正常供应

  • Evaluation Kit - MC33932EK, Dual 5.0 A Throttle Control H-Bridge.

    • KIT33932EKEVBE硬件
    • 快速参考指南
  • $92.46 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
