评估套件 - MC17XS6500，五通道高边开关

KIT17XS6500EVB
试生产

滚动图片以放大

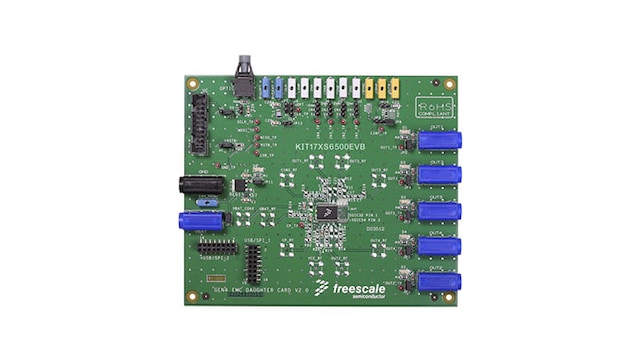

恩智浦KIT17XS6500EVB是一种用于评估和开发的硬件工具。该评估板可用于评估MC17XS6500。MC17XS6500是一个12 V 5通道高边器件，拥有灵活性很高的集成控制和大量的保护和诊断功能。
该器件用于低电压汽车照明应用，可以驱动包括LED在内的广泛照明源。编程、控制和诊断通过16位SPI接口实现，从而能够支持大量的配置、诊断和保护功能。

产品详情

支持的器件

电源管理

高边开关

  • MC12XS6: 外部汽车照明多通道eXtreme开关

特征

评估模块特性

  • This evaluation board consists of an MC17XS6500 IC in a 32-pin SOICW-EP with exposed pads
  • 该评估板可以控制
    • 5个独立的28 W灯泡
    • 5个独立的LED模块
    • 5个独立的其他类型负载
  • Device can be driven by the 16-bit SPI using KITUSBSPI with SPIGen software or with direct input signals in Fail-safe mode operation. It also offers the possibility to apply an external clock in order to drive outputs in PWM operation

MC17XS6500 features

  • 5通道17 mOhm高边开关，具有高瞬态电流能力
  • 16位5.0 MHz SPI过流特征曲线控制，通道控制包括：PWM占空比、输出ON和OFF开路负载检测、过热关断和预警以及错误报告
  • 输出电流监控，带可编程同步信号和电池电压反馈
  • 跛行回家模式
  • 外部智能电源开关控制
  • 工作电压范围为7.0至18 V，睡眠电流< 5.0 μA，电压范围可扩展为6.0至28 V
  • -16 V反极性和接地断开保护
  • 该系列采用可兼容的PCB规格和SPI软件驱动
